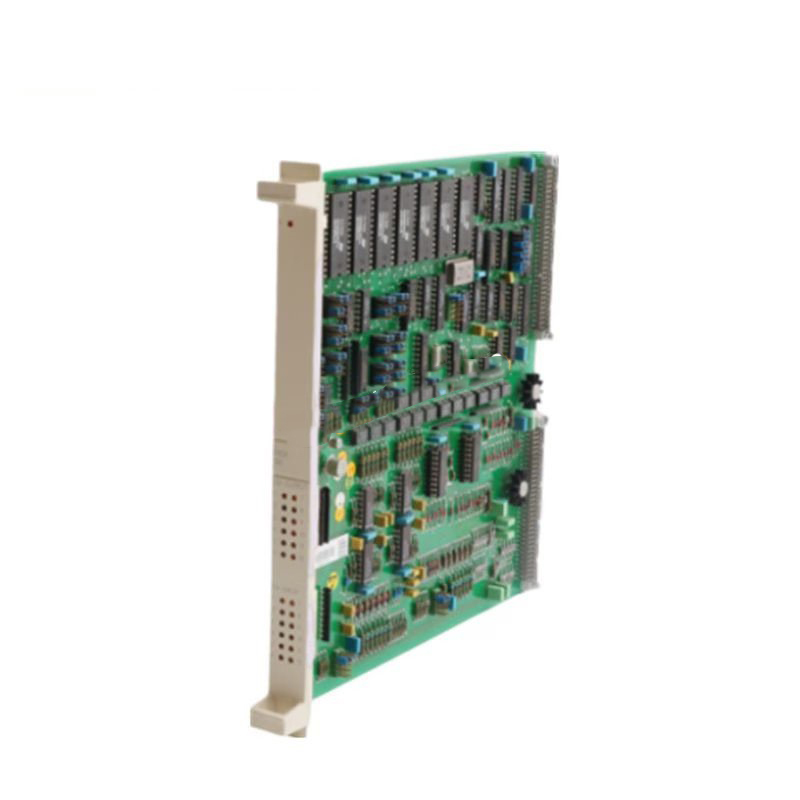

The DSDP 150 Pulse Encoder Input Unit is designed for pulse counting and frequency measurement applications. It operates at a 12 V DC input and supports pulse generators with frequencies up to 10 kHz.

Technical Specifications

• Input Voltage: 12 V DC
• Functionality: Supports pulse counting and frequency measurement
• Frequency Range: Up to 10 kHz
• Compatibility: Suitable for pulse generators
• Environmental Compliance: RoHS compliant per EU Directive 2011/65/EU
• WEEE Category: 5 (Small Equipment, no external dimension exceeding 50 cm)

Product Dimensions

• Net Depth/Length: 360 mm
• Net Height: 15 mm
• Net Width: 250 mm
• Net Weight: 0.425 kg

Additional Information

• Product Type: I/O Module
• Catalog Description: Pulse Encoder Input Unit for 12 V DC
