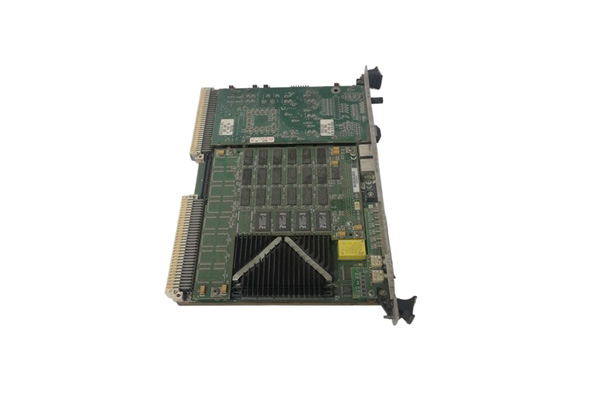

The Motorola MVME2604 series, including models like the MVME2604761, represents a range of rugged single-board computers (SBCs) designed for embedded applications, particularly those requiring robust I/O capabilities and reliable performance in harsh environments. Here’s an overview of its I/O capabilities and general features:

Processor

– The MVME2604 typically has a PowerPC processor, which provides strong performance levels while being power efficient.

Memory

– It supports a range of memory options, often including onboard RAM and non-volatile Flash memory.

– Common configurations could range from several megabytes of RAM to larger configurations based on application requirements.

I/O Interfaces

– The MVME2604/I, including model MVME2604761, tends to have a variety of I/O options:

– Serial Ports: Multiple RS-232 or RS-422 serial ports for communication with peripheral devices.

– Ethernet: Usually includes Fast Ethernet (10/100BASE-T) support for network connectivity.

– Parallel Ports: May support parallel communications for devices requiring higher data throughput.

– SCSI/IDE Interfaces: Options for connecting storage devices.

– Digital and Analog I/O: Depending on configuration, it may include digital I/O lines and/or analog inputs for various applications.

– Expansion Slots: Additional slots for specific I/O cards or modules, providing flexibility for application needs.

Operating Systems

– The MVME2604 series can operate under various real-time operating systems (RTOS) and possibly Unix-like environments, depending on user needs.

Environmental Resilience

– Designed with industrial and military applications in mind, the MVME2604 boards are typically built to withstand extreme temperatures, vibrations, and other challenging conditions.

Applications

– The MVME2604 series, including the MVME2604761, is employed in various applications such as:

– Embedded control systems

– Data acquisition systems

– Telecommunications infrastructure

– Aerospace and defense systems

Recommendations

– Consult Documentation: For precise I/O specifications and capabilities, including pinouts and circuit details, refer to the official user manual or technical datasheets.

– Compatibility Checks: When integrating with existing systems or peripherals, confirm that the I/O specifications align with your equipment.

– Vendor Support: For purchasing, troubleshooting, or technical support, reaching out to NXP Semiconductors (Motorola has merged and their products are now part of NXP) or their authorized distributors is advisable.
