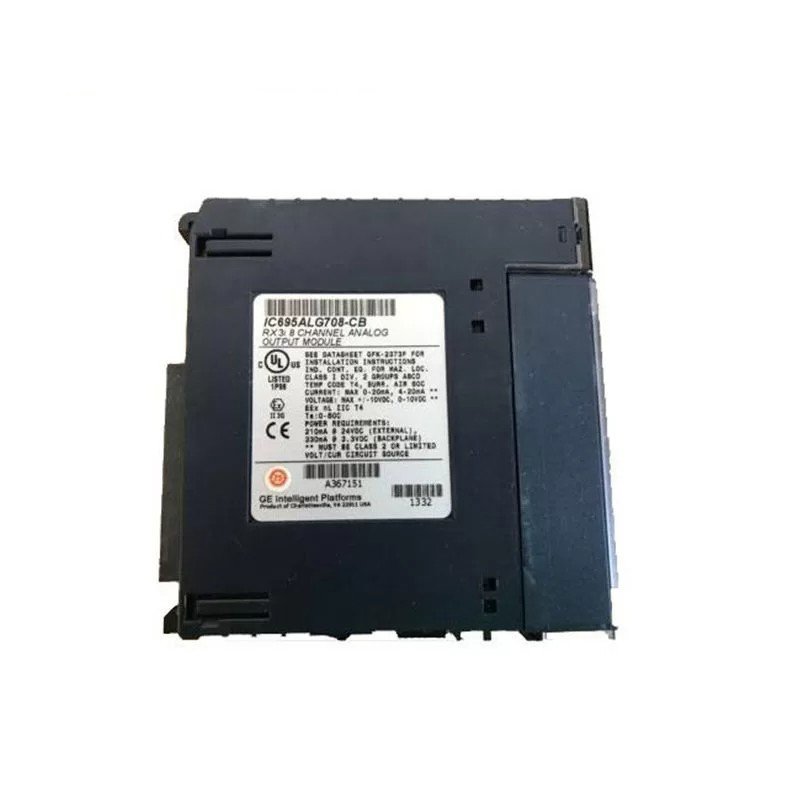

The GE Fanuc IC695ALG708 is an 8-channel, non-isolated analog output module designed for the GE Fanuc RX3i Series. This module excels in industrial automation systems by providing precise control over various analog processes.

Key Features and Specifications

• 8-Channel Capability: Control eight different analog outputs simultaneously. This feature enhances efficiency in multi-variable processes.
• Non-Isolated: While offering cost benefits, this design may increase the potential for noise interference in the system.
• Voltage/Current Output: Configure the module for both voltage and current outputs. This flexibility ensures compatibility with a wide range of devices and sensors.
• Configurable Ranges: Set the voltage range to 0 to +10V or -10 to +10V. For current, configure it to 0 to 20mA or 4 to 20mA.
• High Update Rate: Achieve real-time control with an update rate of 8 milliseconds. This ensures responsiveness in dynamic processes.
• Low Power Consumption: The module operates with low power consumption, enhancing energy efficiency.
• Compact Design: Integrates seamlessly into the standard RX3i system’s universal backplane. This design optimizes space utilization.

Applications

The IC695ALG708 is ideal for various industrial applications:

• Process Control: Regulate temperature, pressure, flow rate, and other process variables.
• Motor Control: Manage motor speed and torque with precision.
• Data Acquisition: Convert analog signals from sensors into digital values for further analysis.
• Testing and Calibration: Provide accurate analog outputs for testing and calibration purposes.

Benefits

• Flexibility: Adaptable to a variety of applications due to its configurable nature.
• Reliability: Built to perform robustly in demanding industrial environments.
• Ease of Use: Integrates effortlessly into the RX3i system, simplifying setup and operation.
• Cost-effective: The non-isolated design reduces overall costs while maintaining performance.

Technical Specifications

• Voltage Range: 0 to +10V, -10 to +10V
• Current Range: 0-20mA, 4-20mA
• Update Rate: 8 milliseconds
• Power Consumption: 375 mA @ +3.3VDC, 315 mA @ +24VDC
