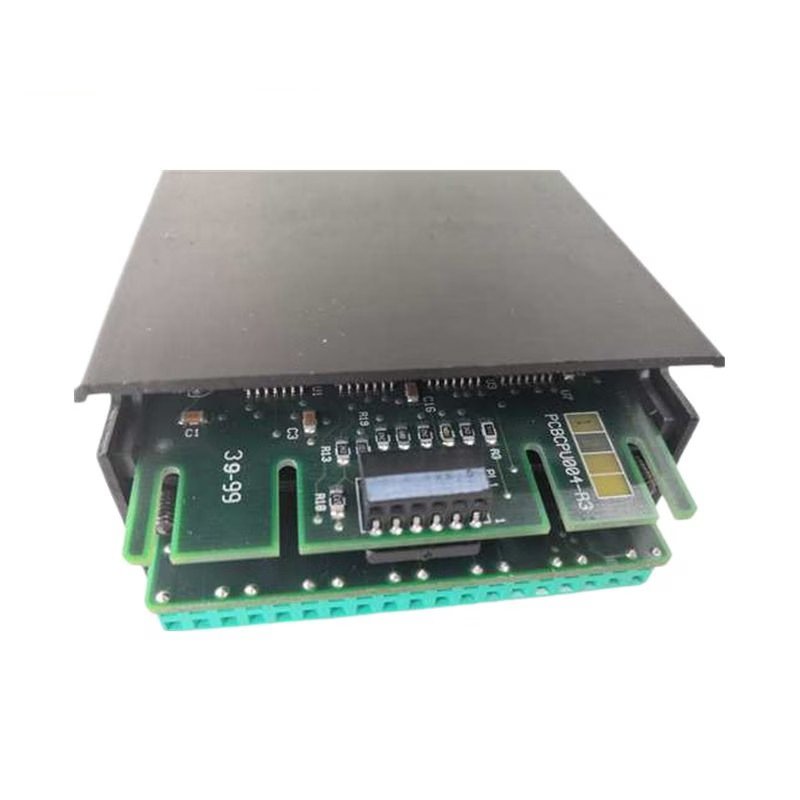

The GE Fanuc HE670ADC830 is an analog input module designed for integration with GE Fanuc Field Control systems. It provides eight analog input channels, offering a 12-bit resolution for precise analog-to-digital conversion. The module ensures reliable operation with isolation levels of 400VDC channel-to-channel and 1000VDC channel-to-ground, making it ideal for use in demanding industrial environments. It supports voltage input signals in the range of 0 to 10 VDC and is powered by a 24VDC supply.

Technical Specifications

• Model Number: GE Fanuc HE670ADC830
• Type: Field Control Analog Input Module
• Number of Channels: 8
• Resolution: 12-bits (11 bits plus sign)
• Channel-to-Channel Isolation: 400VDC
• Channel-to-Ground Isolation: 1000VDC
• Operating Temperature: 0°C to 75°C
• Relative Humidity: 5% to 95%, non-condensing
• Input Impedance: 1 MΩ
• Input Power: 24VDC ±10%
• Power Consumption: 130mA from backplane
• Output Format: Set by BIU, typically 10V = 10,000 counts
• Range: Selectable by the BIU, either 0 to +10VDC or -10V to +10VDC
• Maximum Error at 25°C: ±0.1% Full Scale
