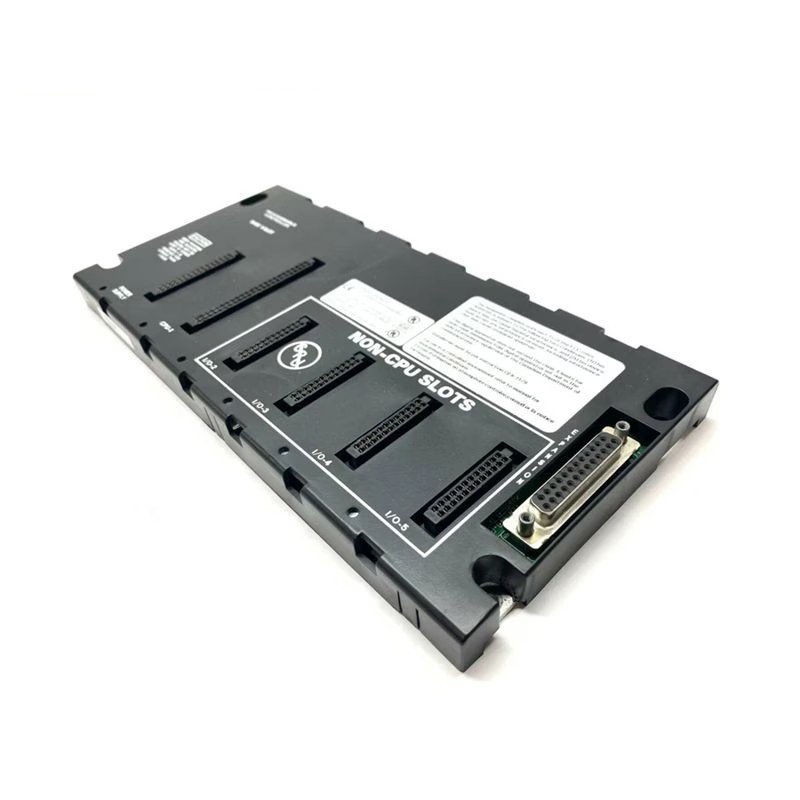

The GE Fanuc IC693CHS397K is a 5-slot modular CPU baseplate designed for the Series 90-30 programmable logic controller (PLC) system. It provides a flexible and scalable foundation for building and expanding industrial automation systems. This baseplate accommodates the CPU, power supply, and various I/O or special function modules, offering a robust platform for complex automation tasks. Its modular design allows for easy configuration and future system expansion, making it suitable for a variety of industrial environments.

Technical Specifications

• Module Type: CPU I/O Baseplate
• Baseplate Option: Main (with CPU slot)
• Number of Slots: 5
• Dimensions: 10.43 x 5.12 x 5.59 inches (W x H x D)
• Internal Power Consumption: 270 mA @ 5 VDC
• Communication Options: Ethernet, Genius, Series 90 Protocol (SNP), RTU
• Expansion Connector: 25-pin D-type female connector for expansion or remote baseplates
• Maximum Expansion Cable Length: 50 feet (15 meters)
• Expansion Baseplate: Supported
• Bus Voltage: +5 VDC
• Mounting: Panel mounting
