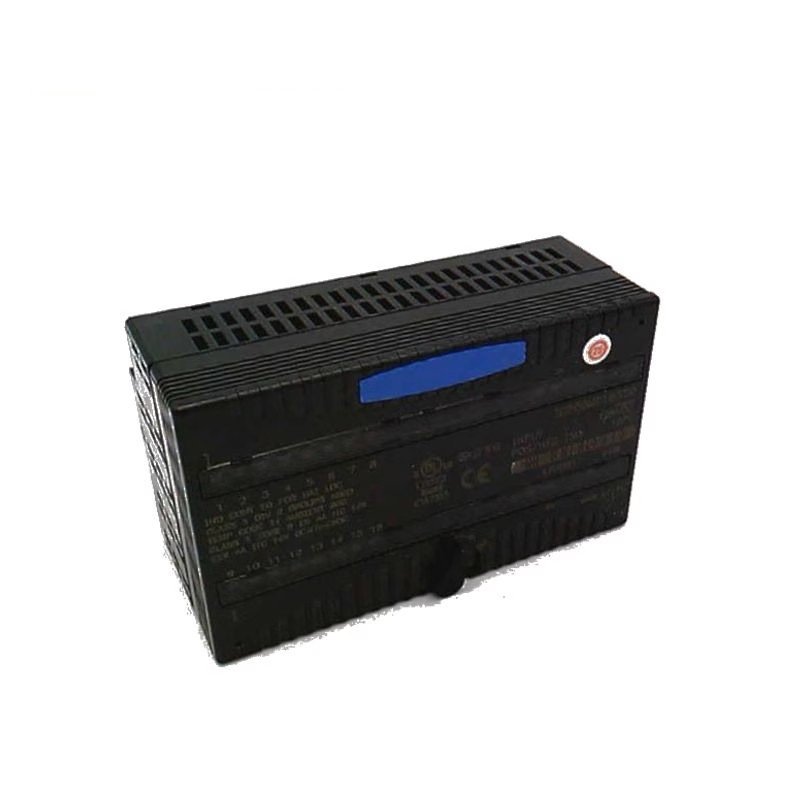

GE Fanuc IC200MDL632A Discrete Input Module

The GE Fanuc IC200MDL632A is a discrete input module designed for use within the VersaMax PLC series. It provides 16 isolated input channels to interface with various field devices like sensors, switches, and pushbuttons in industrial automation systems. The module is known for its flexibility, supporting both positive and negative logic configurations. Its key features, such as electrical isolation, LED indicators, and wide voltage range, make it ideal for manufacturing, process control, packaging, and material handling applications.

Technical Specifications

• Input Type: 16 discrete isolated inputs
• Input Logic: Supports both positive and negative logic configurations
• Input Voltage: 0 to +150VDC, with a nominal voltage of +125 VDC
• Input Current:
  • 1.7mA typical at 125VDC
  • 2.2mA typical at 150VDC
• Input Impedance: 74K ohms typical at 125VDC
• On State Voltage: 90VDC to 150VDC
• Off State Voltage: 0VDC to 30VDC
• On State Current: Minimum 1.0mA
• Off State Current: Maximum 0 to 0.1mA
• Response Time: 0.5 ms for basic on/off state
• Isolation:
  • 250VAC continuous
  • 1500VAC for 1 minute (user input to logic and frame ground)
• LED Indicators: Individual green LEDs indicate the on/off state of each input
• Backplane Power Consumption: 80mA maximum
• Operating Temperature: -25°C to 85°C
• Protection Class: IP20
• Weight: 0.5 kg
