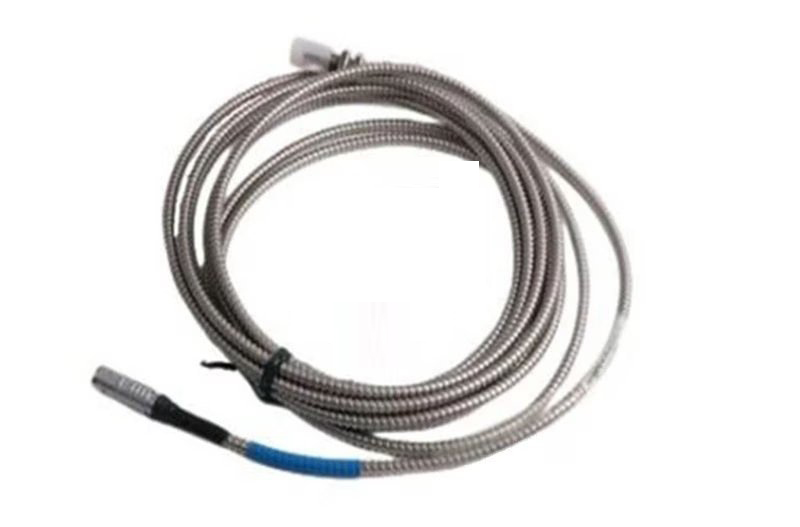

Epro CON021/PR6423/010-010 Eddy Current Displacement Sensor
Product Number: CON021 + PR6423/010-010
Category: Eddy Current Displacement Sensor System
Sensor Type: Non-contact eddy current displacement sensor (PR6423)
Converter: CON021 signal converter
Probe Length: 1.0 meter (specified by -010)
Cable Length: 1.0 meters (specified by second -010)
System Compatibility: MMS 3000/6000 monitoring systems
Application: Shaft vibration, radial position, axial thrust measurement
Product Description
The EPRO CON021/PR6423/010-010 is a combined solution of an Eddy Current Displacement Sensor (PR6423/010-010) and a Signal Converter (CON021). This system is specifically designed for precise non-contact measurement of shaft displacement, vibration, and position in critical turbomachinery applications.
PR6423/010-010 (Eddy Current Displacement Sensor)
Measuring Range: 2 mm
Sensitivity: 8 V/mm
Nominal Gap: 1.5 mm
Target Material: Electrically conductive steel
Operating Temperature: -35°C to +180°C (-31°F to +356°F)
Environmental Protection: IP66
CON021 (Signal Converter)
Frequency Range: 0–20 kHz (-3 dB)
Output Signal: Configurable (e.g., 4–20 mA, voltage)
Power Supply: -23 V to -32 V DC
Operating Temperature: -30°C to +100°C (-22°F to +212°F)
Protection Class: IP20
Material: LMgSi 0.5 F22
Dimensions and Weight
Dimensions: 25 cm × 17 cm × 4 cm
Weight: 0.45 kg
