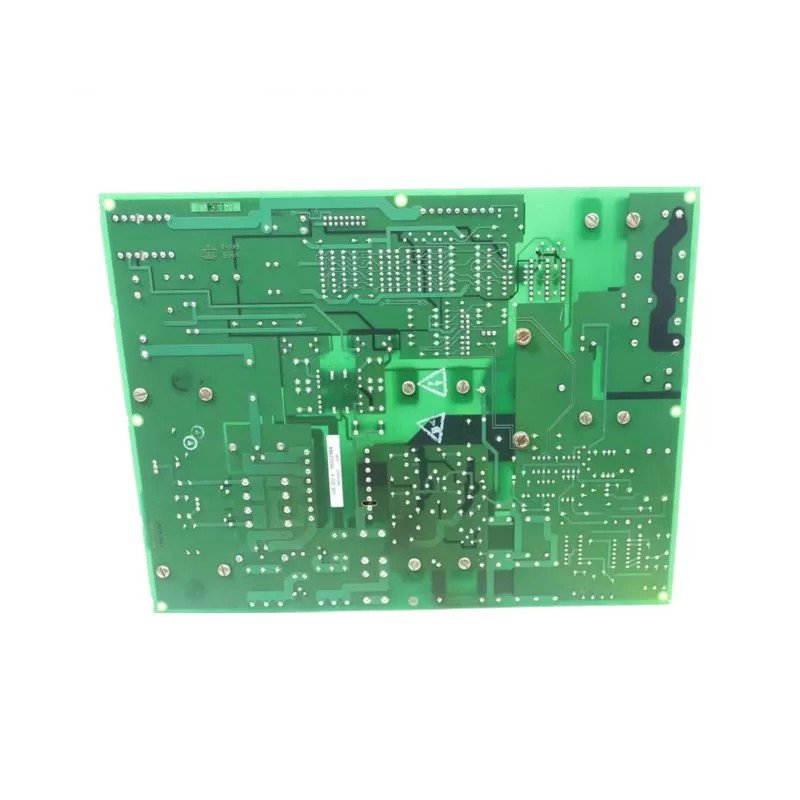

GE Fanuc DS200TCPSG1ARE Power Supply Input Board

The GE Fanuc DS200TCPSG1ARE Power Supply Input Board is essential in the GE Fanuc DS200TC series of programmable logic controllers (PLCs). It ensures the PLC receives the necessary power for its internal operations.

Features

• Input Voltage: Accepts a range of 100-240 VAC.
• Output Voltage: Delivers a regulated DC voltage, typically 5V, to power the PLC’s internal components.
• Protection: Includes mechanisms for overvoltage, undervoltage, and short-circuit protection to enhance reliability and safety.
• Cooling: Features such as a fan or heat sink help dissipate heat during operation.
• Indicators: Equipped with LED indicators for visual feedback on board status and potential issues.

Functions

• Power Supply: Supplies the primary power for the PLC, enabling the operation of the CPU, memory modules, and I/O modules.
• Voltage Regulation: Converts input voltage to a stable DC output, ensuring consistent power delivery to PLC components.
• Protection: Safeguards the PLC and its components against abnormal conditions to prevent damage.
• Cooling: Maintains optimal temperatures for PLC components, preventing overheating and potential failures.

Applications

• Industrial Automation: Widely used in manufacturing, process control, and machinery control.
• Machine Control: Powers control systems for machines like robots, CNC machines, and packaging equipment.
