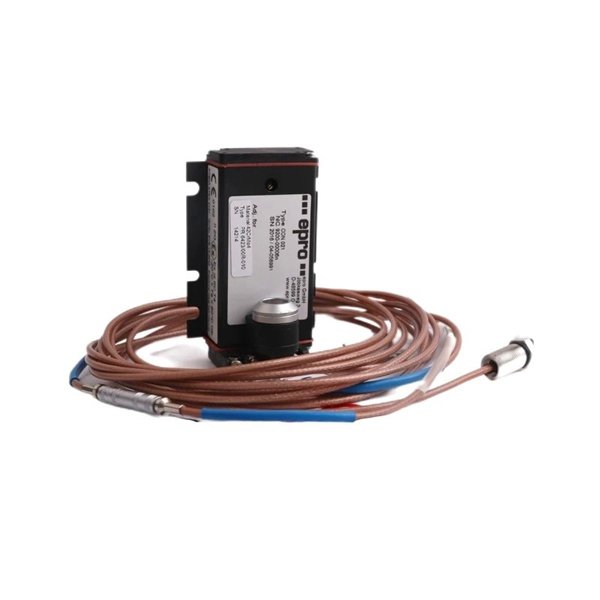

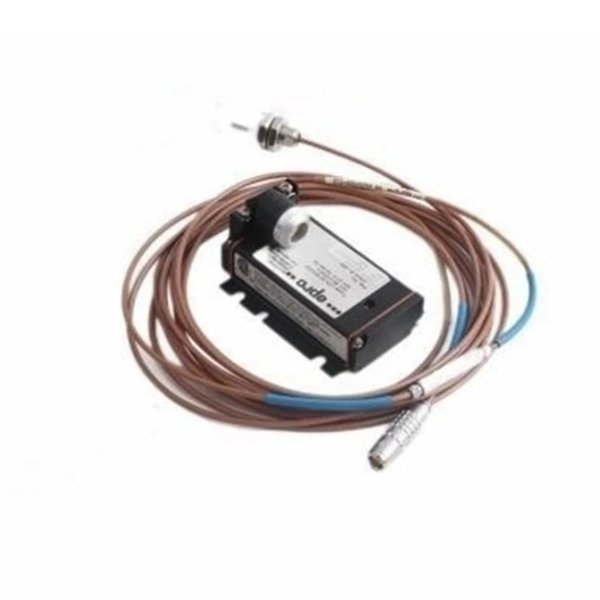

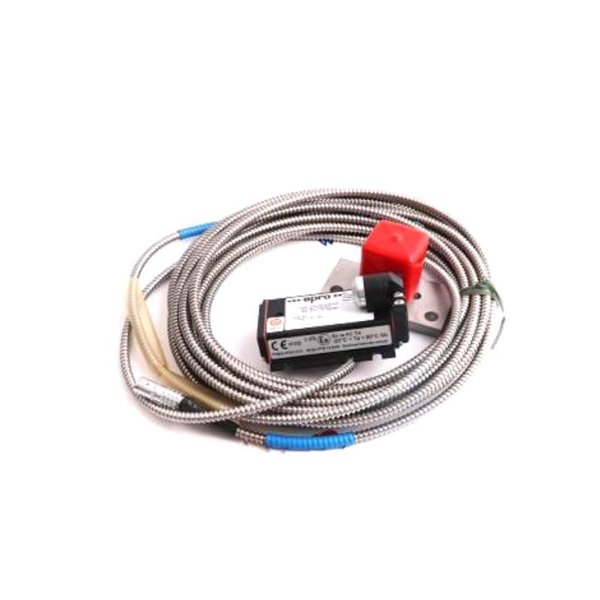

The Epro PR6424/113-000 is a 16mm eddy current sensor designed to provide precise, non-contact measurement of displacement, vibration, and position within high-performance industrial applications. It operates based on the principle of eddy current technology, where an oscillating magnetic field induces eddy currents in the target material. The sensor then detects variations in these currents, which are proportional to the distance between the sensor and the target.

This sensor is widely used in applications requiring high accuracy, such as machine condition monitoring, vibration analysis, displacement measurement, and position sensing in industries like power generation, automotive, aerospace, and manufacturing. The PR6424/113-000 provides high resolution, high frequency response, and robust performance in demanding environments, making it an ideal choice for both static and dynamic measurements.

Product Specifications

Applications

The Epro PR6424/113-000 eddy current sensor is used in a wide range of industrial applications where precise, non-contact measurements are crucial. Some common applications include:

• Condition Monitoring: Used for continuous monitoring of machinery and equipment, detecting early signs of wear, misalignment, and vibration.

• Vibration Measurement: It measures displacement in rotating equipment, enabling users to monitor and control vibrations in critical components like motors, bearings, and generators.

• Position and Displacement Sensing: Used in automated systems to monitor the position of sliders, pistons, and actuators.

• Non-Contact Measurement: Ideal for use in high-speed machinery where contact-based sensors cannot be used due to mechanical wear or risk of damage.

• Power Generation: Helps monitor turbines, pumps, and other rotating equipment, ensuring optimal performance and preventing failures due to excessive vibrations or misalignments.

• Aerospace and Automotive: Used in testing equipment to measure displacement and positioning during component assembly and manufacturing processes.

Product Advantages

• Non-Contact Measurement: The PR6424/113-000 uses eddy current technology, ensuring there is no physical contact with the target, which prevents wear and damage, especially in high-speed applications.

• High Accuracy: The sensor offers ±0.1% accuracy, ensuring precise measurements for applications that require high levels of precision.

• Robust Design: Built with stainless steel and corrosion-resistant materials, the sensor is designed to withstand harsh industrial environments, including high temperatures up to 80°C.

• High Frequency Response: The sensor is capable of high-frequency measurements, making it ideal for dynamic applications, such as vibration monitoring.

• Versatile Output: The sensor provides both analog and digital outputs, offering flexibility for integration with various systems.

• Compact Size: With a 16mm sensing head, the PR6424/113-000 is compact yet powerful, suitable for use in tight spaces.

• Wide Range of Applications: From machine condition monitoring to displacement and position measurement, the sensor excels across diverse applications, making it highly versatile.

• Easy Integration: Designed for easy integration into existing systems, the PR6424/113-000 is compatible with signal conditioners, data acquisition systems, and monitoring equipment.

• Long-Term Stability: The sensor offers consistent long-term performance, ensuring reliable measurements even over extended periods of use.

• Energy-Efficient: Operating with low power consumption (15–30V DC), the sensor is energy-efficient and helps reduce operational costs.

FAQ

1. How does the Epro PR6424/113-000 sensor work?

The PR6424/113-000 works on the eddy current principle, where the sensor’s oscillating magnetic field induces eddy currents in the target material. Changes in the eddy currents are then detected and used to measure displacement or vibration.

2. What is the measurement range of the sensor?

The PR6424/113-000 can measure displacement up to 10 mm from the target material.

3. Can the Epro PR6424/113-000 sensor measure high-speed rotations?

Yes, the sensor has a high-frequency response, which makes it ideal for measuring displacement and vibrations in high-speed rotating machinery.

4. What is the accuracy of the Epro PR6424/113-000 sensor?

The sensor offers an accuracy of ±0.1% of full scale, providing precise measurements for a variety of applications.

5. What types of output does the sensor provide?

The PR6424/113-000 offers both analog and digital outputs, giving flexibility for integration with various systems and monitoring equipment.

6. What environments can the Epro PR6424/113-000 sensor be used in?

The sensor is designed for use in industrial environments and can operate in temperatures from -20°C to +80°C, making it suitable for harsh conditions, including corrosive environments.

7. Can the Epro PR6424/113-000 sensor be used in vibration measurement applications?

Yes, the PR6424/113-000 is commonly used for vibration measurement in rotating equipment like motors, bearings, and turbines, helping detect misalignment or imbalance.

8. What is the maximum frequency response of the sensor?

The sensor is capable of handling high-frequency responses, making it suitable for dynamic applications such as real-time vibration monitoring.

9. Can the sensor be used for position sensing?

Yes, the PR6424/113-000 is ideal for position sensing, particularly in automated systems for measuring displacement and monitoring the position of actuators, sliders, and pistons.

10. How does the sensor help in machine condition monitoring?

The sensor monitors the displacement and vibration of machinery, providing early detection of faults such as misalignment, wear, or imbalance, helping to prevent costly downtime.
