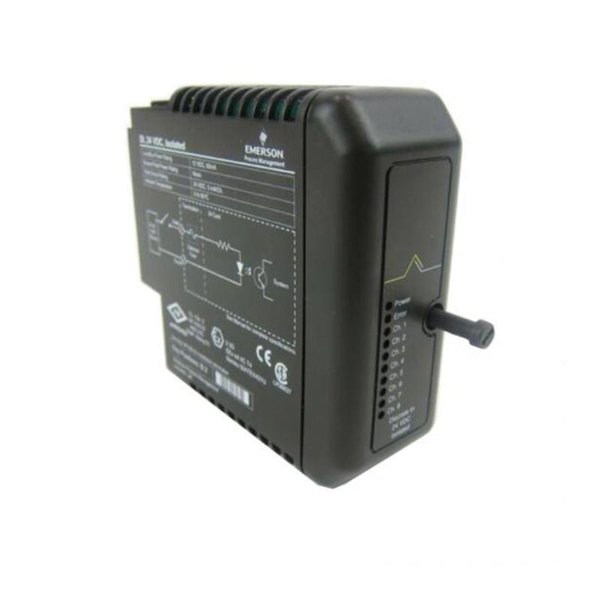

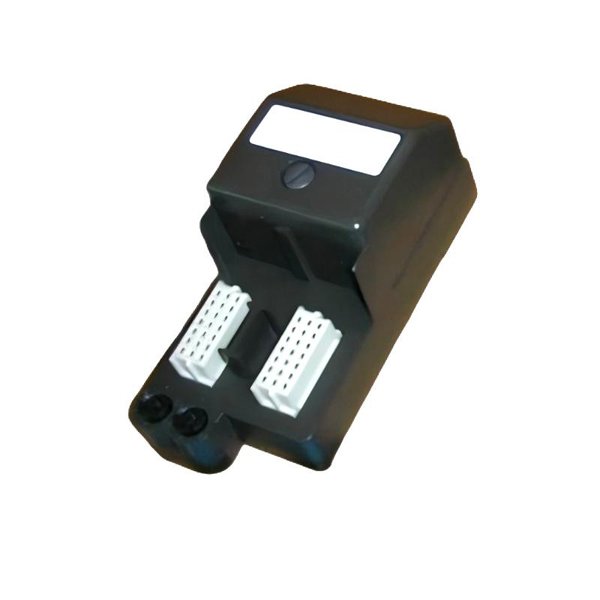

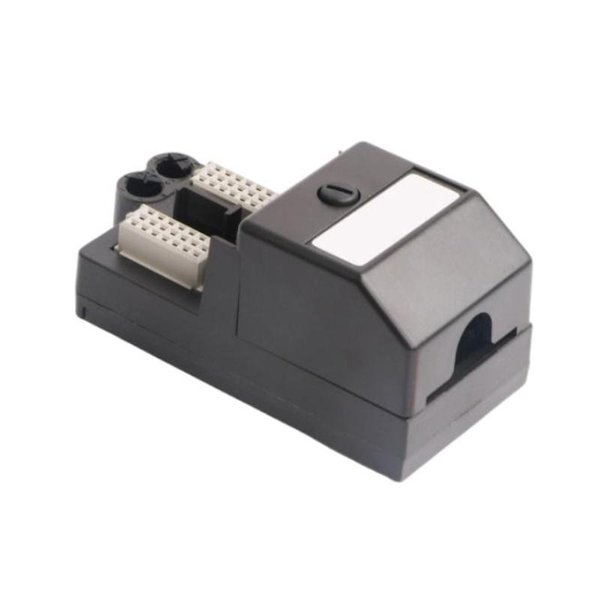

The Emerson VE4001S2T2B5 KJ3203X1-BA1 + KJ4001X1-CK1 is a high-performance discrete input module designed for integration into Emerson’s DeltaV™ system. This module features a 40-pin terminal block, providing a secure and reliable connection for all industrial control systems. The module is well-suited for applications where you need to collect digital input signals from field devices such as sensors, switches, buttons, and actuators.

This input module supports a range of discrete input configurations, offering a versatile solution for real-time data monitoring in complex industrial environments. The integration of the KJ3203X1-BA1 and KJ4001X1-CK1 components ensures robust communication and seamless data transmission for process control systems.

Product Specifications

Product Applications

The Emerson VE4001S2T2B5 KJ3203X1-BA1 + KJ4001X1-CK1 discrete input module is designed for use in a variety of industrial and process control applications. Some of its key use cases include:

1. Industrial Automation

   In industrial automation, this module is essential for monitoring limit switches, push buttons, and proximity sensors. It provides real-time monitoring and precise control for industrial manufacturing processes.

2. Energy Management

   The VE4001S2T2B5 module is also used in energy management systems, where it helps track the status of energy meters, electrical panels, and control systems. This contributes to energy optimization and cost-saving initiatives.

3. Oil and Gas Industry

   In the oil and gas industry, it facilitates the monitoring of critical equipment like valves, pumps, and sensors. This ensures safe operation in hazardous environments.

4. Power Generation

   In power plants, the module can be integrated into systems that monitor the status of generators, turbines, and pumps, enabling continuous operation and high uptime for mission-critical systems.

5. Process Control in Manufacturing

   The module is widely used in process control for manufacturing systems. It monitors inputs from devices like motors, conveyors, and valves, ensuring that industrial processes run smoothly and efficiently.

6. Building Automation

   In building automation systems, the VE4001S2T2B5 integrates with HVAC systems, security devices, and lighting control systems to provide efficient, real-time building management.

Product Advantages

• Secure and Flexible Connections

  The 40-pin terminal block ensures that the module is easy to install and provides a secure connection for wiring input devices. The terminals are designed for ease of use, enabling faster installation and maintenance.

• Wide Compatibility

  This module supports multiple communication protocols, including Modbus, Profibus, and Fieldbus, allowing it to integrate into a wide range of industrial systems. It is highly flexible and can be used across various industries with ease.

• Scalable and Modular Design

  With its modular design, the VE4001S2T2B5 can be expanded as your system grows. Multiple input channels per module make it ideal for systems of any size.

• Rugged and Reliable

  Designed for industrial environments, the VE4001S2T2B5 is built to withstand tough conditions. It operates in a temperature range of -20°C to +60°C, and the IP20 rating ensures protection from physical threats like dust or accidental contact with solid objects.

• Built-in Protection

  The module features overcurrent and overvoltage protection, safeguarding the device and connected equipment from electrical disturbances.

• Real-time Data Monitoring

  With discrete digital inputs, the module enables real-time data monitoring and precise control of field devices, improving the overall performance and stability of your system.

FAQ

1. What input types does the VE4001S2T2B5 module support?

   The VE4001S2T2B5 module supports discrete (digital) input signals, suitable for sensors, switches, buttons, and actuators.

2. How many input channels does the module have?

   The module supports multiple input channels, providing flexible options for integrating a wide range of input devices.

3. What is the power supply required for this module?

   The module operates on a 24 V DC nominal power supply, which is typical for most industrial control systems.

4. What communication protocols are supported?

   The module supports Modbus, Profibus, and Fieldbus communication protocols, ensuring compatibility with various industrial systems.

5. How is the VE4001S2T2B5 module installed?

   The module can be easily mounted on a DIN rail, which is a standard and secure mounting method used in industrial environments.

6. What type of terminal block does the VE4001S2T2B5 use?

   It uses a 40-pin terminal block for secure and efficient wiring connections, making installation and maintenance easier.

7. What is the environmental rating of the VE4001S2T2B5 module?

   The module has an IP20 rating, which provides protection from solid objects larger than 12 mm but is intended for indoor use.

8. What temperature range does the module support?

   The module operates in a temperature range of -20°C to +60°C, making it suitable for use in a variety of industrial environments.

9. Does the module have built-in protection mechanisms?

   Yes, the VE4001S2T2B5 features overcurrent and overvoltage protection, enhancing its reliability and safeguarding connected equipment.

10. Can the VE4001S2T2B5 be expanded for larger systems?

    Yes, this module has a scalable design that allows it to be used in both small and large systems, with multiple input channels supporting future expansion.
