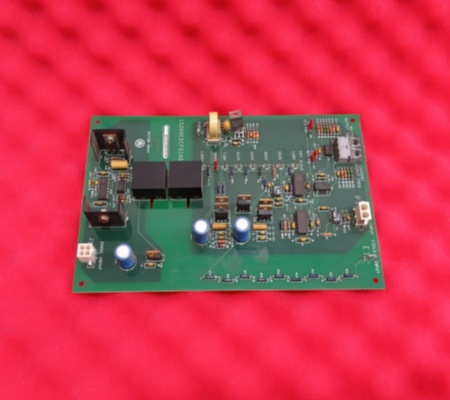

The IS200EDCFG1ADC is part of the EX2100e excitation system. Its establishment with the EISB in the control panel facilitates communication via a high-speed fiber optic link. Voltage isolation and high noise immunity ensure reliable and accurate data transmission to the board. In addition, it has the ability to accurately measure the excitation current and excitation voltage on the SCR bridge. It can establish communication with the EISB board via a high-speed fiber optic link. This communication method has several advantages, including high data transmission rates, electrical isolation, and immunity to electromagnetic interference. The fiber optic link ensures voltage isolation between the EDCF and EISB boards. The use of optical fiber enhances the noise immunity of the system, minimizes the effects of electrical noise and interference, and helps to improve the overall reliability of the communication link.

Frequently asked questions about the product are as follows:

-What is the GE IS200EDCFG1ADC Exciter DC Feedback Board?

It monitors and processes the DC feedback signal from the exciter system, ensuring proper voltage levels are maintained.

-What does the IS200EDCFG1ADC board do?

Monitors the DC feedback from the exciter, thereby controlling the excitation current of the turbine generator.

-How does the IS200EDCFG1ADC board process the DC feedback?

Transmits this information to the turbine control system. This allows the system to adjust the excitation to ensure the turbine operates within safe voltage parameters.
