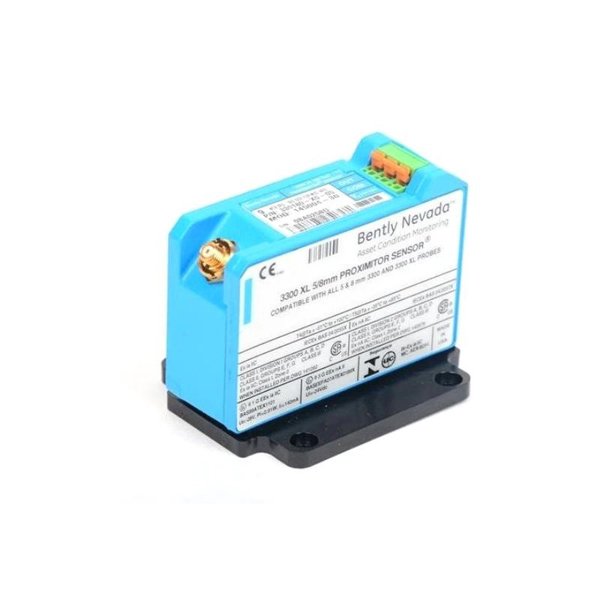

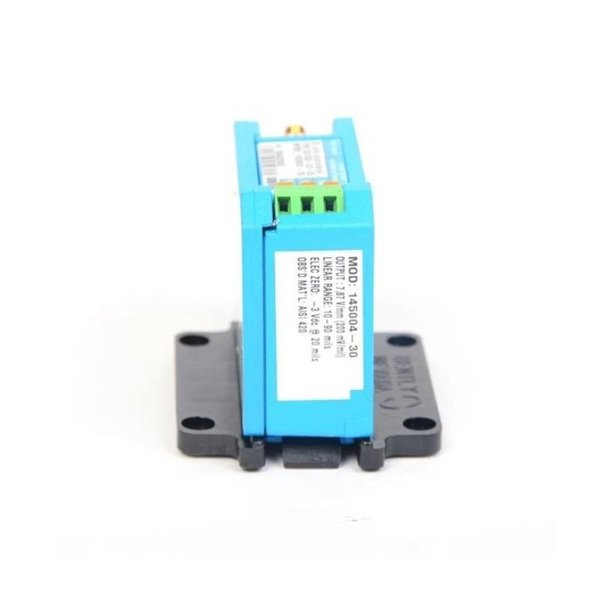

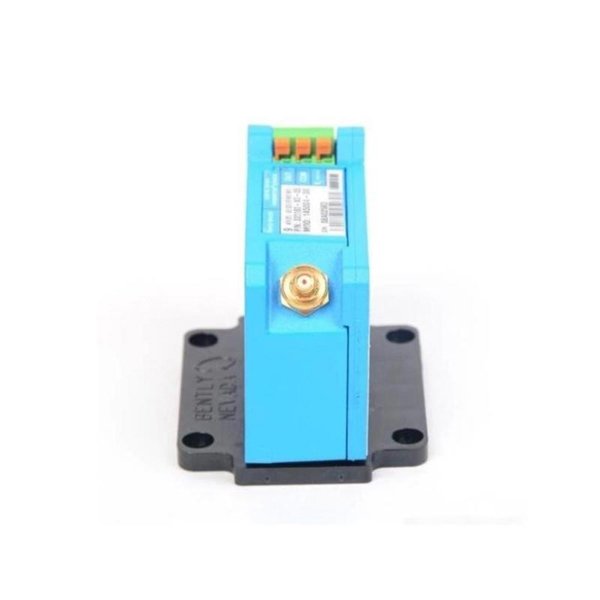

The Bently Nevada 330180-X0-05 143945-05 3300 XL 8mm Proximitor Sensor is part of the globally recognized Bently Nevada 3300 XL series, engineered for precision vibration, position, and displacement monitoring of rotating machinery. This proximity sensor system provides highly reliable, non-contact measurements of shaft position and vibration, ensuring optimal protection and condition monitoring for critical equipment such as turbines, compressors, pumps, and motors.

The 330180-X0-05 Proximitor Sensor works in conjunction with 3300 XL 8mm probes and extension cables, delivering industry-standard performance, superior durability, and compatibility with Bently Nevada’s monitoring systems. With robust design features, high immunity to electrical noise, and advanced signal stability, this sensor system is trusted across industries where machinery health is paramount.

Key Features

• Non-contact vibration and displacement measurement

• Designed for use with 3300 XL 8mm Proximity Probes and Extension Cables

• Superior linearity and signal stability for precise monitoring

• Wide operating temperature range suitable for harsh environments

• Rugged construction ensures reliable operation in industrial conditions

• Compatible with Bently Nevada machinery protection systems

• Field-proven design with excellent immunity to electromagnetic interference (EMI)

• Fully compliant with API 670 standards for machinery protection

• Color-coded connectors for ease of installation and maintenance

• Ideal for continuous online condition monitoring applications

Technical Specifications

Note: The “X0” in the part number refers to specific system cable lengths, determined by customer configuration.

Product Advantages

• Precision Monitoring: Delivers highly accurate vibration and displacement data for critical machinery protection

• Field-Proven Reliability: Used worldwide in power plants, refineries, and heavy industries for machinery health monitoring

• Non-Contact Measurement: Prevents physical wear and ensures long-term system integrity

• Wide Operating Range: Functions reliably under extreme temperatures and harsh industrial conditions

• Excellent Signal Stability: High immunity to electrical noise and environmental interference

• System Compatibility: Seamlessly integrates with Bently Nevada 3500, 3300, and other monitoring platforms

• Durable Construction: Rugged housing and connectors withstand vibration, contamination, and mechanical stress

• Ease of Installation: Color-coded connectors and modular components simplify setup and maintenance

• Meets API 670 Requirements: Complies with international standards for rotating machinery protection

• Reduced Downtime Risk: Early fault detection enables proactive maintenance and equipment longevity

Industry Applications

The Bently Nevada 330180-X0-05 143945-05 3300 XL 8mm Proximitor Sensor is extensively deployed across industries where machinery reliability and protection are critical:

• Power Generation: Turbine, generator, and motor vibration monitoring

• Oil & Gas: Monitoring compressors, pumps, and critical rotating equipment

• Petrochemical Plants: Ensures machinery protection in refineries and chemical processing

• Steel and Metal Industries: Continuous condition monitoring of rolling mills and heavy-duty machinery

• Pulp and Paper: Equipment monitoring for critical rotating systems

• Marine and Offshore: Vibration protection for engines, propulsion systems, and generators

• Water Treatment Facilities: Monitoring of pumps, motors, and mechanical drives

• Mining and Mineral Processing: Condition monitoring in crushers, mills, and rotating assets

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 330180-X0-05 Proximitor Sensor?

It provides non-contact measurement of shaft vibration and displacement for rotating machinery protection.

Q2: Which probes are compatible with this Proximitor Sensor?

It is designed for use with Bently Nevada 3300 XL 8mm proximity probes.

Q3: Does the system meet API 670 standards?

Yes, the complete system complies with API 670 requirements for machinery protection.

Q4: Can this sensor operate in harsh environments?

Yes, it is designed for high-temperature, high-vibration, and industrial environments.

Q5: How is the sensor powered?

It receives power from the Bently Nevada monitoring system, typically 24 VDC.

Q6: What is the typical measurement range?

The system provides accurate displacement measurement from 0.5 mm to 2 mm (20 to 80 mils).

Q7: Is the sensor resistant to electrical noise?

Yes, it features excellent EMI immunity for stable signal output in noisy environments.

Q8: What is the expected output sensitivity?

The system provides 7.87 V/mm (200 mV/mil) nominal sensitivity.

Q9: Are extension cables available?

Yes, the system requires matching Bently Nevada 3300 XL extension cables, configured per application.

Q10: Where is this sensor commonly used?

It is widely used in power plants, refineries, oil & gas facilities, and other critical machinery environments.
