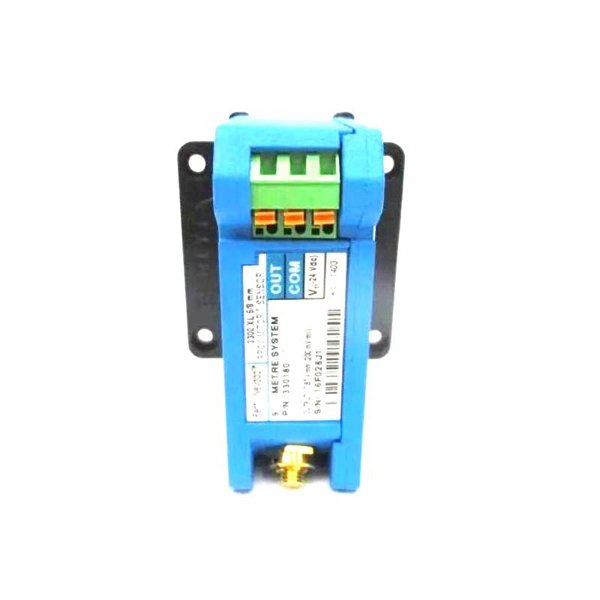

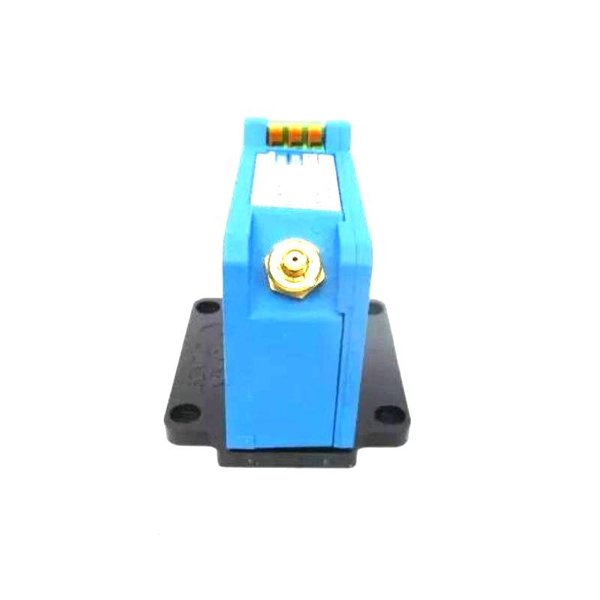

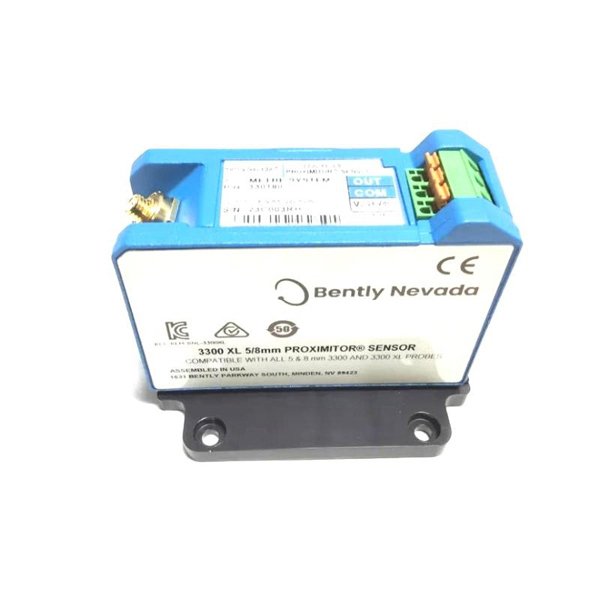

The Bently Nevada 330180-X1-05 145004-94 3300 XL Proximitor Sensor is a key component of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurement on fluid-film bearing machines. It delivers a voltage output directly proportional to the distance between the probe tip and the conductive target surface, enabling accurate monitoring of both static and dynamic conditions.

Its design ensures full compliance with API 670 mechanical configuration, linear range, accuracy, and temperature stability standards, while supporting complete interchangeability with other 3300 XL 8 mm system components.

Technical Specifications

Applications

• Vibration monitoring in turbines, compressors, and pumps

• Shaft position and displacement measurements

• Keyphasor® reference and rotational speed monitoring

• Condition monitoring for predictive maintenance in critical rotating equipment

Advantages

• High Measurement Accuracy – Complies with API 670 requirements for linearity and stability

• Robust Environmental Protection – RFI/EMI immunity allows use in non-metallic housings

• Ease of Installation – SpringLoc terminals and ClickLoc connectors require no special tools

• Interchangeability – Fully compatible with previous 3300 series 8 mm and 5 mm systems

• Extended Operating Range – Supports high-temperature probe and cable options up to 260°C

• Durable Construction – Corrosion-resistant, gold-plated connectors and strong mechanical housing

FAQ

Q1: What is the primary use of the 330180-X1-05 Proximitor Sensor?

A1: It measures vibration, shaft position, and speed in rotating machinery.

Q2: Is it compatible with older Bently Nevada 3300 series components?

A2: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm and 5 mm systems.

Q3: Does it meet API 670 standards?

A3: Yes, it fully complies with API 670 mechanical, linear range, accuracy, and stability requirements.

Q4: What is the typical linear range?

A4: 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm from the target surface.

Q5: What is the recommended gap setting?

A5: Approximately -9 Vdc, equivalent to 1.27 mm (50 mils).

Q6: Can it operate in high-temperature environments?

A6: Yes, with Extended Temperature Range (ETR) probe and cable options up to 260°C.

Q7: How is field wiring connected?

A7: Via SpringLoc terminal strips, supporting 0.2 to 1.5 mm² (16–24 AWG) cables.

Q8: What kind of targets can it be calibrated for?

A8: Standard calibration is for AISI 4140 steel; other materials available upon request.

Q9: Does it require special tools for installation?

A9: No, ClickLoc connectors and SpringLoc terminals are tool-free.

Q10: What environmental conditions can it withstand?

A10: It has wide operating and storage temperature ranges and high RFI/EMI immunity.
