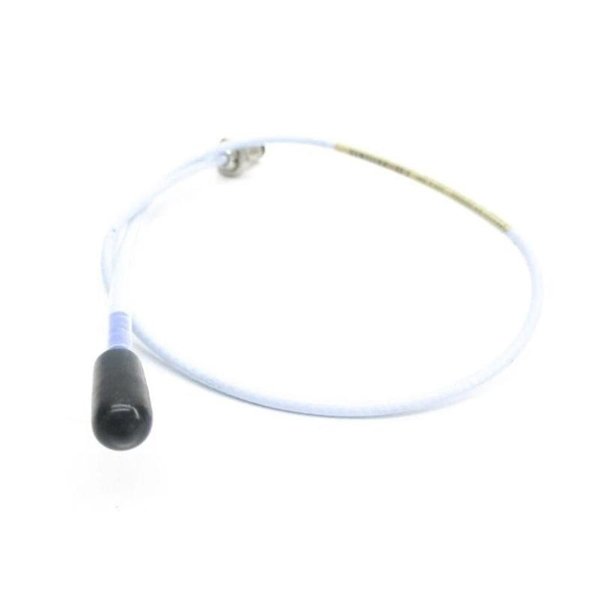

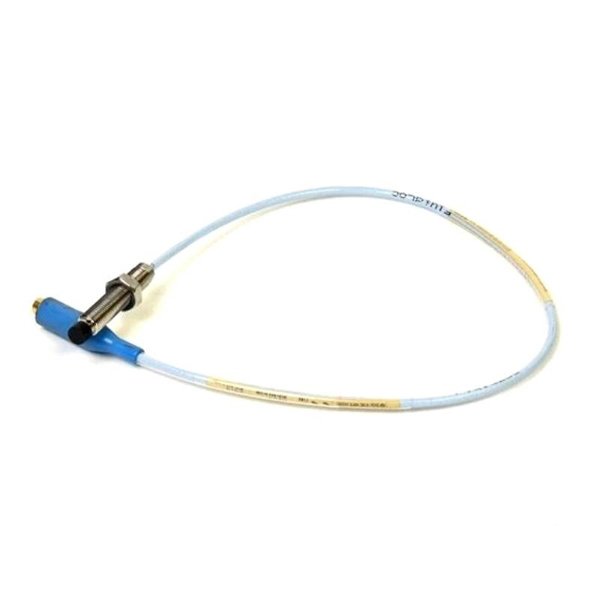

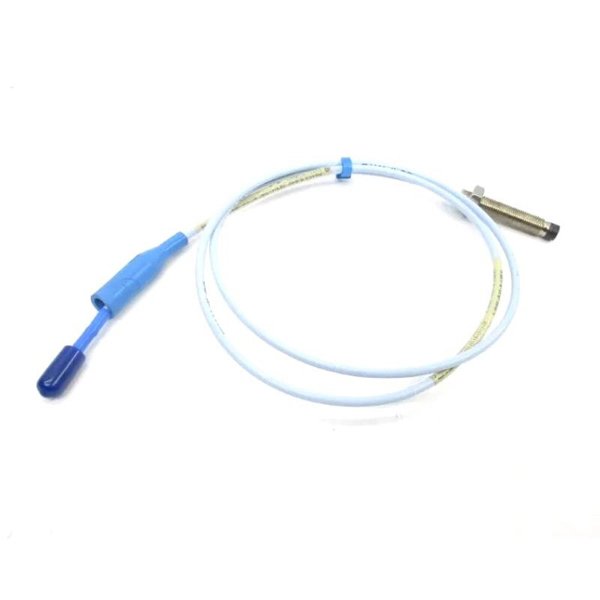

The Bently Nevada 330101-00-36-10-02-05 is a high-performance 3300 XL 8 mm Proximity Probe designed to deliver precise vibration and displacement measurements. It is optimized for industrial machinery monitoring and integrates seamlessly with 3300 XL systems.

Product Specifications

Applications

• Steam turbines

• Gas turbines

• Compressors

• Gearboxes

• Pumps

• Fans

• Industrial rotating machinery

Advantages

• Precise 8 mm tip ensures accurate shaft displacement measurement

• Compatible with Bently Nevada 3300 XL systems

• Robust stainless-steel housing for harsh environments

• Excellent signal stability and noise immunity

• Proven reliability in demanding industrial applications

• Easy installation with standard thread sizes

FAQ

Q1: What is the primary use of the 330101-00-36-10-02-05 probe?

A1: It is used for measuring shaft displacement and vibration in rotating machinery.

Q2: Is this probe compatible with other Bently Nevada systems?

A2: Yes, it is fully compatible with the 3300 XL Proximitor Sensor and extension cables.

Q3: What material is the probe tip made of?

A3: The tip is made of durable polyphenylene sulfide (PPS).

Q4: Can the probe withstand high temperatures?

A4: Yes, it operates reliably in temperatures ranging from -35°C to +120°C.

Q5: What is the probe’s thread size for mounting?

A5: It uses a 3/8-24 UNF mounting thread.

Q6: What is the sensitivity of the probe?

A6: It provides a standard sensitivity of 7.87 mV/µm (200 mV/mil).

Q7: How is the probe sealed against the environment?

A7: It is epoxy sealed and rated IP68 for water and dust protection.

Q8: What is the weight of the probe?

A8: The probe weighs 0.323 kg.

Q9: What cable is used with this probe?

A9: It uses a Teflon-jacketed triaxial cable.

Q10: What systems is it commonly used on?

A10: It is commonly used on turbines, compressors, pumps, and other critical rotating equipment.
