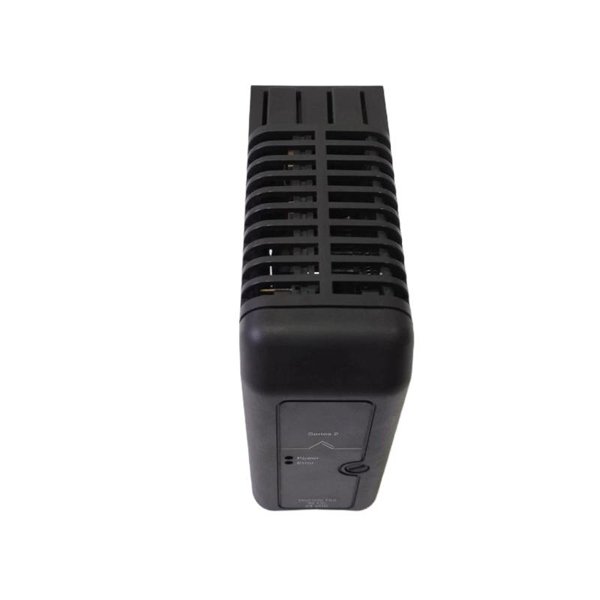

The Emerson VE4001S2T2B4 KJ4001X1-CJ1 is a high-performance input module that is designed to provide precise control and data acquisition in industrial applications. It is part of the Emerson DeltaV™ control system, providing reliable and flexible integration with a wide variety of industrial devices. This module is designed for digital and analog inputs, ensuring seamless communication and monitoring between field devices and control systems.

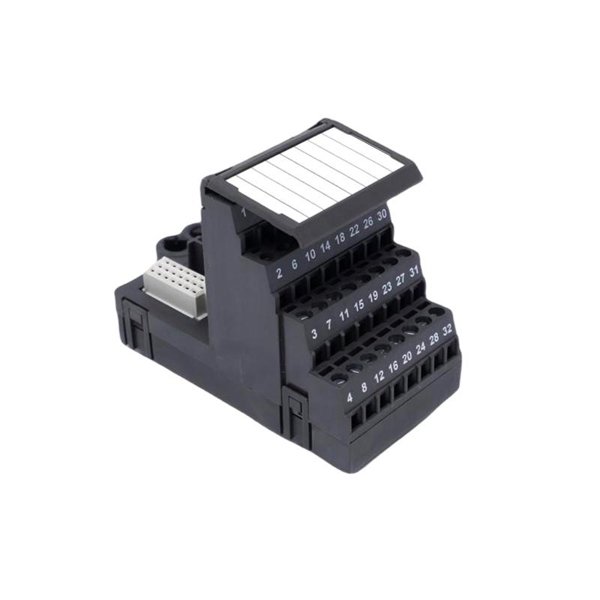

Equipped with terminal blocks, the VE4001S2T2B4 ensures a fast, error-free installation process and easy maintenance. The inclusion of terminal blocks means the user can quickly wire the system and make necessary changes without complicated configurations. This feature makes the VE4001S2T2B4 KJ4001X1-CJ1 a go-to solution for process industries that require reliable data acquisition and robust system performance.

Product Specifications

Product Applications

The Emerson VE4001S2T2B4 KJ4001X1-CJ1 input module can be used in a variety of industrial applications, providing vital data acquisition and processing in systems such as:

1. Industrial Automation Systems

   The VE4001S2T2B4 is commonly used in industrial automation systems for precise monitoring and control of machines and equipment. It allows for real-time data collection from devices such as sensors, switches, and actuators, ensuring smooth and efficient system operations.

2. Energy Management

   In energy management systems, the module helps monitor and manage energy consumption by gathering real-time data from various meters and energy sensors, aiding in energy optimization and cost reduction.

3. Oil and Gas

   The module is an excellent choice for oil and gas operations, where it interfaces with sensors, valves, and pumps to provide valuable data for monitoring system health, preventing failure, and ensuring safety and reliability in hazardous environments.

4. Power Generation

   In power generation plants, this module helps monitor and control systems such as turbines, generators, and pumps, offering precise data acquisition for performance optimization and fault detection.

5. Manufacturing Process Control

   The VE4001S2T2B4 module is used in manufacturing process control to gather data from critical equipment such as motors, presses, and conveyors, ensuring efficiency, uptime, and product quality.

6. Building Automation Systems

   The module is ideal for building automation systems, where it can interface with devices like HVAC systems, lighting controls, and security systems, helping to optimize building operations and reduce costs.

Product Advantages

• Dual Input Capability

  The VE4001S2T2B4 KJ4001X1-CJ1 module supports both digital and analog inputs, offering flexibility and versatility in connecting to a variety of field devices, such as temperature sensors, pressure transducers, and flow meters.

• Simplified Installation

  The inclusion of terminal blocks makes installation and maintenance easier. Users can quickly wire devices and replace them with minimal downtime and no need for complex rewiring or reconfigurations.

• High-Quality Protection

  Built-in overcurrent and overvoltage protection safeguard the module and the connected field devices, protecting them from electrical issues and improving system reliability and longevity.

• Seamless Integration with DeltaV™ Systems

  Fully compatible with Emerson DeltaV™ control systems, the module integrates easily into existing systems, enhancing system scalability and improving overall system performance.

• Reliability in Harsh Environments

  The VE4001S2T2B4 module is designed to function reliably in harsh industrial environments, operating at temperatures between -20°C and +60°C and featuring an IP20 rating for protection against dust and solid particles.

• Scalability

  The modular design of the VE4001S2T2B4 allows for easy system expansion, enabling the module to be used in both small and large-scale systems without compromising performance.

FAQ

1. What types of inputs are supported by the VE4001S2T2B4 module?

   The module supports both digital and analog inputs, allowing for a wide variety of field devices to be connected, including sensors, switches, and actuators.

2. What communication protocols does the VE4001S2T2B4 support?

   The module supports Modbus, Profibus, and Fieldbus, making it compatible with multiple industrial communication standards.

3. How does the terminal block system improve the installation process?

   The terminal block system simplifies wiring and installation, allowing for quick connections and easy maintenance without complex configurations.

4. What power supply does the VE4001S2T2B4 module require?

   The module operates on a 24 V DC nominal power supply, which is standard for most industrial control systems.

5. Can the VE4001S2T2B4 be used in hot environments?

   Yes, the module can operate in temperatures ranging from -20°C to +60°C, making it suitable for various industrial environments, including high-temperature applications.

6. Is the VE4001S2T2B4 compatible with other Emerson control systems?

   Yes, the module is fully compatible with Emerson DeltaV™ control systems, allowing for seamless integration and operation.

7. What protection features are built into the VE4001S2T2B4?

   The module includes overcurrent and overvoltage protection, which safeguards both the module and connected field devices from electrical damage.

8. What is the environmental protection rating of the VE4001S2T2B4?

   The module has an IP20 rating, which provides protection against solid objects larger than 12 mm, making it suitable for indoor industrial environments.

9. How many input channels can the VE4001S2T2B4 handle?

   The VE4001S2T2B4 module supports multiple input channels per module, providing flexibility for integrating several devices into a single system.

10. Is the VE4001S2T2B4 scalable for larger systems?

    Yes, the module is scalable, allowing for easy system expansion as the needs of the control system grow over time.
