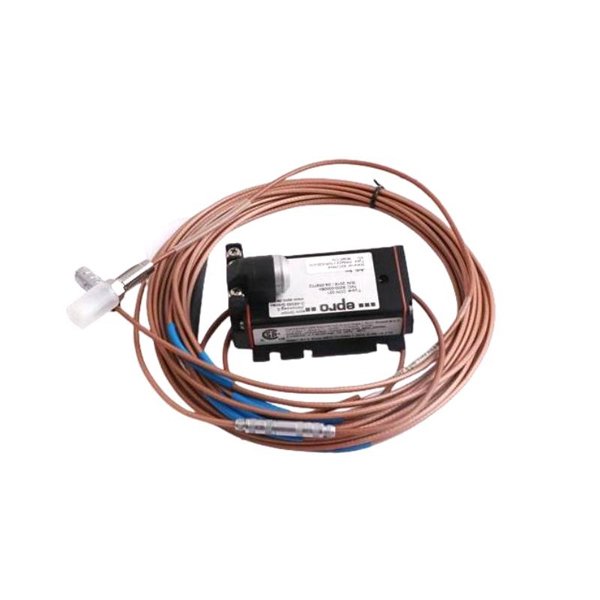

The Epro PR6423/10R-030 8mm Eddy Current Sensor is a highly precise and reliable measurement device used primarily for non-contact displacement and proximity measurements. It utilizes the principle of eddy current to provide high accuracy in applications where traditional mechanical sensors are not feasible. The sensor is particularly suited for monitoring the position of metal objects in environments where high precision and robustness are required, such as in automotive, aerospace, and industrial applications.

Technical Specifications

Applications

The Epro PR6423/10R-030 Eddy Current Sensor is widely used in various industrial and automation applications that require non-contact measurement of displacement or proximity:

• Automotive Industry: Monitoring the position of components during assembly or testing.

• Aerospace: Measuring displacements in high-precision engine or turbine components.

• Industrial Equipment: Used for monitoring the position of machine parts, vibrational testing, and alignment tasks.

• Rotating Machinery: Measuring shaft position and vibration for preventive maintenance.

• Energy Sector: Employed in turbines, generators, and pumps to monitor movement and wear in critical components.

Advantages

1. Non-contact Measurement: Provides precise measurements without physical contact, reducing wear and tear on both the sensor and the object.

2. High Accuracy: Offers excellent accuracy of ± 0.02 mm, making it ideal for precision applications.

3. Wide Temperature Range: Operates reliably across a wide temperature range of -40°C to 85°C, making it suitable for extreme environments.

4. Robust and Durable: The stainless steel housing and IP67 rating ensure durability and protection against dust, moisture, and harsh conditions.

5. Flexible Output Options: Can output either 4-20 mA or 0-10 V signals, providing flexibility for integration with different control systems.

6. Compact Design: The small footprint allows for easy installation in tight spaces.

7. High Sensitivity: Excellent sensitivity to detect even minute changes in the position of the target.

8. Long Lifespan: The sensor is designed for long-term reliability with minimal maintenance requirements.

Frequently Asked Questions (FAQ)

1. What is the working principle of the Epro PR6423/10R-030 sensor?

   • The sensor works on the principle of eddy currents, where the presence of a conductive target changes the eddy current in the sensor’s coil, thus providing precise distance measurements.

2. What is the maximum displacement that the sensor can measure?

   • The Epro PR6423/10R-030 sensor has a sensing range of 8 mm.

3. How accurate is the sensor?

   • The sensor provides high accuracy with a measurement tolerance of ± 0.02 mm.

4. What is the temperature range in which this sensor operates?

   • The sensor can operate in temperatures ranging from -40°C to 85°C, making it suitable for both extreme cold and high heat environments.

5. What kind of output signals does the sensor provide?

   • The sensor can output analog signals, either 4-20 mA or 0-10 V, depending on the model.

6. Is the sensor resistant to environmental conditions?

   • Yes, it is built with a stainless steel housing and has an IP67 rating, meaning it is resistant to dust and water ingress.

7. Can the Epro PR6423/10R-030 be used in high-speed machinery?

   • Yes, this sensor is suitable for monitoring high-speed moving parts, such as shafts and rotating machinery.

8. How easy is it to integrate the sensor with existing systems?

   • The sensor offers a simple installation process, with flexible output options (4-20 mA or 0-10 V) to ensure compatibility with various control systems.

9. Does the sensor require frequent maintenance?

   • The sensor is designed for low maintenance, with a long service life and robust construction to withstand harsh industrial conditions.

10. What materials can the Epro PR6423/10R-030 sensor measure displacement on?

    • The sensor is suitable for measuring displacement on metallic objects, particularly conductive materials such as steel and aluminum.
