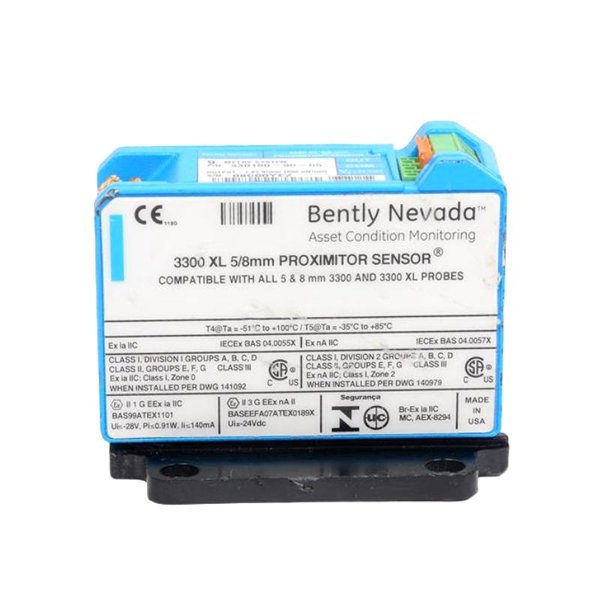

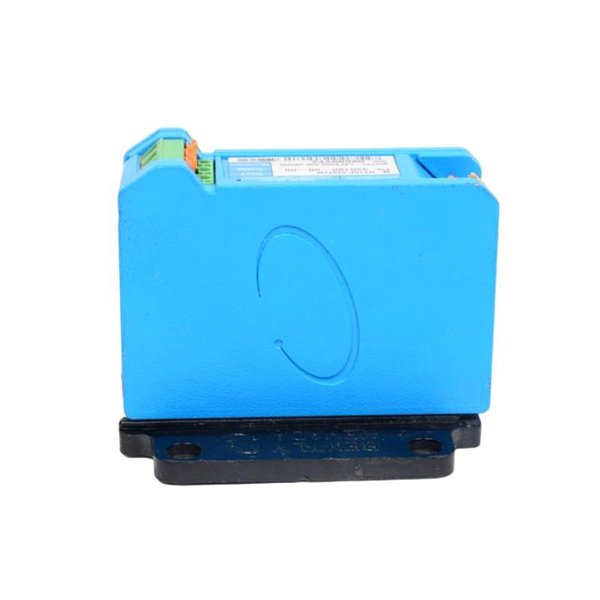

The Bently Nevada 330180-080-01-00 is a part of the renowned 3300 XL 8mm Proximitor Sensor System, designed for high-performance proximity measurements in industrial machinery monitoring. This system includes a probe, extension cable, and Proximitor sensor. The model 330180-080-01-00 specifically refers to the Proximitor sensor unit, which works with 8mm eddy current probes to accurately measure the position and vibration of rotating machinery shafts relative to their bearing housings.

Engineered to deliver precise displacement data, the 3300 XL Proximitor Sensor is widely recognized for its durability, reliability, and compliance with API 670 standards. It is a vital component in condition monitoring systems, providing critical inputs for real-time machine protection and diagnostics. Its rugged construction allows it to function in harsh environments such as oil refineries, power generation plants, and chemical processing facilities.

Product Specifications

Product Applications

The 330180-080-01-00 Proximitor Sensor is widely implemented in rotating machinery for real-time shaft vibration and position monitoring. Typical applications include:

• Steam and Gas Turbines

  For shaft radial vibration and axial thrust position monitoring.

• Centrifugal Compressors

  Detecting rotor imbalance, misalignment, and bearing wear.

• Electric Motors

  Providing data on shaft runout and mechanical looseness.

• Gearboxes and Pumps

  Ensuring early detection of mechanical degradation or imbalance.

• Fans and Blowers

  Monitoring shaft alignment and dynamic displacement.

The sensor’s high accuracy and reliability make it an integral part of machinery protection systems, allowing operators to detect developing faults before they lead to unplanned shutdowns or catastrophic failures.

Product Advantages

The Bently Nevada 330180-080-01-00 Proximitor Sensor offers multiple operational and technical benefits:

• API 670 Compliance

  Meets the demanding standards for critical machinery protection systems.

• Superior Linearity

  Delivers consistent output across a wide range, enhancing diagnostic precision.

• Robust Construction

  Engineered for high resistance to vibration, dust, moisture, and corrosive environments.

• Modular Compatibility

  Seamlessly integrates with 3300 XL probes and extension cables for system flexibility.

• Simplified Installation

  Standardized connectors and mounting options support faster deployment.

• Long-Term Stability

  High thermal stability and minimal signal drift even under continuous use.

• Non-contact Measurement

  Enables wear-free operation with no mechanical coupling to the shaft.

• Buffered Outputs Available

  Enables portable analyzers or control systems to access real-time sensor data.

Frequently Asked Questions (FAQ)

1. What is the output sensitivity of the 330180-080-01-00 Proximitor sensor?

   The output sensitivity is –200 mV/mil (±10%).

2. Is this sensor compatible with all 3300 XL 8mm probes?

   Yes, it is designed to work with any 3300 XL 8mm proximity probe and extension cable.

3. What is the linear measurement range of this sensor?

   It provides a nominal linear range of 80 mils (2.0 mm).

4. Does the sensor support buffered output for data acquisition systems?

   Yes, it includes buffered outputs for real-time signal access.

5. What power supply does the sensor require?

   It requires a –24 Vdc nominal power supply, typically provided by the monitoring rack.

6. Can this sensor be used in high-vibration environments?

   Yes, its rugged design and shock-resistant enclosure are ideal for harsh industrial conditions.

7. What is the non-linearity of this sensor?

   The non-linearity is within ±0.75% of the full-scale output.

8. What types of faults can it help detect in rotating machinery?

   It can detect imbalance, misalignment, eccentricity, shaft bow, and bearing degradation.

9. Does it require calibration after installation?

   While factory-calibrated, fine-tuning or verification may be needed depending on the system.

10. What is the typical frequency response of this sensor?

    It provides a typical frequency response up to 10 kHz, supporting high-speed monitoring applications.
