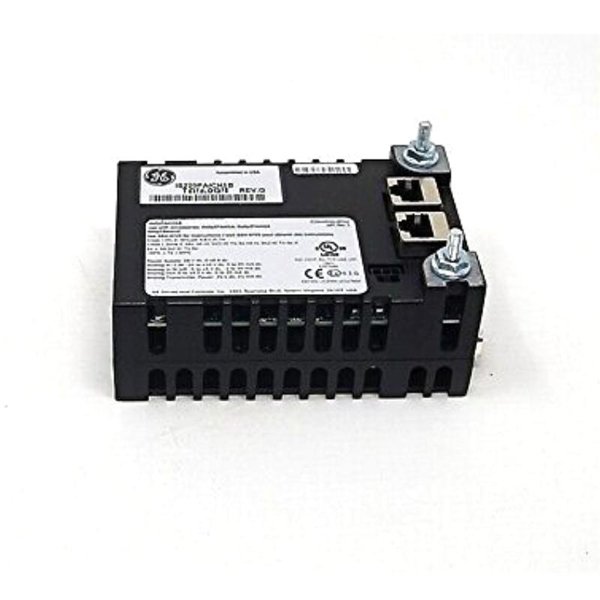

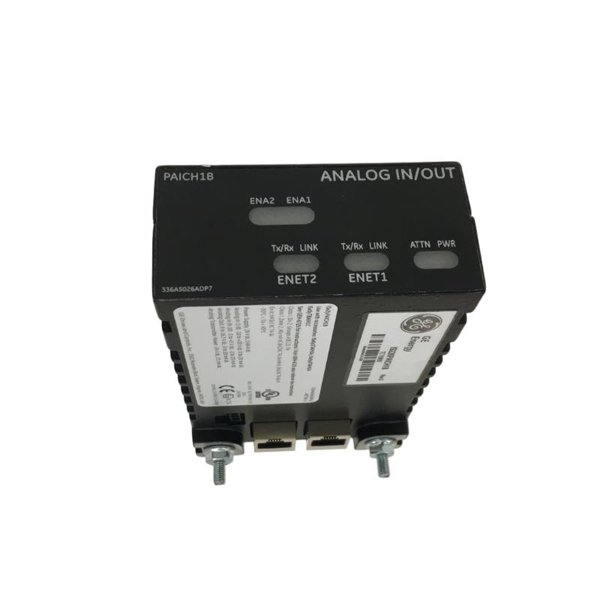

The GE IS220PAOCH1BE is an analog I/O module designed for use within the Mark VIe control system, widely adopted in industrial automation and power generation environments. It serves as a high-performance interface for handling analog input and output signals, ensuring accurate data acquisition and reliable control. This module is engineered for demanding applications such as turbine control, process monitoring, and plant automation, where precise analog signal processing is critical.

Product Advantages

• High accuracy in analog signal acquisition and transmission

• Seamless integration with the Mark VIe control system architecture

• Robust design for continuous industrial operation

• Flexible configuration supporting multiple analog input and output types

• Enhanced diagnostic capabilities for predictive maintenance

• Reduced downtime through modular hot-swap design

Technical Specifications

Product Applications

• Gas and steam turbine control systems

• Industrial process control and monitoring

• Power plant distributed control systems (DCS)

• Petrochemical automation and refinery operations

• Manufacturing plant automation requiring precise analog I/O

• Water treatment plants with process instrumentation needs

FAQ

Q1: What type of signals does the IS220PAOCH1BE support?

A1: It supports both voltage and current analog signals for input and output.

Q2: How is the module integrated into the Mark VIe system?

A2: The module connects through an Ethernet backbone, enabling high-speed communication with controllers and other I/O modules.

Q3: What is the resolution of the analog signals handled by this module?

A3: The module provides 16-bit resolution for high-accuracy signal processing.

Q4: Can the IS220PAOCH1BE be replaced online without system shutdown?

A4: Yes, it is designed for hot-swappable operation, minimizing downtime.

Q5: Does the module have built-in diagnostics?

A5: Yes, it features self-check routines, system event logging, and real-time fault detection.

Q6: What is the nominal operating voltage of this module?

A6: The module typically operates on a 24 V DC power supply.

Q7: Is this module suitable for high-temperature industrial environments?

A7: Yes, it supports an operating range from -20 °C to +65 °C.

Q8: How does the module ensure communication reliability?

A8: It uses Ethernet-based communication with redundancy support in the Mark VIe architecture.

Q9: Does the module require external cooling?

A9: No, it uses natural convection cooling for reliable operation.

Q10: Can the IS220PAOCH1BE be configured for both input and output roles?

A10: Yes, it offers flexibility to handle both analog inputs and outputs depending on system requirements.
