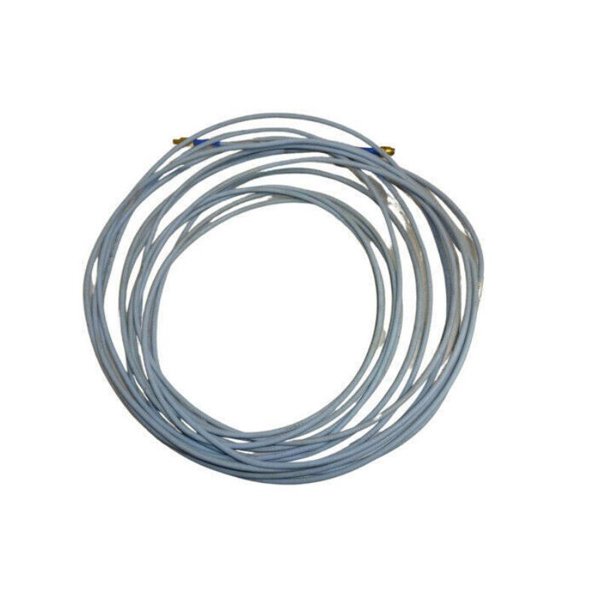

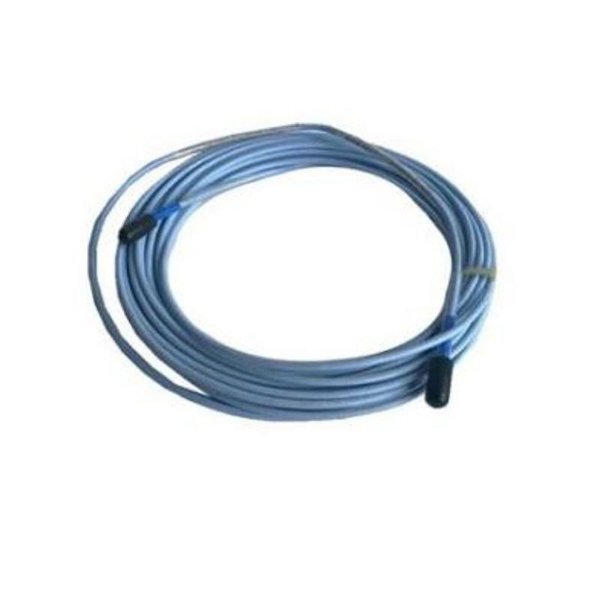

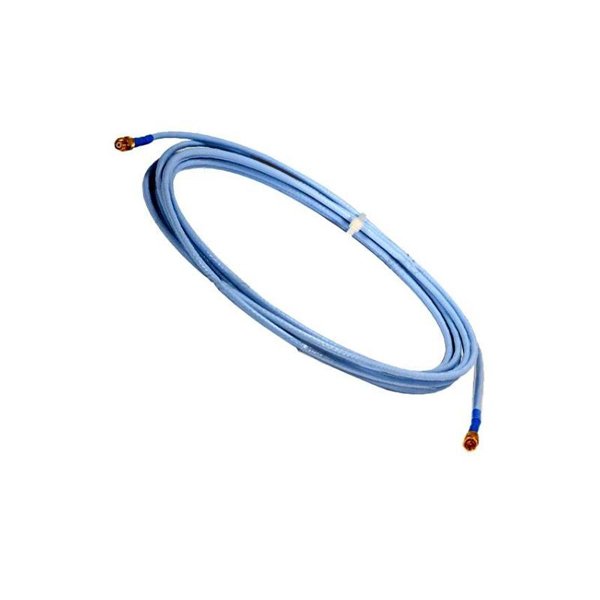

The Bently Nevada 330130-080-13-00 3300 XL Standard Extension Cable is designed to extend the reach of 3300 XL proximity probes used in industrial machinery monitoring systems. The cable ensures that proximity probes, which measure displacement and vibration in rotating machinery, can be positioned farther from the monitoring equipment without sacrificing signal integrity. This extension cable is an essential component in condition monitoring, predictive maintenance, and vibration analysis, offering flexibility and extended capabilities for machinery health monitoring.

The 3300 XL extension cable is designed to withstand harsh industrial environments while maintaining the quality and reliability of the transmitted signal over long distances. The high-performance cable ensures continuous monitoring of critical equipment, helping detect early signs of wear, misalignment, or imbalance in machinery. It is ideal for large-scale systems where equipment needs to be monitored in difficult-to-reach areas.

This extension cable supports the 3300 XL proximity probes in various industrial settings, including power generation, manufacturing, oil & gas, water treatment, and mining industries, ensuring that machinery is accurately monitored for optimal performance and reliability.

Product Specifications

Product Applications

The Bently Nevada 330130-080-13-00 3300 XL Standard Extension Cable is used in various industrial applications to extend the distance between the 3300 XL proximity probes and the monitoring equipment. Some common applications include:

• Proximity Probe Extension: The cable allows proximity probes to be placed farther away from monitoring equipment, providing greater flexibility in installation.

• Condition Monitoring: The extension cable ensures that probes can monitor vibration and displacement in machinery at optimal locations, enhancing the accuracy of condition monitoring systems.

• Predictive Maintenance: Enables the use of proximity probes in hard-to-reach areas for early detection of mechanical issues, minimizing unplanned downtime and preventing failures.

• Power Generation: Commonly used in power plants to extend probes to critical machinery such as turbines and generators, ensuring the continuous monitoring of vital equipment.

• Oil & Gas: In the oil and gas industry, the extension cable is used in remote installations, connecting probes on compressors, pumps, and other rotating equipment.

• Water Treatment: Used to extend probes to pumps, motors, and mixers in water treatment plants, enabling real-time monitoring of equipment performance.

• Mining and Manufacturing: In mining and manufacturing, the cable allows for easy integration into equipment that is not easily accessible, ensuring the proper monitoring of crushers, conveyors, and mills.

Product Advantages

• Extended Reach: The 3300 XL extension cable allows users to place probes farther from the monitoring system, extending the probe’s reach while maintaining high signal integrity.

• Reliable Signal Transmission: Designed to preserve signal quality even over longer distances, this cable ensures that data from the proximity probes is transmitted accurately and reliably.

• Durable Construction: The extension cable is made with thermoplastic elastomer insulation, which provides durability and flexibility, making it suitable for harsh environments.

• Wide Temperature Range: With an operational temperature range of -40°C to +120°C, the cable is ideal for use in extreme environments.

• Water and Dust Resistance: The cable is rated IP65, meaning it is resistant to both water and dust ingress, making it ideal for outdoor or industrial applications.

• Compact and Flexible: Despite its durability, the cable has a 10mm diameter, allowing for installation in confined spaces without compromising performance.

• High Voltage Rating: The cable has a 500 V DC voltage rating, ensuring it can be used in high-voltage environments without compromising safety or performance.

• Compatibility: Fully compatible with 3300 XL proximity probes, ensuring seamless integration into existing monitoring systems.

• Long Service Life: The durable construction ensures a long lifespan, reducing the need for frequent replacements and minimizing downtime.

• Cost-Effective: By allowing for flexible probe placement, the extension cable reduces the need for additional monitoring equipment, providing a cost-effective solution for machinery health monitoring.

Frequently Asked Questions (FAQ)

1. Q: What is the length of the Bently Nevada 330130-080-13-00 extension cable?

   A: The extension cable is 8 meters in length.

2. Q: What temperature range can the 3300 XL extension cable handle?

   A: The cable can operate within a temperature range of -40°C to +120°C.

3. Q: What type of insulation is used in the extension cable?

   A: The extension cable is insulated with thermoplastic elastomer, offering flexibility and durability.

4. Q: How many conductors does the 3300 XL extension cable have?

   A: The extension cable contains 2 conductors, which are used for 2-wire proximity probe connections.

5. Q: Is the 3300 XL extension cable compatible with other Bently Nevada probes?

   A: Yes, the extension cable is fully compatible with all 3300 XL proximity probes from Bently Nevada.

6. Q: What is the outer diameter of the 3300 XL extension cable?

   A: The outer diameter of the extension cable is approximately 10 mm.

7. Q: What is the weight of the extension cable?

   A: The extension cable weighs 0.824 kg.

8. Q: What is the voltage rating for the 3300 XL extension cable?

   A: The cable has a 500 V DC voltage rating.

9. Q: Is the extension cable suitable for outdoor use?

   A: Yes, the cable has an IP65 rating, meaning it is resistant to dust and water ingress, making it suitable for outdoor use.

10. Q: Can the 3300 XL extension cable be used in hazardous environments?

    A: Yes, the cable is designed for use in harsh environments, including those with extreme temperatures and high moisture.
