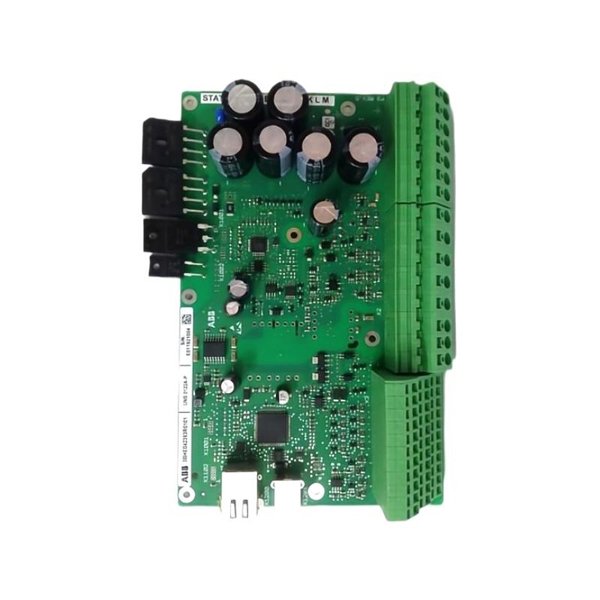

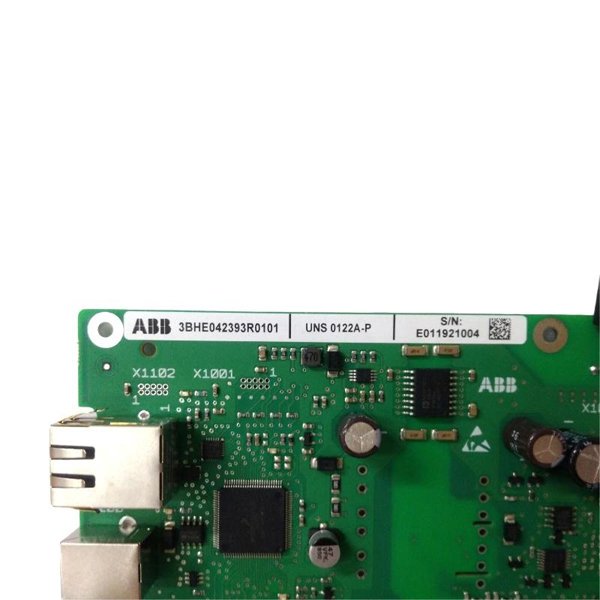

The ABB UNS0122A-P (3BHE042393R0101) is a high-performance analog output module, designed to deliver precise and stable analog signals within ABB’s industrial automation systems. Specifically developed for integration with ABB drive control units and distributed I/O platforms, this module is responsible for converting digital control commands into analog signals used to drive actuators, valves, regulators, and other field devices.

Its robust construction, high signal accuracy, and consistent performance make the UNS0122A-P an essential component in applications where fine-tuned analog control is necessary. Whether in heavy process industries, electrical distribution systems, or large-scale machinery, this module ensures smooth and reliable analog output performance under demanding industrial conditions.

The module forms part of ABB’s broader Modular Automation and Drive Systems portfolio, particularly within the ACS, DCS, and Symphony Plus systems, offering flexible configuration, efficient diagnostics, and seamless control.

Product Specifications

Product Applications

The UNS0122A-P Analog Output Module is widely deployed in industrial sectors that rely on precise analog signal control, especially where high reliability, fast response, and modularity are essential. Applications include:

• Process Automation: Drives control loops in oil & gas, petrochemical, and chemical plants.

• Power Generation: Regulates analog signals for turbines, inverters, and auxiliary components.

• Water & Wastewater Treatment: Controls pumps and dosing valves with smooth analog regulation.

• Pulp & Paper Industry: Manages analog outputs for web tension, speed control, and machine drives.

• HVAC and Building Management: Operates proportional actuators, dampers, and valve controllers.

• Marine Systems: Analog control of propulsion, fuel management, and automation systems.

Product Advantages

• High Signal Accuracy: Offers precision output signals with minimal noise, ensuring stable operation of field devices.

• Fast Update Rate: Supports fast response times for real-time process control applications.

• Flexible Signal Ranges: Configurable for voltage or current output depending on application needs.

• Robust Industrial Design: Withstands harsh environments with wide temperature tolerance and mechanical durability.

• Diagnostic Support: Compatible with system diagnostics for detecting overloads and output failures.

• Plug-and-Play Integration: Seamlessly integrates with ABB control and automation platforms via backplane.

• Safe and Protected: Built-in protection against short-circuits and overcurrent ensures reliable operation.

• Space-Efficient: Compact footprint for control cabinet optimization and easy installation.

• Low Maintenance: Long-life components and high MTBF rating reduce total cost of ownership.

• Global Compliance: Certified for use in international industrial environments.

Frequently Asked Questions (FAQ)

1. What types of signals does the UNS0122A-P output?

   It can output both voltage (0–10V) and current (0–20mA, 4–20mA) signals depending on system configuration.

2. Can I configure the output type per channel?

   Yes, depending on the control system, each channel can be individually configured for voltage or current output.

3. Is the module compatible with all ABB DCS systems?

   It is primarily compatible with ABB DCS800 and Symphony Plus systems. Compatibility should be confirmed with system documentation.

4. Does the module support diagnostics or status feedback?

   Yes, when integrated with compatible ABB systems, it provides diagnostics for signal health and fault detection.

5. How is the module powered?

   It draws power directly from the system backplane; no external power supply is needed.

6. What protections are built into the module?

   It includes protections against short circuits, overcurrent, and signal errors on each channel.

7. Can this module be hot-swapped?

   This depends on the host system. Some ABB systems allow for hot-swapping under certain conditions.

8. Is the module field-configurable or fixed at the factory?

   While the hardware is fixed, output type and scaling can be configured via the system software.

9. What kind of load can it drive on current output mode?

   It is capable of driving loads up to 500Ω in current mode.

10. What is the expected service life of the module?

    Under normal operating conditions, the module can operate reliably for over 10 years with minimal maintenance.
