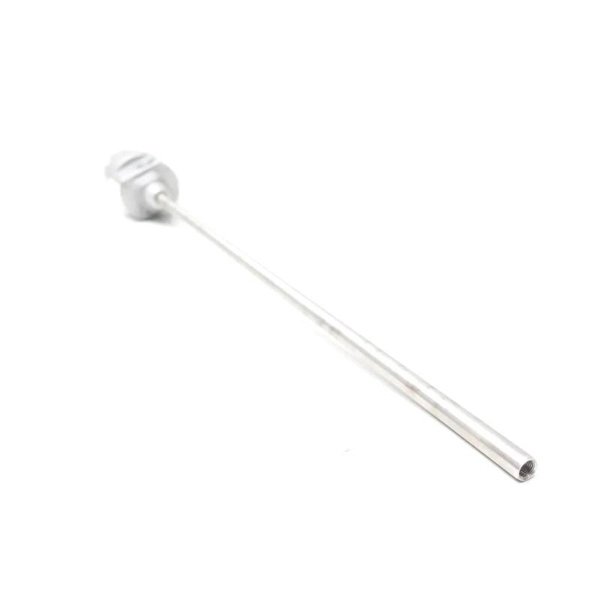

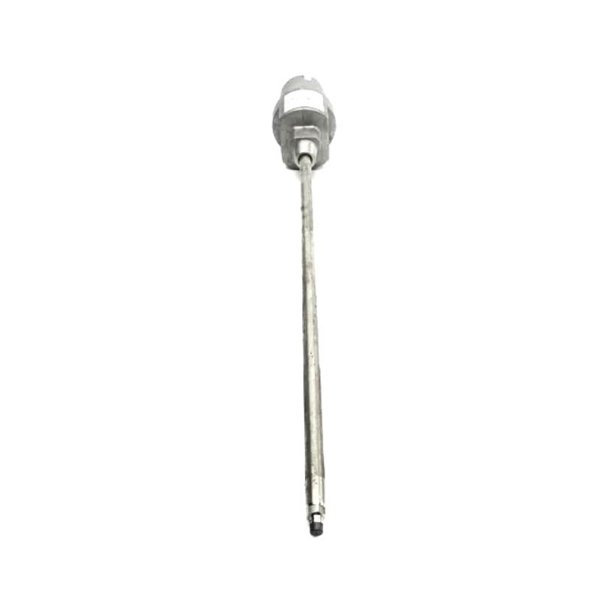

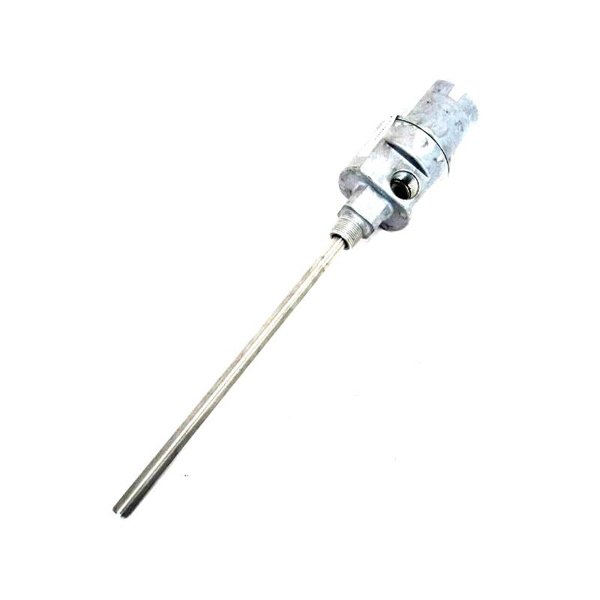

The Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly is a critical component designed for precision vibration monitoring in rotating machinery. This housing assembly is specifically made for Bently Nevada 3300XL proximity probes and is built to ensure the stability, accuracy, and reliability of vibration measurements in harsh and demanding industrial environments.

Vibration monitoring is crucial for predictive maintenance and condition-based monitoring systems, as it helps to detect signs of potential failure in rotating equipment such as pumps, compressors, motors, and turbines. The 24701-28-05-00-070-04-02 housing assembly plays a vital role by safeguarding the 3300XL proximity probes from contaminants such as dust, dirt, and moisture while ensuring the probe remains in a stable and optimal position for consistent vibration readings.

This housing is widely used in industries like oil and gas, power generation, mining, water treatment, and manufacturing, where maintaining the integrity and health of machinery is essential for continuous and efficient operations.

Product Specifications

The Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly comes with the following specifications:

Applications of the Product

The Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly is essential for a range of industrial applications where vibration monitoring is crucial. Some of the key industries and applications include:

• Rotating Equipment Vibration Monitoring: Used in machinery like pumps, compressors, motors, and turbines, the housing ensures that the proximity probe remains stable and protected while measuring vibration levels. This helps operators detect faults early and prevent costly machine failures.

• Predictive Maintenance Systems: The housing assembly is integral to predictive maintenance strategies, where proximity probes are used to monitor the health of machinery in real-time. By maintaining the position of the probes and protecting them from contaminants, the housing ensures the accuracy of vibration readings, helping to prevent unplanned downtime.

• Power Generation Industry: In power plants, where large rotating equipment is constantly in operation, this housing is used to protect proximity probes that monitor generator sets, motors, and other critical equipment. The housing helps to extend the lifespan of these systems by ensuring early detection of faults, allowing for proactive maintenance.

• Oil & Gas: The 24701-28-05-00-070-04-02 housing is frequently used in oil rigs and offshore platforms to protect probes in extreme environments. These areas require continuous machinery monitoring to avoid unplanned shutdowns, and the housing plays a critical role in maintaining the accuracy of vibration measurements.

• Mining and Heavy Industry: In mining, crushers, conveyors, and grinders are exposed to harsh conditions, including dust and extreme temperatures. This housing is used to shield proximity probes from these conditions while maintaining accurate vibration data for optimal machine operation.

• Water Treatment Plants: In water treatment facilities, where rotating equipment like pumps and motors are critical, the housing protects the probes used to monitor machinery health, ensuring reliability and efficiency.

Advantages of the Product

The Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly offers numerous advantages that make it the preferred choice for vibration monitoring:

• Durable Construction: Made from high-quality stainless steel, the housing is corrosion-resistant and can withstand harsh environmental conditions like exposure to dust, moisture, and extreme temperatures.

• Enhanced Stability: The housing assembly ensures that the proximity probe remains securely in place, reducing the likelihood of errors due to probe movement or misalignment. This leads to more accurate and stable vibration measurements.

• Environmental Protection: The housing features an IP67 rating, making it both dust-proof and water-resistant. This protection is vital for applications in industries where machinery is exposed to contaminants.

• Wide Temperature Range: The housing operates effectively in environments with temperatures ranging from -40°C to +120°C, making it suitable for both indoor and outdoor applications in various industries.

• Pressure Resistance: With a pressure rating of up to 30 psi, the housing can withstand moderate pressure levels, making it suitable for use in systems that experience internal pressure.

• Cost-Effective Maintenance: By securing and protecting the proximity probe, the housing reduces the need for frequent replacements or repairs, offering long-term cost savings and increasing the overall reliability of machinery.

• Easy to Install: The housing comes with a bolt-on mounting configuration, allowing for straightforward installation and secure attachment, minimizing the downtime required during setup or replacement.

Frequently Asked Questions (FAQ)

1. What is the Bently Nevada 24701-28-05-00-070-04-02 Proximity Probe Housing Assembly used for?

   • It is designed to protect and stabilize proximity probes used in vibration monitoring systems, ensuring accurate and reliable measurements of machinery vibration.

2. What material is the housing made from?

   • The housing is made of stainless steel, which provides durability and resistance to corrosion, making it suitable for harsh industrial environments.

3. What is the diameter of the housing?

   • The housing body has a diameter of 78.2 mm.

4. How is the housing mounted?

   • The housing is mounted using a bolt-on configuration, ensuring secure attachment to machinery.

5. What is the weight of the housing?

   • The housing weighs 1.8 kg, providing stability and durability in industrial applications.

6. What is the temperature range of the housing?

   • The housing can operate in temperatures ranging from -40°C to +120°C.

7. What is the environmental protection rating of the housing?

   • The housing is rated IP67, which means it is dust-proof and water-resistant, providing protection in harsh industrial environments.

8. Which proximity probes are compatible with this housing?

   • This housing is compatible with Bently Nevada 3300XL proximity probes.

9. What industries use this housing assembly?

   • This housing is used in industries such as power generation, oil and gas, mining, water treatment, and manufacturing.

10. What is the pressure rating of the housing?

    • The housing can withstand a pressure rating of up to 30 psi, making it suitable for use in pressure-sensitive applications.
