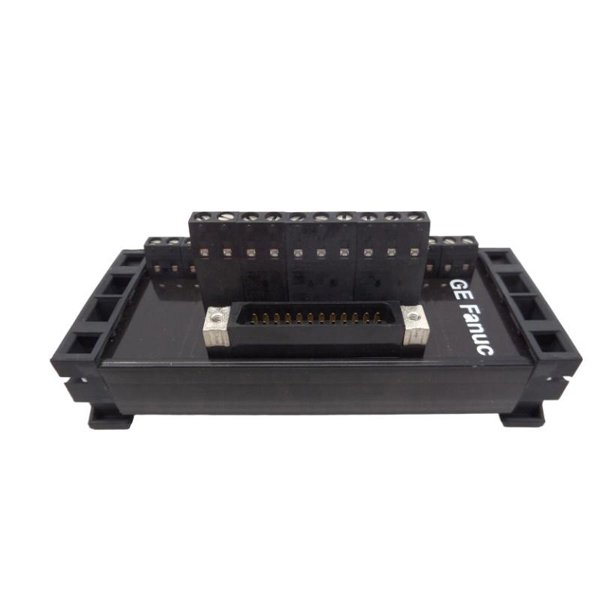

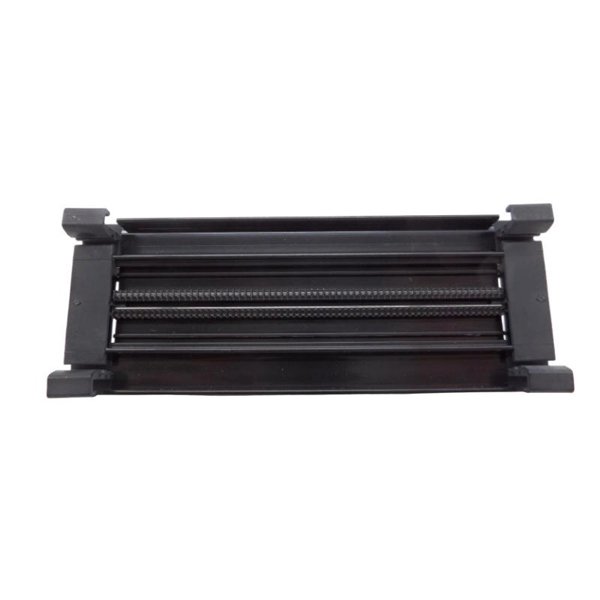

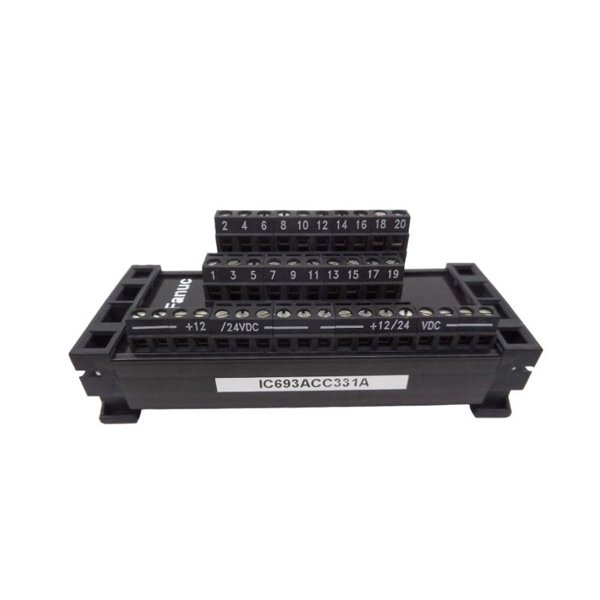

The GE IC693ACC331 TBQC Base is a crucial component in GE’s PLC (Programmable Logic Controller) systems. It is specifically designed to serve as the base for the IC693 series, allowing for the attachment of various I/O modules and communication adapters, facilitating easy integration into control systems. The TBQC Base is built for rugged industrial environments, offering exceptional performance, reliability, and ease of use.

This module provides the backbone for connecting and organizing I/O modules, simplifying system design, maintenance, and expansion. As part of GE’s widely used Series 90-30 PLC system, the IC693ACC331 ensures compatibility with a range of other modules, ensuring seamless communication and control for automation systems. The TBQC Base is known for its efficiency and robust design, making it an ideal choice for industrial control and automation applications.

Product Specifications

Below are the detailed specifications for the GE IC693ACC331 TBQC Base:

Applications of the GE IC693ACC331 TBQC Base

The GE IC693ACC331 TBQC Base is widely used in industrial automation systems, where it provides critical interconnectivity between different components of a PLC system. Key applications include:

• Factory Automation: Used in automation systems to manage control processes in industries such as automotive, food and beverage, and manufacturing.

• Process Control: Enables integration of various I/O modules for controlling devices such as pumps, actuators, and sensors in process industries.

• Building Management Systems (BMS): It helps in building control for systems like HVAC, lighting, and energy management.

• SCADA Systems: Common in SCADA applications, it helps with the integration of multiple I/O devices, supporting remote monitoring and control.

• Safety Systems: It is used in critical safety applications to integrate emergency shutdown systems, alarms, and other safety devices.

• Energy Systems: Ideal for energy control systems, allowing for precise control over energy-efficient devices and power distribution systems.

Advantages of the GE IC693ACC331 TBQC Base

1. Modular Design: The TBQC Base allows for easy expansion of your PLC system by adding various I/O modules, increasing the scalability of your automation system.

2. Durability and Robustness: Designed to withstand the rigors of industrial environments, the module operates reliably in temperatures ranging from -20°C to +60°C.

3. Ease of Installation: The unit is designed to mount easily on a DIN rail, simplifying the installation process and reducing setup time.

4. Quick Connect Terminal Blocks: The quick-connect feature ensures fast wiring and reduces installation time, improving operational efficiency.

5. Compatibility: Fully compatible with GE’s IC693 I/O modules, allowing for flexible configuration and system design.

6. Space-Saving Design: With compact dimensions, the module provides a high-density solution for industrial control systems, saving valuable control panel space.

7. Low Power Consumption: Consumes only 3 W of power, making it an energy-efficient choice for demanding industrial systems.

8. Reliability: Provides stable communication and operation within the PLC system, ensuring minimal downtime and maintenance.

9. Industrial Grade: Built to meet industrial standards, the TBQC Base ensures long-term reliability in harsh working conditions.

10. Cost-Effective Solution: Offering reliable performance at a competitive price, it provides an efficient and affordable solution for complex automation systems.

Frequently Asked Questions (FAQ)

1. What is the GE IC693ACC331 TBQC Base used for?

   • It serves as a base for the IC693 I/O modules, providing interconnectivity for automation and control systems.

2. What types of I/O modules can be used with the IC693ACC331?

   • It is compatible with GE’s IC693 series I/O modules.

3. How is the GE IC693ACC331 TBQC Base mounted?

   • It can be mounted on a DIN rail, which allows for easy installation and maintenance.

4. What is the weight of the TBQC Base?

   • The weight of the module is 0.18 kg.

5. What is the power consumption of the GE IC693ACC331?

   • The module consumes 3 W of power during operation.

6. What is the operating temperature range of the IC693ACC331?

   • The operating temperature range is -20°C to +60°C.

7. Can the GE IC693ACC331 be used in outdoor environments?

   • It is designed for indoor use in industrial environments with controlled temperatures.

8. What is the storage temperature range for the TBQC Base?

   • The storage temperature range is -40°C to +85°C.

9. Does the GE IC693ACC331 support any communication protocols?

   • The TBQC Base is used to connect I/O modules to the PLC system, but communication protocols depend on the specific I/O modules used with it.

10. Is the GE IC693ACC331 TBQC Base compatible with other GE PLC systems?

    • Yes, it is designed to be compatible with the GE IC693 series PLC systems and other associated modules.
