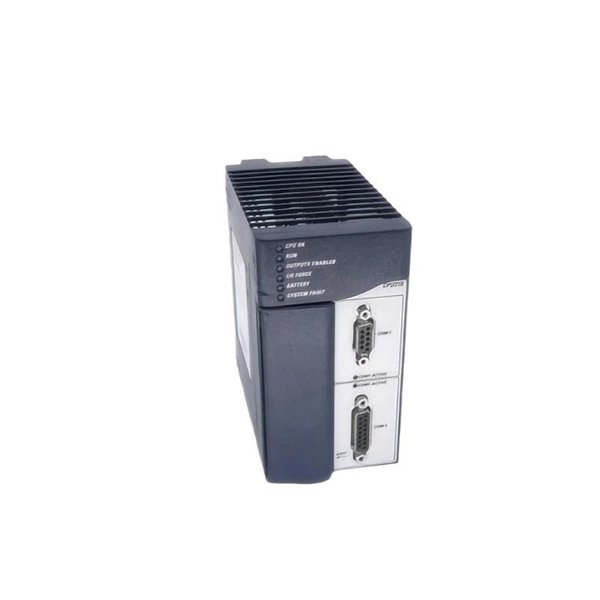

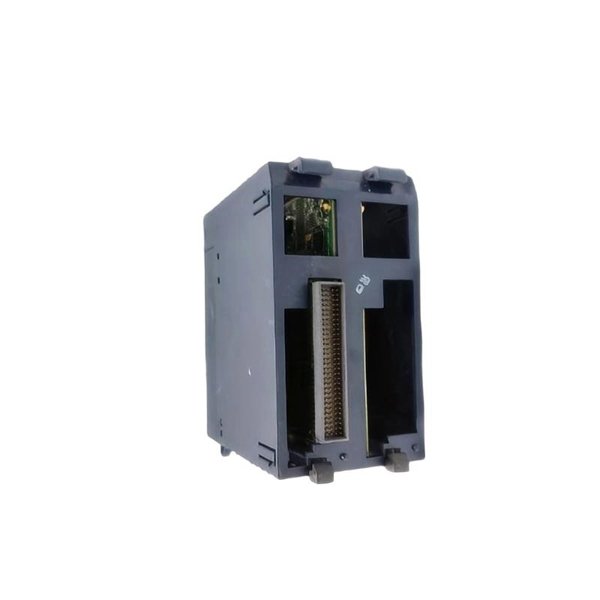

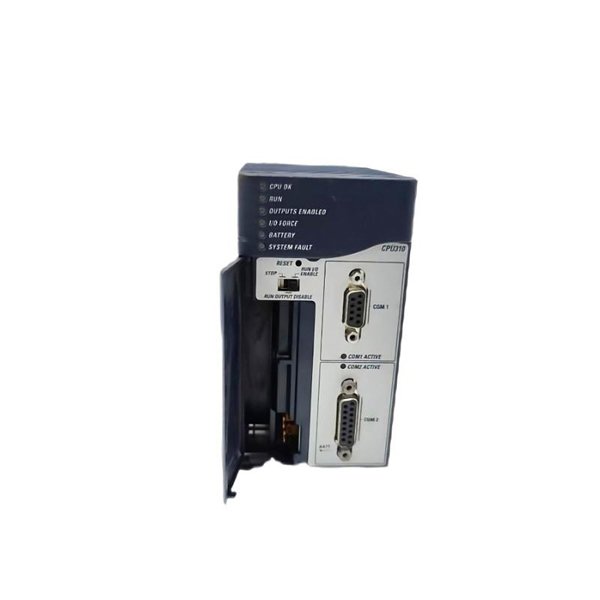

The GE IC695CMU310 is a high-performance CPU redundancy module specifically designed for GE’s PACSystems RX3i platform. It provides hot-standby redundancy, meaning that if the primary CPU fails, the backup CPU automatically and seamlessly takes over control with no loss in system operation. This module plays a critical role in mission-critical automation systems where system downtime is unacceptable.

The IC695CMU310 ensures high availability in industrial automation environments by supporting full redundancy, real-time synchronization between CPUs, and deterministic control. Built with robust and industrial-grade components, this CPU module is an ideal choice for users who require uninterrupted processing capabilities in sectors like power generation, oil & gas, water treatment, transport, and manufacturing automation.

With a modular design, the IC695CMU310 integrates easily with the RX3i system and supports scalable configurations for both small and large applications. It delivers exceptional speed, memory, and communication capabilities in a compact footprint.

Product Specifications

Product Applications

The GE IC695CMU310 is built to support a broad range of high-availability automation systems. Common applications include:

• Power Generation Facilities – For uninterrupted turbine and boiler control.

• Oil & Gas Operations – Ensures consistent control of pipelines, refineries, and offshore platforms.

• Water & Wastewater Treatment Plants – Maintains redundancy in critical water control systems.

• Manufacturing Automation – Enables fault-tolerant production line control.

• Transportation Systems – Used in railway and traffic signal systems requiring constant uptime.

• Pharmaceutical Production – Prevents process interruption in GMP-critical applications.

Product Advantages

• True Hot-Standby Redundancy

  Enables seamless failover to a backup CPU, ensuring no interruption in control or data loss.

• Real-Time Synchronization

  Maintains mirrored application data and system states between primary and backup CPUs.

• Modular & Scalable

  Easily integrates into existing RX3i systems, with support for expansion as needs grow.

• Industry-Proven Reliability

  Used in high-demand industries, backed by GE’s reputation for robust automation solutions.

• Comprehensive Diagnostics

  Built-in fault detection and logging help in predictive maintenance and fast troubleshooting.

• Flexible Communication

  Multiple protocols and ports allow easy connection with SCADA, HMIs, and third-party devices.

Frequently Asked Questions (FAQ)

1. What does hot-standby redundancy mean in IC695CMU310?

   It refers to the automatic switching from a failed primary CPU to a backup CPU with no system interruption.

2. Can this module be used in a non-redundant setup?

   No, it is designed specifically to function as part of a hot-standby redundant CPU pair.

3. How do you synchronize data between primary and backup CPUs?

   The module handles synchronization automatically via the PACSystems redundancy firmware.

4. What happens to I/O modules during CPU switchover?

   The switchover is seamless, and all I/O operations continue without disruption.

5. Is IC695CMU310 compatible with legacy GE modules?

   Yes, it supports RX3i modules and is backward-compatible with Series 90-30 I/O.

6. What kind of memory is used in the CPU?

   It uses battery-backed SRAM for volatile memory and flash for user application storage.

7. Can I use Ethernet protocols with this CPU module?

   Yes, but via Ethernet-enabled modules such as CPE305 or CPE310 paired with the CMU310.

8. What tools are used to program the IC695CMU310?

   GE’s Proficy Machine Edition (PME) is used for programming and configuration.

9. What diagnostic tools are available?

   The module includes onboard diagnostic LEDs, error logs, and can report faults to PME.

10. Where is the IC695CMU310 manufactured?

    It is manufactured in the United States and complies with international certifications.
