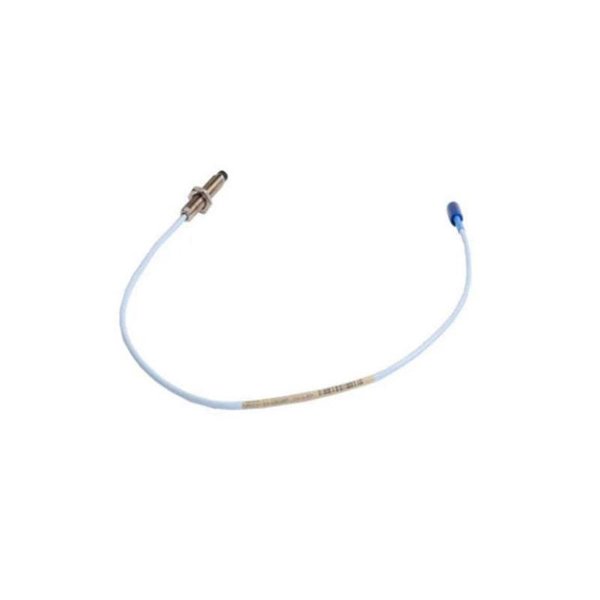

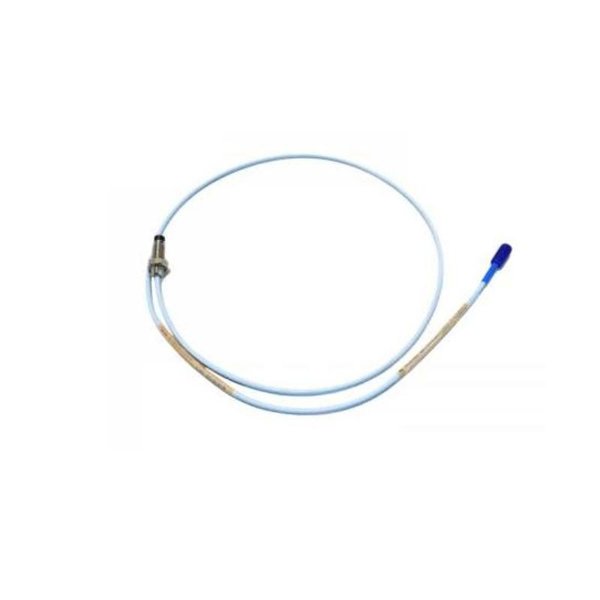

The Bently Nevada 330173-00-09-10-02-05 3300 5mm Proximity Probe is a high-performance inductive sensor specifically designed for monitoring the displacement and vibration of rotating machinery. This probe is part of Bently Nevada’s renowned 3300 series and is ideal for applications where precise, real-time measurements of shaft displacement, vibration, and alignment are crucial to ensuring optimal machine performance and preventing failures.

With a total length of 1 meter and weighing 0.323 kg, the 3300 5mm Proximity Probe is a compact, lightweight solution that is highly effective in tight spaces or machinery that require accurate measurements with minimal installation space. The probe operates over a broad frequency range and provides real-time monitoring, which is essential for predictive maintenance, especially in critical systems like turbines, compressors, pumps, and motors.

Designed for long-lasting performance, this proximity probe is built to withstand the challenging conditions often found in industrial settings, including extreme vibrations, temperature fluctuations, and high humidity. The 3300 5mm Proximity Probe is widely used in industries such as power generation, oil and gas, mining, and manufacturing, offering reliable performance for various types of rotating machinery.

Product Specifications

Applications

The 3300 5mm Proximity Probe is a versatile tool that is widely used in industries for continuous, real-time monitoring of critical machinery. Its primary function is to measure the displacement and vibration of rotating equipment, ensuring that operators can detect early signs of mechanical issues before they lead to major failures. The probe is highly suitable for applications in the following areas:

• Turbine Monitoring: The probe helps monitor turbine shafts for displacement, misalignment, or imbalance, allowing for early intervention before a major failure occurs. This application is critical in power generation plants where turbines are vital to operations.

• Compressor Monitoring: In compressors, the 3300 5mm Proximity Probe is used to measure shaft displacement, ensuring that any rotor imbalance, bearing wear, or misalignment can be detected and corrected early.

• Motor Health Monitoring: The probe can be applied in electric motors to monitor shaft displacement and detect any misalignment, bearing wear, or vibration issues, preventing motor failure and improving operational reliability.

• Pump Health Monitoring: The 3300 5mm Proximity Probe is used in pumps to measure shaft displacement and vibrations, which helps detect issues like cavitation, misalignment, or bearing failure, ensuring the pump operates efficiently.

• Condition Monitoring Systems: When integrated into Bently Nevada’s condition monitoring systems, the probe provides real-time data that enables continuous monitoring of equipment health. This is essential for predictive maintenance, reducing unscheduled downtime and maintenance costs.

• Precision Applications: The 3300 5mm Proximity Probe is particularly useful in applications that require high accuracy, such as in large turbines or critical machines that operate at high speeds or in harsh environments.

Industries such as power generation, chemical processing, oil & gas, and mining rely on the 3300 5mm Proximity Probe for its precision and durability.

Advantages

• High Sensitivity and Accuracy: The 3300 5mm Proximity Probe provides precise measurements of small displacements and vibrations with high sensitivity. This allows for the early detection of mechanical issues such as misalignment, imbalance, or bearing wear.

• Compact and Lightweight Design: With a total length of 1 meter and a weight of 0.323 kg, this proximity probe is compact and easy to install in confined spaces, making it highly versatile for different machinery types.

• Broad Frequency Range: The probe operates over a frequency range of 2 Hz to 100 kHz, allowing it to monitor both low- and high-frequency vibrations. This makes it suitable for a wide variety of rotating equipment.

• Durable Construction: Made of stainless steel, the probe is built to withstand harsh environments, including extreme temperatures, vibrations, and moisture, ensuring long-term reliability.

• Real-Time Monitoring: The probe provides continuous, real-time data acquisition, enabling operators to monitor machinery health and identify issues before they lead to failure.

• Flexible Output Options: The probe features a linear voltage output (10-30 VDC), making it compatible with a wide range of condition monitoring systems.

• Easy Integration: It integrates seamlessly into Bently Nevada’s 3500 series of condition monitoring systems, enhancing its capability for real-time diagnostics and maintenance planning.

• Cost-Effective: The early detection of potential faults helps reduce maintenance costs by preventing unplanned downtime and extending the life of critical machinery.

• Versatile Application: The 3300 5mm Proximity Probe is suitable for a variety of applications, from turbines and compressors to motors and pumps, making it a versatile tool for many industries.

• Low Maintenance Requirements: Designed for minimal maintenance, the probe offers reliable performance with fewer service interventions.

FAQ (Frequently Asked Questions)

1. What is the total length of the Bently Nevada 3300 5mm Proximity Probe?

   • The total length of the probe is 1 meter.

2. How much does the 3300 5mm Proximity Probe weigh?

   • The probe weighs 0.323 kg.

3. What is the frequency range of the 3300 5mm Proximity Probe?

   • The probe operates within a frequency range of 2 Hz to 100 kHz.

4. What type of output does the 3300 5mm Proximity Probe provide?

   • The probe provides a linear voltage output, typically in the range of 10-30 VDC.

5. Can the 3300 5mm Proximity Probe be used for high-speed machinery monitoring?

   • Yes, the probe is well-suited for monitoring high-speed machinery, providing accurate measurements of small displacements and high-frequency vibrations.

6. What is the operating temperature range of the 3300 5mm Proximity Probe?

   • The probe operates in temperatures ranging from -40°C to +85°C.

7. How does the 3300 5mm Proximity Probe aid in predictive maintenance?

   • By providing continuous real-time data, the probe helps operators detect mechanical issues early, enabling proactive maintenance and reducing the risk of unexpected failures.

8. What material is the 3300 5mm Proximity Probe made from?

   • The probe is made from stainless steel, ensuring durability and resistance to harsh conditions.

9. Is the 3300 5mm Proximity Probe compatible with other Bently Nevada systems?

   • Yes, it integrates seamlessly with Bently Nevada’s 3500 series and other condition monitoring systems.

10. Can the 3300 5mm Proximity Probe be used in compressors?

    • Yes, the probe is ideal for compressors, where it detects shaft displacement and helps identify issues such as rotor imbalance and bearing wear.
