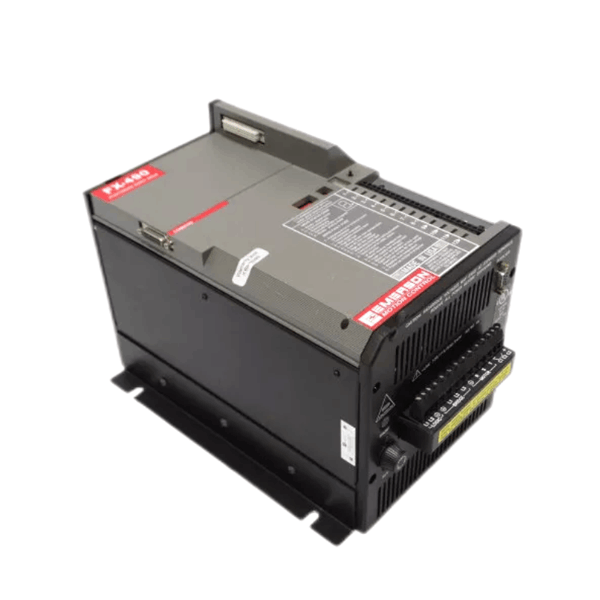

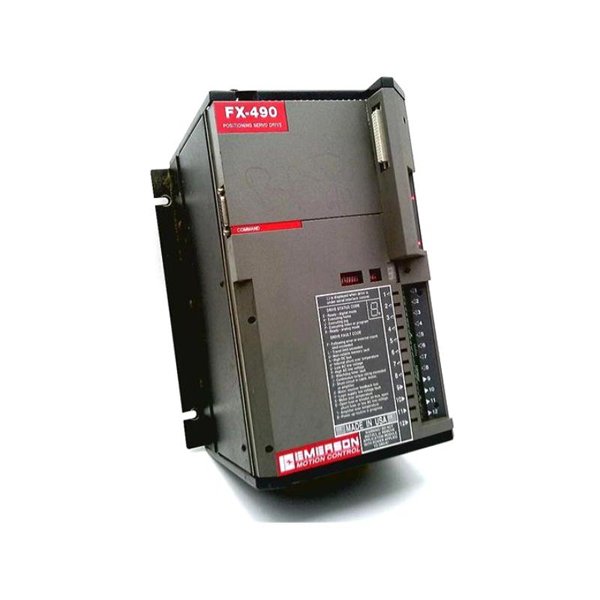

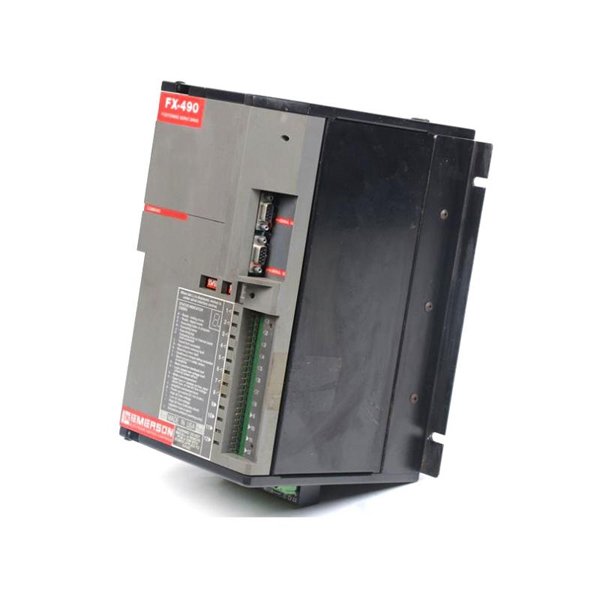

The Emerson FX-490 Positioning Servo Drive is a high-performance motion control solution designed to meet the demanding requirements of industrial automation applications. Engineered with precision, it offers seamless integration with a wide range of servo motors, providing accurate, high-speed, and reliable motion control. The FX-490 is ideal for applications such as robotics, CNC machines, packaging, and material handling systems, where precise positioning and performance are critical. With advanced features like adaptive control, real-time feedback, and flexible programming options, it is a robust solution for optimizing productivity and ensuring system reliability in complex automation environments.

Product Specifications

Product Applications

The Emerson FX-490 Positioning Servo Drive is designed for applications that demand precise motion control. Some of the most common areas where this servo drive is used include:

1. Robotics: Ensures smooth and accurate movement for robotic arms and other robotic systems in manufacturing and automation environments.

2. CNC Machines: Provides high-performance control of axis movement for CNC machinery, enhancing precision in machining operations.

3. Packaging Machines: Controls the movement of packaging systems, ensuring consistent speed and accuracy for packaging products.

4. Material Handling: Ideal for conveyor systems and other material handling equipment, offering precise positioning for loading, unloading, and sorting.

5. Printing Machines: Controls the movement of rollers, conveyors, and other equipment in printing systems, ensuring high-quality printing outputs.

6. Semiconductor Manufacturing: Used in semiconductor production processes where high precision is necessary for delicate tasks.

7. Textile Machines: Provides position control for automated looms, spindles, and other textile machinery.

8. 3D Printing: Enables precise control of extruders and print beds for additive manufacturing applications.

Product Advantages

The FX-490 Positioning Servo Drive offers several advantages that make it an excellent choice for demanding industrial applications:

1. High Precision and Speed: With its advanced motion control algorithms, the FX-490 delivers extremely precise positioning and high-speed operation, ensuring top performance in dynamic systems.

2. Advanced Communication Protocols: Supports EtherCAT and Modbus RTU for flexible and efficient integration with various control systems and networks.

3. Versatile Control Modes: Capable of operating in multiple modes, including position, speed, and torque control, to meet the needs of various applications.

4. Energy Efficiency: Designed to optimize energy consumption, reducing operational costs while maintaining high performance.

5. Compact Design: Its compact form factor allows easy integration into existing systems without taking up excessive space, making it ideal for tight installations.

6. Reliable Feedback: Supports both resolver and incremental encoder feedback devices, providing accurate position and speed information.

7. Safety Features: Equipped with built-in safety features, such as Safe Torque Off (STO) and overload protection, ensuring safe operation in industrial environments.

8. Robust Build Quality: Built to withstand harsh industrial environments, ensuring longevity and minimal downtime.

9. Flexible Integration: Easily integrates with other automation systems, including PLCs, HMIs, and SCADA systems, for streamlined operation.

10. Real-Time Feedback: Provides real-time feedback on system performance, enabling faster responses to any changes in the system’s state.

FAQ

1. What is the Emerson FX-490 Positioning Servo Drive used for?

   • The FX-490 is used for precise motion control in various industrial applications, including robotics, CNC machines, packaging, and material handling.

2. What communication protocols does the FX-490 support?

   • It supports EtherCAT and Modbus RTU communication protocols for flexible system integration.

3. What types of motors are compatible with the FX-490?

   • The FX-490 supports both synchronous and asynchronous motors.

4. What safety features does the FX-490 offer?

   • It includes Safe Torque Off (STO) and overload protection to ensure safe operation in industrial environments.

5. What is the power output range of the FX-490?

   • The FX-490 offers power output from 1.5 kW to 5 kW.

6. What is the operating temperature range of the FX-490?

   • The operating temperature range is 0°C to 40°C.

7. What feedback devices are supported by the FX-490?

   • The FX-490 supports both resolver and incremental encoders for feedback.

8. What is the weight of the FX-490 servo drive?

   • The FX-490 weighs 9.98 kg.

9. Can the FX-490 be used in high-speed applications?

   • Yes, the FX-490 is designed for high-speed, precise control in dynamic systems like robotics and CNC machinery.

10. What industries benefit from the FX-490?

• The FX-490 is ideal for industries such as manufacturing, robotics, packaging, semiconductor production, and textile machinery.
