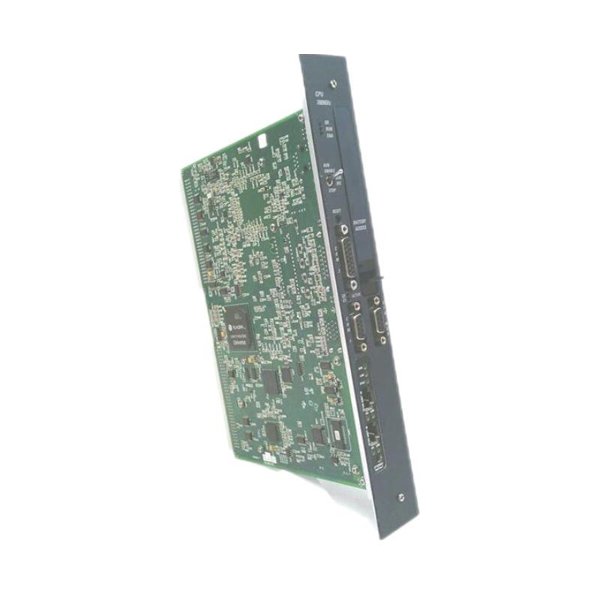

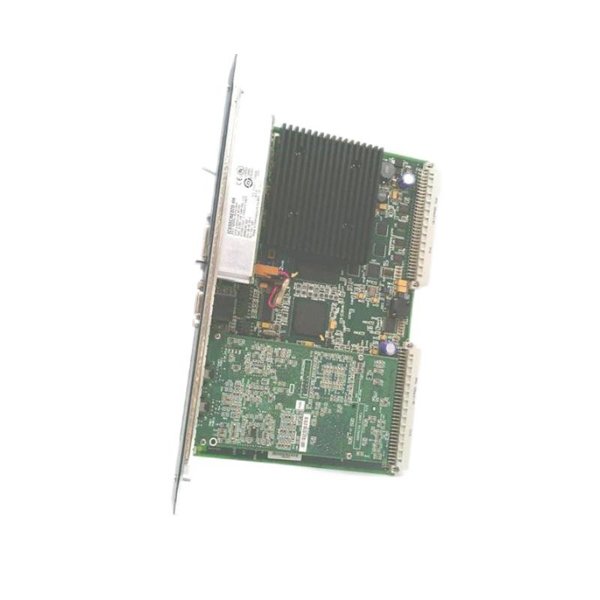

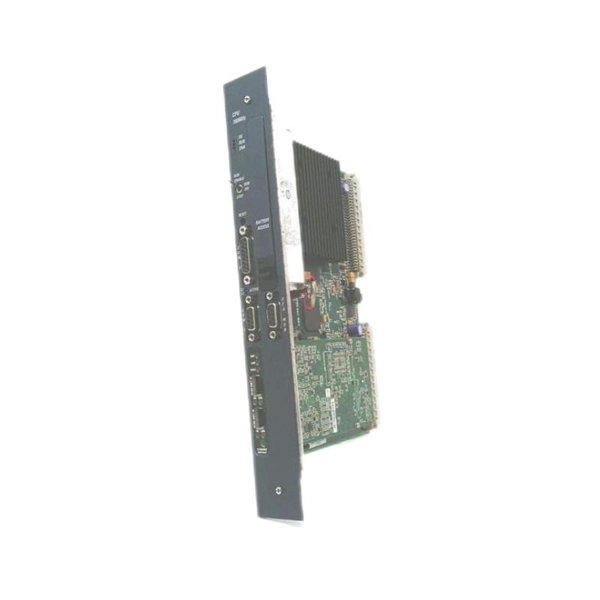

The GE IC698CRE020 is a high-performance CPU module from GE Fanuc’s RX7i series, designed for industrial automation and control systems. It serves as the central processing unit for PACSystems RX7i platforms, offering robust processing power, reliability, and flexibility for complex automation tasks. This module is widely used in industries requiring precise control, such as manufacturing, energy, and transportation.

Product Specifications

Product Applications

The IC698CRE020 is suitable for a wide range of industrial automation applications, including:

• Manufacturing Automation – Controls assembly lines, robotic systems, and CNC machines.

• Energy Management – Used in power plants, substations, and renewable energy systems.

• Transportation Systems – Manages railway signaling and traffic control.

• Water & Wastewater Treatment – Controls pumps, valves, and filtration systems.

• Oil & Gas – Monitors pipelines and drilling operations.

Product Advantages

1. High Processing Power – Intel® Core™-based CPU ensures fast execution of complex logic.

2. Large Memory Capacity – 20 MB user memory supports extensive program storage.

3. Scalability – Compatible with a wide range of I/O modules for system expansion.

4. Robust Communication – Built-in Ethernet and serial ports for seamless integration.

5. Durability – Designed for harsh industrial environments with wide temperature tolerance.

6. Backward Compatibility – Works with existing RX7i systems, reducing upgrade costs.

Frequently Asked Questions (FAQ)

1. What is the maximum I/O capacity of the IC698CRE020?

   It supports up to 512,000 I/O points when used with appropriate expansion modules.

2. Does this CPU module support Ethernet communication?

   Yes, it includes an embedded Ethernet port for network connectivity.

3. Is the IC698CRE020 compatible with older RX7i systems?

   Yes, it is backward compatible with existing RX7i hardware.

4. What programming software is used for this module?

   Proficy Machine Edition (PME) is the recommended software for configuration.

5. Can this CPU handle motion control applications?

   Yes, it supports motion control when paired with appropriate servo modules.

6. What is the operating temperature range?

   It operates reliably between 0°C to 60°C (32°F to 140°F).

7. Does it support redundant configurations?

   No, for redundancy, consider the IC698CRE030 model.

8. How much user memory does it have?

   It provides 20 MB of dedicated user memory.

9. What certifications does this module have?

   It is UL, CE, and RoHS compliant.

10. Can I upgrade from an older CPU to the IC698CRE020?

    Yes, but firmware and configuration adjustments may be required.
