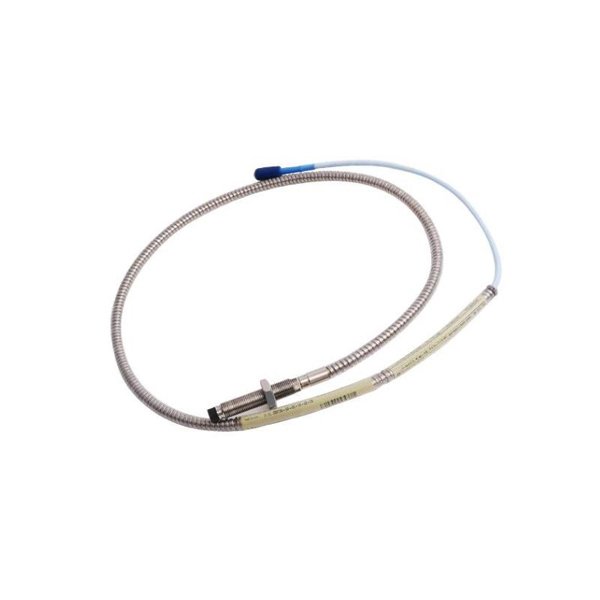

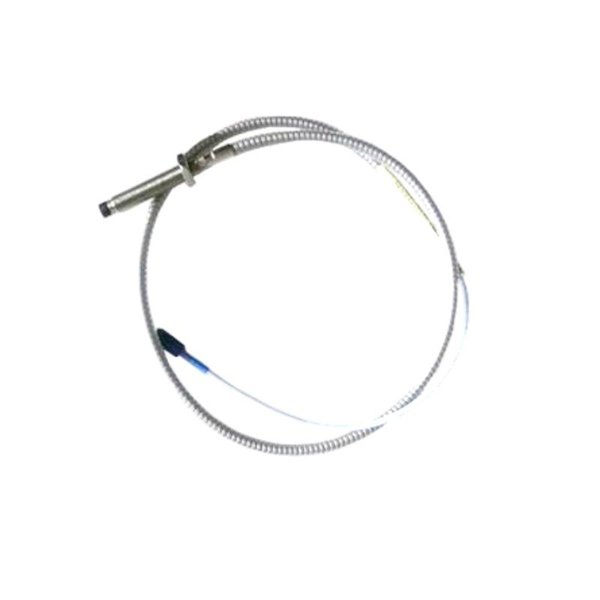

The Bently Nevada 330104-16-21-10-01-00 is a high-precision proximity probe from the 3300 XL series designed for vibration and position monitoring in industrial applications. This 8mm probe (metric version) is widely used in machinery protection systems, where precise monitoring of equipment is essential for maintaining operational integrity. The 3300 XL 8mm proximity probe is a vital component for systems requiring the continuous measurement of displacement, vibration, and position in critical machinery such as motors, turbines, and compressors.

This model is known for its accuracy, reliability, and long-term performance, making it suitable for environments where high levels of precision and data integrity are required. It operates seamlessly with Bently Nevada’s 3500 and 3300 systems, allowing for direct integration into these comprehensive condition monitoring solutions.

Key Features

• High Precision Measurement: Delivers precise and accurate measurement of displacement and vibration in critical equipment.

• Durability and Reliability: Designed to operate in harsh industrial environments, providing reliable performance over extended periods.

• Easy Integration with 3300 and 3500 Systems: Compatible with the 3300 and 3500 series, ensuring seamless integration into existing monitoring setups.

• Robust Construction: Features a rugged design capable of withstanding extreme vibration and environmental conditions.

• Sensitive Measurement Range: Offers a sensitive measurement range, making it ideal for monitoring small vibrations and subtle equipment movement.

• Metric Version: This version of the probe is specifically designed for applications requiring metric measurements.

• Low Maintenance: The probe’s construction and design minimize the need for frequent maintenance or recalibration, making it a low-maintenance solution for long-term operations.

• High Environmental Resistance: Engineered to withstand high-temperature, high-vibration, and extreme environmental conditions, ensuring consistent and accurate performance.

Technical Specifications

Applications

The 3300 XL 8mm Proximity Probe is ideal for applications where precise monitoring of machinery displacement and vibration is crucial. Its uses span various industries:

• Power Generation: Used to monitor the position and displacement of turbine shafts and generators to ensure smooth operation and prevent equipment failure.

• Oil and Gas: Applied in offshore platforms and refineries to monitor critical rotating equipment such as pumps and compressors.

• Manufacturing: Ensures the reliability of production equipment, including motors and industrial machinery, by detecting early signs of mechanical failure.

• Aerospace and Defense: Monitors vibration and position in high-precision machinery used in aircraft and defense equipment.

• Chemical Processing: Used in chemical plants to measure the displacement of pumps, mixers, and other critical equipment, ensuring continuous safe operation.

• Mining and Heavy Industry: Critical in monitoring large-scale equipment such as crushers, mills, and conveyors, where machine health is directly tied to operational safety and efficiency.

Advantages

• Accuracy and Precision: Provides highly accurate readings of displacement and vibration, essential for preventing damage to critical equipment and minimizing downtime.

• Long-Term Reliability: Known for durability and resilience, ensuring long-term operation without frequent recalibration.

• Seamless Integration: Directly integrates with Bently Nevada’s 3300 and 3500 systems, providing a comprehensive monitoring solution.

• Wide Application Range: Suitable for a broad range of industries and applications, from power generation to heavy industrial equipment.

• Cost-Effective: Reduces the need for expensive repairs and downtime by providing early warning of potential failures.

• Compact and Rugged Design: The compact form factor and rugged construction allow it to be used in tight spaces and harsh environments without compromising performance.

• Improved Safety: By enabling precise monitoring of equipment health, it helps prevent accidents and costly repairs, improving the safety of industrial operations.

FAQ

1. What is the primary use of the 3300 XL 8mm proximity probe?

   Answer: The probe is used for displacement, vibration, and position measurement in industrial machinery protection and condition monitoring systems.

2. Which systems is the 3300 XL 8mm probe compatible with?

   Answer: The probe is designed for use with Bently Nevada’s 3300 and 3500 series systems.

3. What types of machines can this probe monitor?

   Answer: It is ideal for monitoring critical machinery such as turbines, compressors, motors, and other rotating equipment.

4. What is the temperature range of the probe?

   Answer: The probe operates within a temperature range of -40°C to +85°C, making it suitable for a wide range of industrial environments.

5. How is the probe connected to the monitoring system?

   Answer: The probe features 2-wire or 4-wire connection options depending on the system configuration.

6. What kind of output does the 3300 XL probe provide?

   Answer: The probe provides an output of 4-20 mA, depending on the system and setup.

7. Is the 3300 XL 8mm probe resistant to environmental conditions?

   Answer: Yes, it is rated IP67, offering protection against dust and water, making it suitable for harsh environments.

8. What is the measurement range of the 3300 XL probe?

   Answer: The probe has a measurement range from 0.5 to 100 mils (12.7 µm to 2.54 mm), suitable for fine displacement and vibration measurements.

9. Can this probe be used in offshore or high-vibration environments?

   Answer: Yes, the probe is designed to withstand high-vibration and harsh industrial conditions, making it ideal for offshore and heavy industrial use.

10. What maintenance is required for the 3300 XL 8mm probe?

    Answer: The probe is designed for low maintenance, with robust construction minimizing the need for frequent calibration or adjustments.
