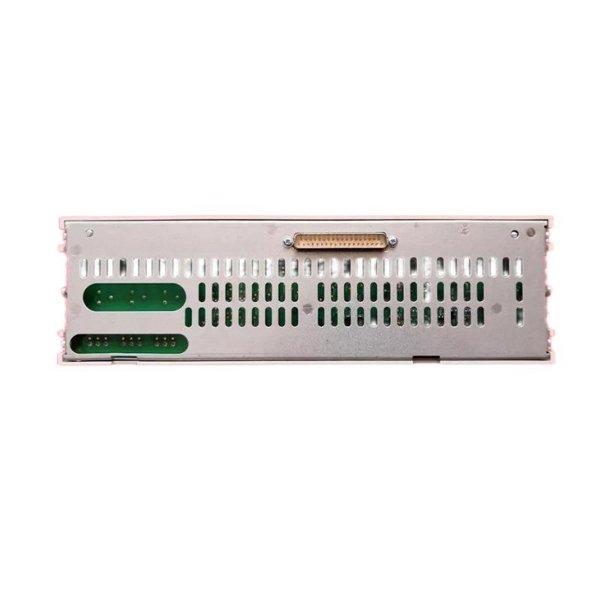

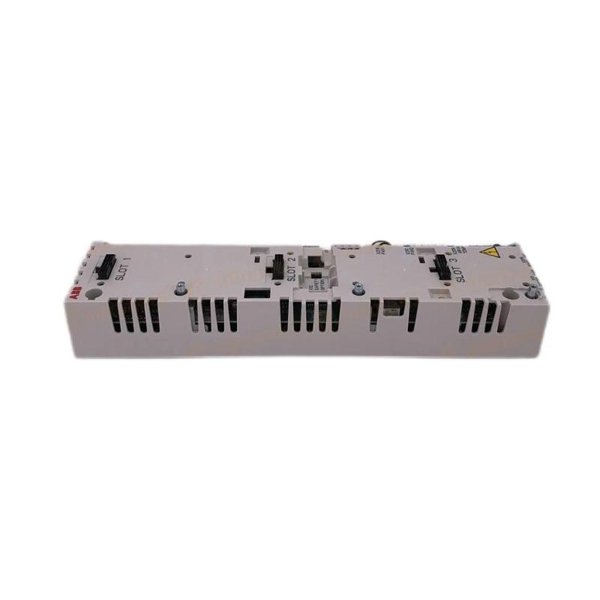

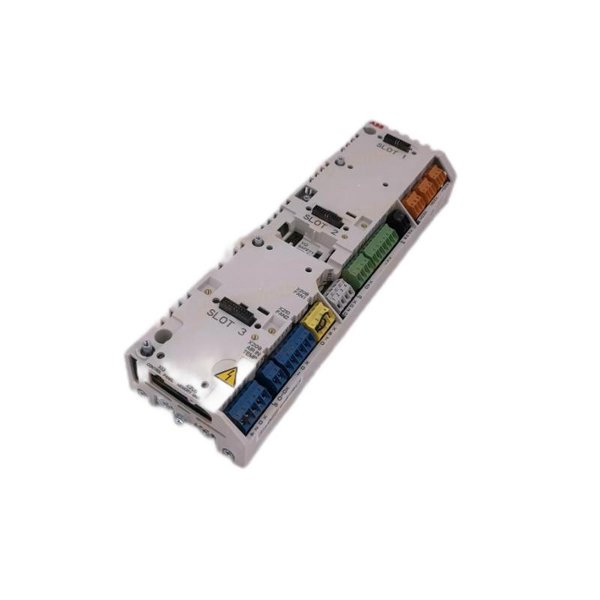

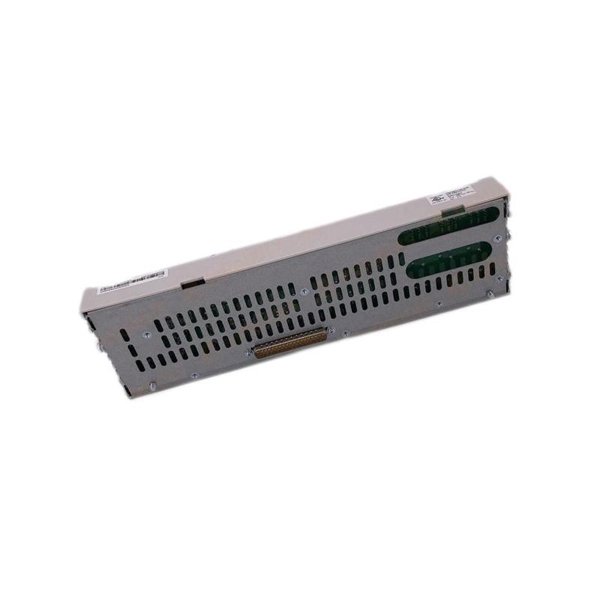

The ABB ZCU-14 3AXD5000005164 is a specialized accessory designed for ABB low-voltage inverter systems, offering enhanced control, communication, and protection functionalities. This module functions as a key component for advanced inverter installations, particularly in complex industrial environments where reliable motor control and energy efficiency are essential.

The ZCU-14 is engineered to complement ABB’s inverter series, providing seamless integration, superior operational reliability, and system flexibility. Its robust design ensures consistent performance, even under demanding conditions such as fluctuating temperatures, electrical noise, and mechanical vibration, making it ideal for mission-critical industrial applications.

Key Features

• Dedicated accessory for ABB inverter and drive systems

• Facilitates advanced control, communication, and system configuration

• Industrial-grade EMC protection for high-reliability operation

• Compact, space-saving design suitable for control panels or motor cabinets

• Enhances system monitoring and diagnostic capabilities

• Simple installation with ABB plug-and-play compatibility

• Supports harsh industrial environments with extended temperature range

Technical Specifications

* Compatibility varies by inverter model. Please refer to ABB technical documentation for details.

Product Advantages

• System Optimization: Provides additional control options, enhancing inverter system performance

• Improved Communication: Supports connection to industrial networks for remote monitoring and control

• Reliable Operation: Designed for continuous use in industrial environments with high electrical noise

• Space-Efficient: Compact form factor ideal for control cabinets with limited space

• Plug-and-Play Integration: Seamless installation with ABB inverter platforms reduces commissioning time

• Enhanced Diagnostics: Enables real-time system feedback, improving maintenance and fault detection

• Durable Build: Engineered to withstand mechanical vibration, temperature variations, and humidity

• Flexible Application: Supports various communication standards, making it adaptable to diverse automation environments

Typical Applications

• Industrial Motor Control: Enhances inverter functionality in applications requiring precision motor management

• Manufacturing Plants: Integrated with ABB inverters for conveyor, pump, and fan control systems

• Oil & Gas Industry: Supports variable-speed drives in energy-intensive processes

• Water & Wastewater Treatment: Optimizes pump and blower control for energy-efficient operations

• HVAC Systems: Facilitates advanced control of fans and compressors for building automation

• Renewable Energy Installations: Complements ABB drives in solar, wind, and energy storage systems

• Marine & Offshore Applications: Ensures stable inverter communication in harsh maritime environments

Frequently Asked Questions (FAQ)

1. What is the primary function of the ABB ZCU-14 3AXD5000005164?

   It serves as a control and communication accessory, expanding the capabilities of ABB inverters.

2. Which inverter models are compatible with the ZCU-14?

   It is compatible with various ABB low-voltage inverters, such as the ACS and ACS880 series, subject to system configuration.

3. Does the ZCU-14 provide additional communication interfaces?

   Yes, depending on the inverter setup, it can enable Modbus, Fieldbus, Ethernet, or other communication protocols.

4. Can the accessory be installed outside the control cabinet?

   The ZCU-14 is designed for installation inside control panels or inverter enclosures to maintain IP20 protection.

5. What is the operating temperature range of the ZCU-14?

   It operates reliably in environments ranging from -20°C to +60°C.

6. Is the ZCU-14 resistant to electrical noise?

   Yes, it complies with IEC 61000-4 standards for electromagnetic compatibility, ensuring reliable operation in noisy environments.

7. How is the ZCU-14 powered?

   It receives power directly from the inverter’s main control circuit, requiring no external power supply.

8. What benefits does the ZCU-14 bring to an inverter system?

   It enhances control flexibility, enables advanced system diagnostics, and supports reliable industrial communication.

9. Is hot-swapping supported by this accessory?

   No, for safety reasons, the ZCU-14 should be installed or replaced with the inverter powered down.

10. What are the physical dimensions and weight of the accessory?

    The module measures 230 x 120 x 40mm and weighs approximately 0.8kg.
