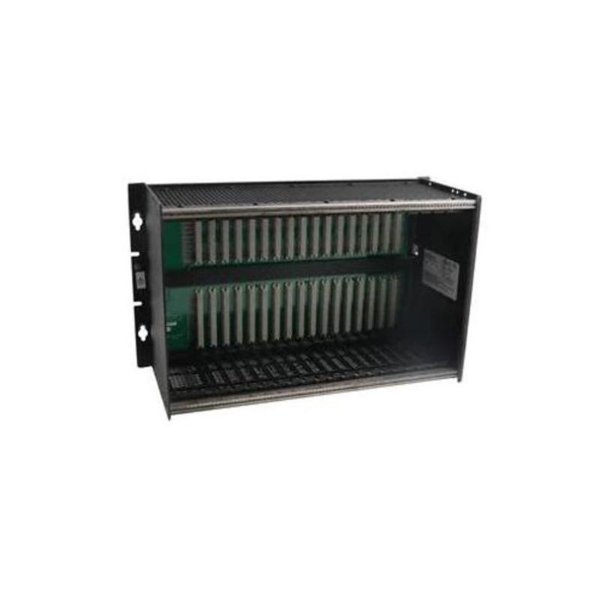

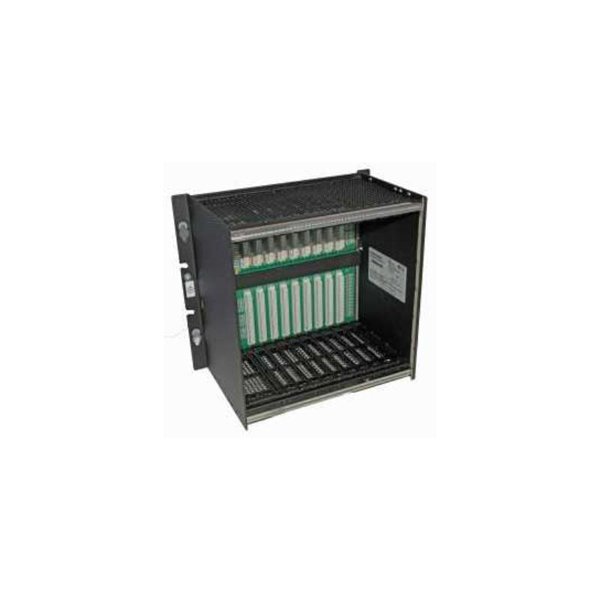

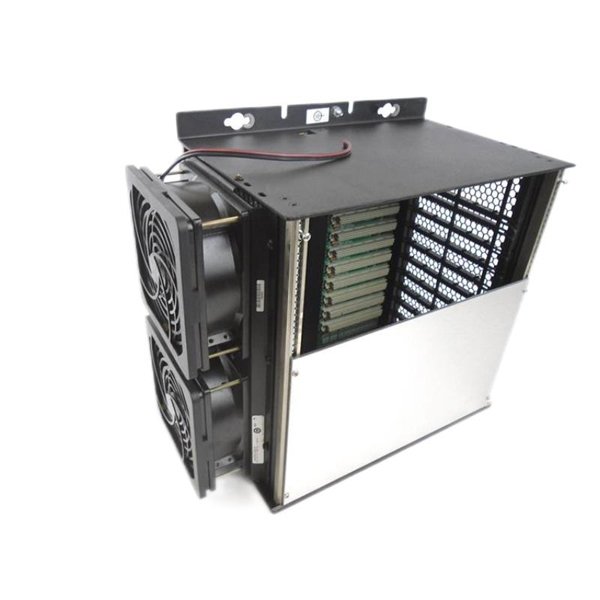

The GE IC698CHS009 is a high-performance 9-slot VME64 backplane module designed for use with the GE Fanuc RX7i PACSystems series. Engineered to provide reliable mechanical and electrical connectivity for RX7i CPUs and modules, it serves as the backbone of modular control systems where robust performance, long-term stability, and scalable expansion are essential. With its VME64 bus interface, the IC698CHS009 enables high-speed communication between the processor and I/O or special-purpose modules.

The backplane is constructed from industrial-grade materials to ensure optimal signal integrity, minimal noise interference, and reliable long-term operation in demanding industrial environments. As a passive component, it does not require power itself, but it facilitates power distribution to all installed modules via the power supply unit mounted to the chassis.

Technical Specifications

Applications

The GE IC698CHS009 is widely used in the following industrial automation environments:

• Process control systems (chemical plants, oil & gas)

• Factory automation (assembly lines, robotics)

• Utility and energy management systems

• Transportation infrastructure (rail, airports)

• Power generation (hydro, thermal, wind turbines)

• Water treatment and distribution control

Its role as a modular backplane makes it central to scalable and high-speed industrial control architectures.

Product Advantages

• Modular Design: Supports flexible system expansion up to 9 modules.

• High-Speed Communication: VME64 bus ensures fast and reliable signal transfer.

• Rugged Construction: Built to withstand harsh industrial conditions.

• Easy Integration: Seamlessly integrates with GE Fanuc RX7i CPUs and modules.

• Standardized Form Factor: Compatible with various I/O, CPU, and specialty modules.

• Reliability: Passive design means no moving parts or complex maintenance.

• Long Lifecycle: Industrial-grade materials ensure years of uninterrupted service.

Frequently Asked Questions (FAQ)

Q1: What modules are compatible with the IC698CHS009 backplane?

A1: It is compatible with RX7i series CPUs, I/O modules, communication interfaces, and power supplies.

Q2: Does the backplane provide power to the modules?

A2: It distributes power, but requires a dedicated RX7i power supply module.

Q3: Can this chassis be mounted in any orientation?

A3: Horizontal rack mounting is recommended for optimal cooling and performance.

Q4: Is this backplane hot-swappable?

A4: No, power should be turned off before adding or removing modules.

Q5: What is the recommended ambient temperature for operation?

A5: Between 0°C and 60°C (32°F to 140°F).

Q6: How do I know if my CPU and modules are properly seated?

A6: Modules should click securely into place; verify visually and via diagnostics.

Q7: Is it compatible with Proficy Machine Edition software?

A7: Yes, the RX7i system (including this backplane) is supported by PME.

Q8: What certifications does the IC698CHS009 comply with?

A8: Typically compliant with CE, UL, and cUL, though certification may vary by batch.

Q9: Can I use this backplane in marine or offshore environments?

A9: Only if installed in an enclosure meeting environmental requirements.

Q10:  What is the GE IC698CHS009 module used for?

A10: The GE IC698CHS009 is a communication module designed for the RX7i PACSystem. It provides high-speed serial communication support for industrial automation applications.
