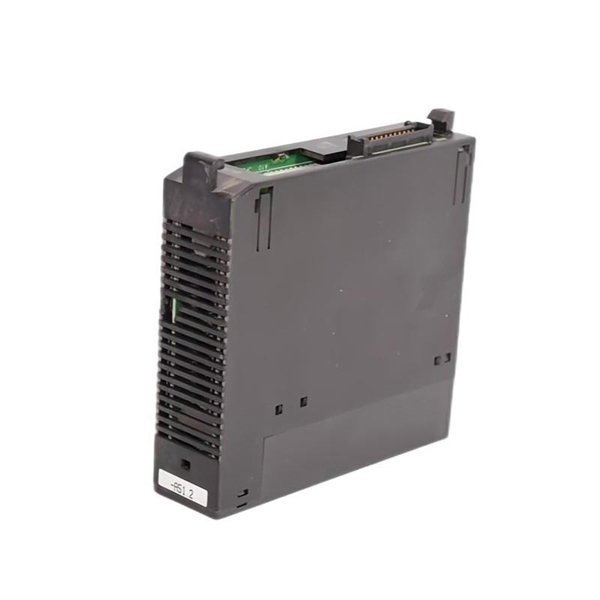

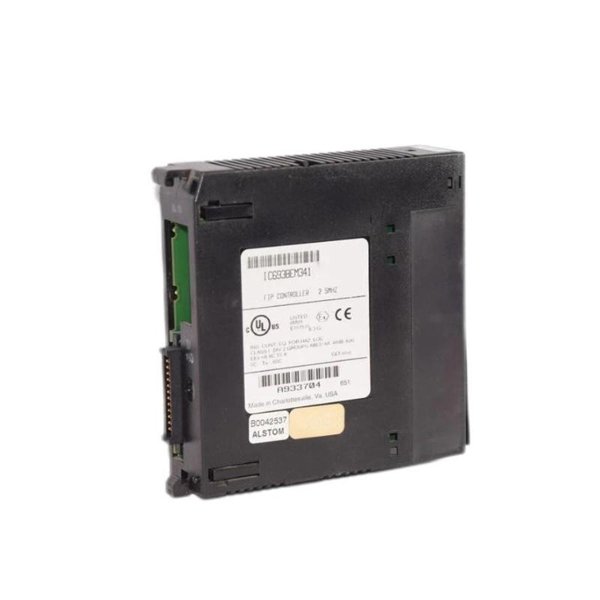

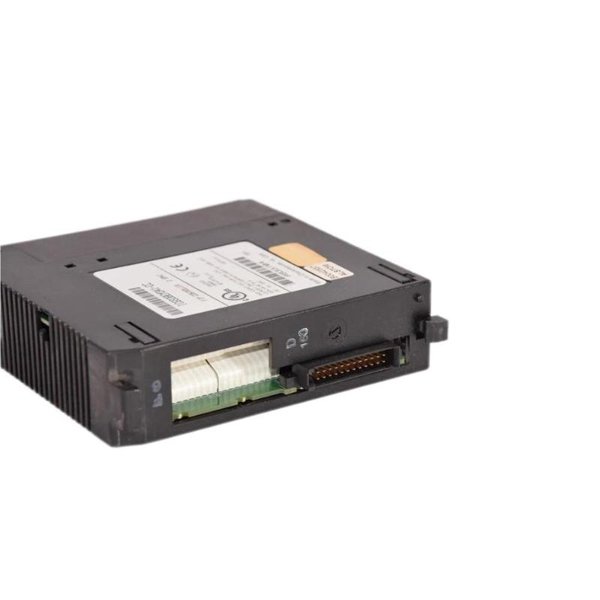

The GE IC693BEM341 is a Bus Controller module specifically designed for use within the GE Fanuc Series 90-30 PLC system. It acts as a vital communication bridge between the CPU and other intelligent devices or remote I/O systems connected via the GE Genius I/O bus. This module enables high-speed, efficient, and reliable data transfer in real-time industrial control environments, ensuring seamless integration across diverse automation components.

The IC693BEM341 is installed in a Series 90-30 baseplate and communicates directly with the CPU, handling all I/O bus traffic on the Genius Bus. It supports both discrete and analog I/O and can interface with up to 31 devices on the Genius I/O network. This makes it a suitable solution for scalable, distributed control systems in industrial applications that demand dependable, high-performance communications.

Product Specifications

Product Applications

The GE IC693BEM341 is widely used in various industrial automation settings that require distributed I/O communication and process control. Common application areas include:

• Manufacturing plants for assembly line coordination

• Water and wastewater treatment facilities

• Material handling and robotics

• Automotive and packaging systems

• Power and energy management solutions

• Pharmaceutical and chemical processing plants

Product Advantages

• High Compatibility

  Seamlessly integrates with existing Series 90-30 PLC hardware and Genius I/O modules.

• Robust and Reliable Communication

  Ensures real-time, deterministic communication with up to 31 devices on a single bus.

• Efficient Diagnostics

  Built-in diagnostics provide immediate feedback on communication status and potential faults.

• Flexible Architecture

  Supports both discrete and analog I/O modules, offering versatility in system design.

• Cost-Effective Expansion

  Reduces wiring and infrastructure cost by enabling remote I/O access over a single communication bus.

• Industrial-Grade Durability

  Withstands harsh industrial environments with wide operating temperature and humidity ranges.

FAQs

1. What is the main function of the IC693BEM341 module?

   It serves as a Genius I/O Bus Controller, facilitating communication between the PLC CPU and remote I/O devices.

2. Can the IC693BEM341 be used with Series 90-70?

   No, it is specifically designed for the GE Fanuc Series 90-30 platform.

3. How many devices can it support on the Genius Bus?

   Up to 31 devices can be connected and addressed on the bus.

4. Does the module support hot-swapping?

   No, the IC693BEM341 does not support hot-swapping. Power should be turned off before removal or insertion.

5. What type of I/O does it support?

   It supports both discrete and analog Genius I/O blocks.

6. Is this module compatible with third-party devices?

   Only if those devices are Genius I/O compatible or certified for Genius Bus.

7. What is the recommended cable for Genius Bus?

   Belden 9463 or equivalent twisted-pair cable is commonly used for Genius Bus networks.

8. Does the module have status indicators?

   Yes, it includes LED indicators that show communication and module status.

9. What are the environmental specifications for this unit?

   It operates between 0°C to 60°C and up to 95% non-condensing humidity.

10. How is the IC693BEM341 powered?

    It draws power from the Series 90-30 backplane (450 mA at 5V).
