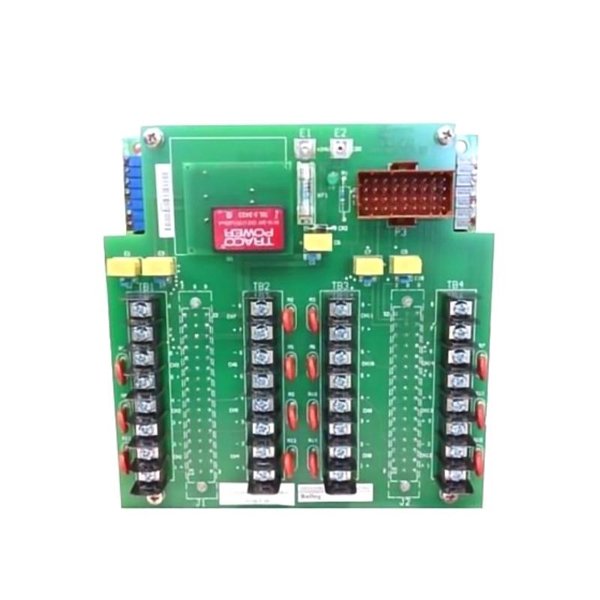

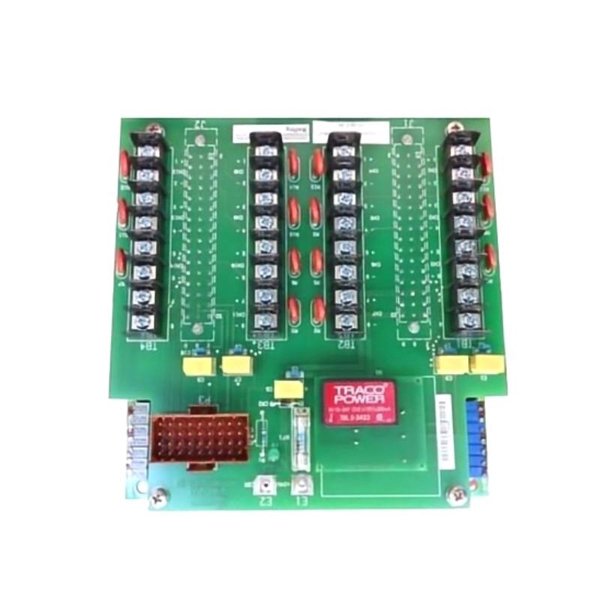

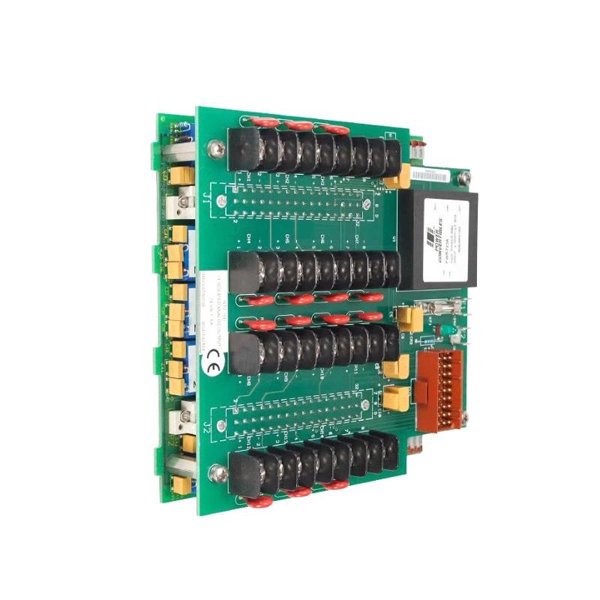

The ABB Bailey NTU-7U0 is an Isolated Analog Termination Unit designed for use in the Bailey INFI 90 and Net 90 Distributed Control Systems (DCS). This unit provides reliable, electrically isolated terminations for analog input or output signals, bridging the field instrumentation and signal processing modules (e.g., IMASI or IMASO).

The NTU-7U0 is engineered to ensure signal integrity, noise immunity, and galvanic isolation, which are critical when dealing with sensitive analog measurements such as temperature, pressure, flow, or level. It supports clean termination of loop-powered or externally powered 4–20 mA or voltage-based signals and provides safe interfacing with both grounded and ungrounded field devices.

This termination unit plays a crucial role in reducing electromagnetic interference (EMI), preventing ground loops, and maintaining the accuracy of analog readings across long-distance field cabling. Its rugged construction and passive design make it suitable for demanding industrial automation environments, ensuring high system reliability and ease of maintenance.

Product Specifications

Product Applications

The NTU-7U0 is widely applied in analog signal interfacing environments, especially in plants and facilities that require robust isolation to protect signal integrity and system uptime. Application examples include:

• Power Plants – Termination for 4–20 mA loop signals from RTDs, thermocouples, and pressure transmitters.

• Chemical and Petrochemical Plants – Interfaces analog output signals to valve positioners and PID loop controllers.

• Water and Wastewater Treatment – Captures analog readings from level sensors, flow meters, and pH analyzers.

• Pulp & Paper Industry – Isolates analog signals from process tanks, conveyors, and steam management systems.

• Food & Beverage Plants – Ensures clean termination of analog control loops related to temperature and pressure.

• Metals and Mining – Provides EMI-resistant analog input handling for vibration sensors, torque controllers, and load cells.

Product Advantages

• Galvanic Isolation: Protects both the control system and field equipment from voltage transients and ground loops.

• Signal Integrity: Enhances the accuracy and stability of analog signals over long distances.

• Legacy System Support: Fully compatible with ABB Bailey INFI 90 and Net 90 control environments.

• Low Maintenance: Passive, non-powered design reduces component failure risks and simplifies upkeep.

• Field-Proven Reliability: Extensively deployed in high-noise and high-EMI industrial sectors.

• Flexible Mounting: Suitable for control panels, racks, and I/O cabinets.

• Precision Manufacturing: Conformal coating and high-quality terminal blocks ensure long-lasting electrical performance.

• Easy Integration: Supports loop-powered and externally powered signal devices without special wiring changes.

• Reduced Downtime Risk: Isolation helps avoid cascading faults across connected systems.

• ABB Lifecycle Support: Benefits from ABB’s long-term parts availability and service continuity programs.

Frequently Asked Questions (FAQ)

1. What kind of isolation does the NTU-7U0 provide?

   It offers galvanic isolation between analog signal channels and from each channel to ground, protecting the control system from voltage differences and EMI.

2. Can this unit handle both current and voltage signals?

   Yes, the NTU-7U0 is compatible with standard 4–20 mA, 1–5 V, and 0–10 V analog signals, depending on the connected I/O module.

3. Is external power required for this termination unit?

   No, the NTU-7U0 is a passive device and requires no separate power supply.

4. What I/O modules are typically used with the NTU-7U0?

   Analog input/output modules such as IMASI13, IMASI23, IMASO01, and IMASO02 are commonly used in conjunction with this unit.

5. What wiring practices ensure optimal performance?

   Use shielded cables for signal integrity, maintain proper grounding, and follow ABB terminal torque specifications to prevent signal drop or noise.

6. Can I mount the NTU-7U0 vertically in a tight cabinet space?

   Yes, the compact footprint and rack-mount design allow for flexible installation in both horizontal and vertical orientations within enclosures.

7. Is there built-in overvoltage protection on this unit?

   While it provides isolation, external surge or overvoltage protection devices should be used in environments prone to transients or lightning.

8. Does the NTU-7U0 support redundant analog signal routing?

   Redundant wiring can be implemented at the system design level, but this unit itself does not provide automatic redundancy switching.

9. How often should this unit be inspected or maintained?

   Annual inspection is recommended to check for loose terminals, signs of oxidation, or mechanical wear.

10. Can it be used in hazardous (Class I Div 2) environments?

    When installed within certified explosion-proof cabinets and using intrinsically safe barriers where required, it can be used as part of a hazardous area installation.
