Manufacturer:Emerson
Product Number:VE4032S1T2B1 KJ3201X1-EA1
Product Type:Red Discrete Terminal Block
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.3 kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

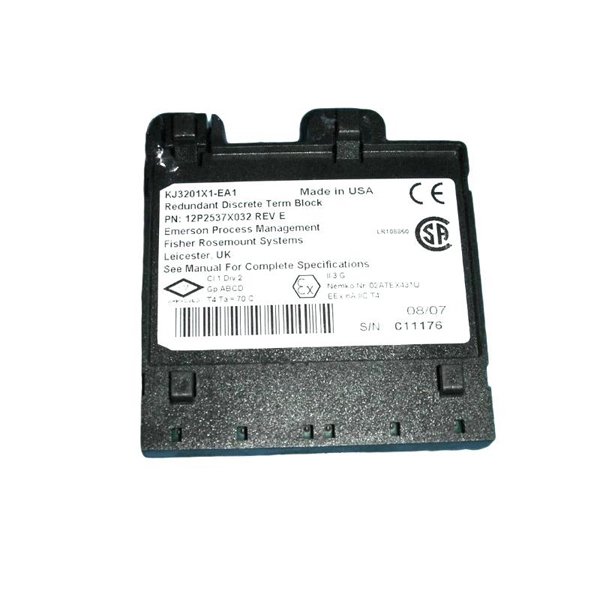

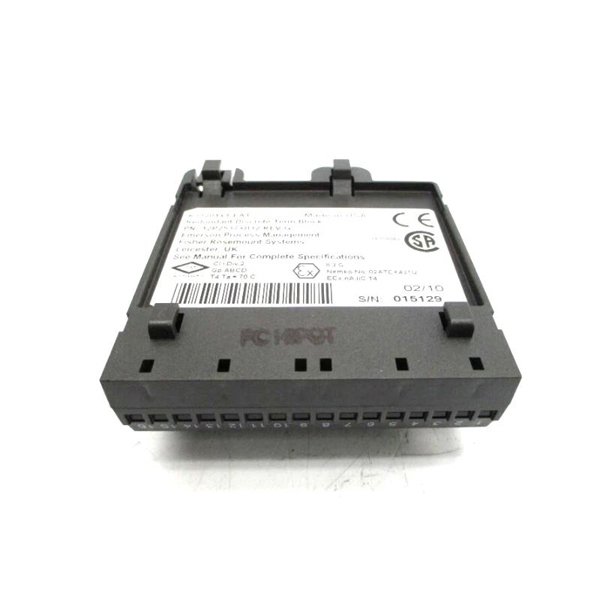

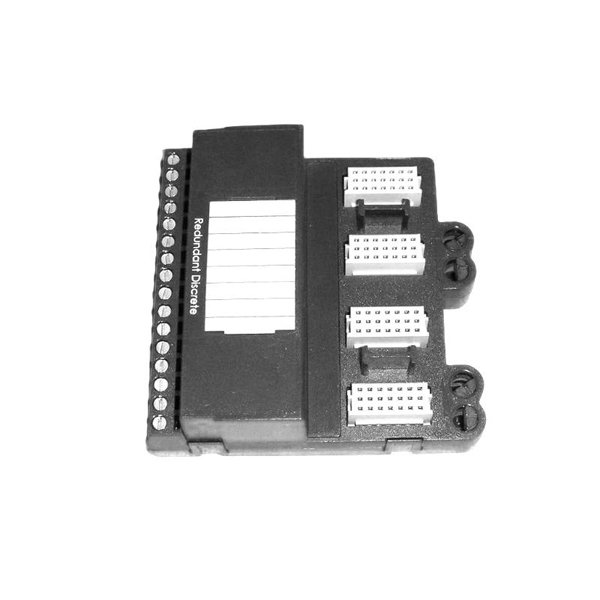

The Emerson VE4032S1T2B1 KJ3201X1-EA1 Red Discrete Terminal Block is a reliable component designed for use in the DeltaV™ Electronic Marshalling system. It supports discrete signal connections and ensures safe and stable communication in process control environments, especially in hazardous areas (Zone 2). The terminal block is optimized for rugged industrial conditions and delivers dependable operation across a wide temperature range.
| Parameter | Specification |
|---|---|
| Product Model | VE4032S1T2B1 / KJ3201X1-EA1 |
| Type | Red Discrete Terminal Block |
| Input Power Rating | 30 VDC @ 1 A per channel, 3 A per card |
| Operating Temperature | -40 °C to +70 °C |
| Shock | 10 g, 11 ms half-sine wave |
| Vibration | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Humidity | 5–95% RH, non-condensing |
| Contaminant Classification | ISA-S71.04 Class G3 |
| Approvals | ATEX, IECEx, FM, UKEX (Zone 2 Certified) |
| Maintenance | No calibration required, no serviceable parts |
| Dimensions (W x H x D) | 107 × 41 × 105 mm |
| Weight | 0.3 kg |
Discrete signal connection in process automation systems
Hazardous area Zone 2 installations
DeltaV™ Electronic Marshalling CHARM I/O Subsystem
Refineries, chemical plants, and power facilities
Applications requiring high environmental resilience
Certified for use in hazardous locations
No calibration or maintenance required
High mechanical durability (shock and vibration resistant)
Wide operating temperature range
Easy integration with DeltaV™ systems
Compact and lightweight design
1. What is the main function of the KJ3201X1-EA1 terminal block?
It serves as a discrete signal terminal block for connecting field wiring in the DeltaV™ CHARM I/O Subsystem.
2. Can this module be used in hazardous areas?
Yes, it is certified for Zone 2 hazardous area installations under multiple international standards (ATEX, FM, IECEx).
3. What kind of input power does it support?
It supports 30 VDC at 1 A per channel and 3 A per card.
4. Is this unit hot-swappable?
No, it must not be inserted or removed while the system is powered.
5. What environmental conditions can it operate under?
It operates in -40 °C to +70 °C and 5–95% non-condensing humidity.
6. Does it require regular calibration?
No, calibration is not required.
7. Is this module suitable for use in areas with airborne contaminants?
Yes, it meets ISA-S71.04 Class G3 requirements.
8. Are there any user-serviceable parts?
No, the unit should not be disassembled and contains no user-serviceable components.
9. What vibration resistance does the module support?
It tolerates 1 mm peak-to-peak from 2 to 13.2 Hz, and 0.7 g from 13.2 to 150 Hz.
10. What is the standard weight and dimension of the unit?
The unit measures 107 x 41 x 105 mm and weighs 0.3 kg.
