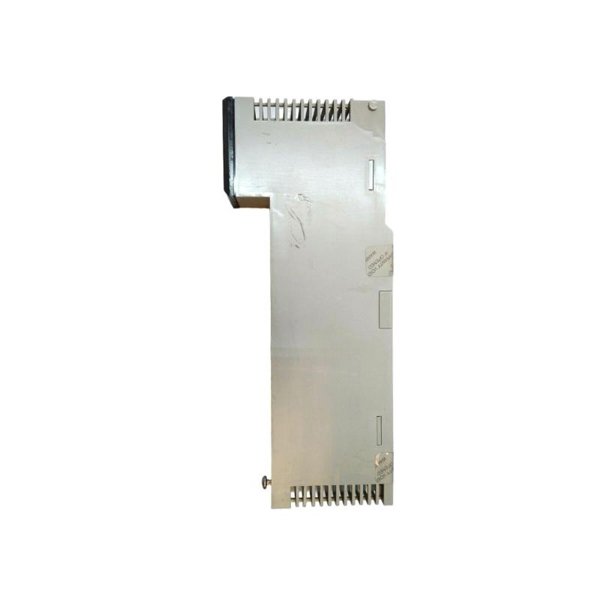

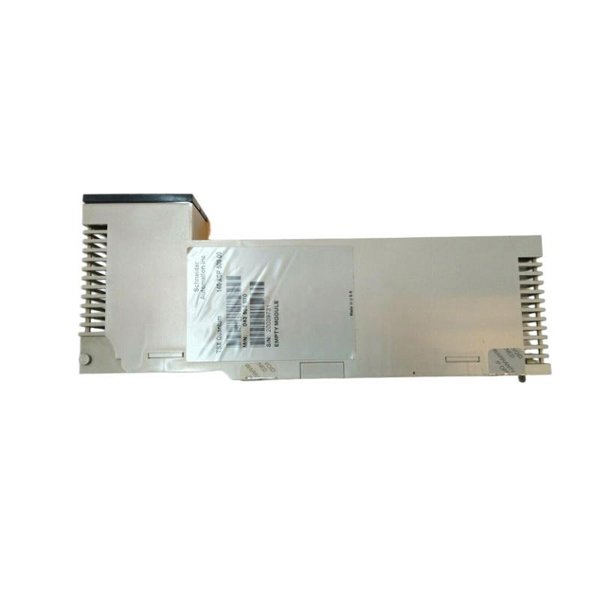

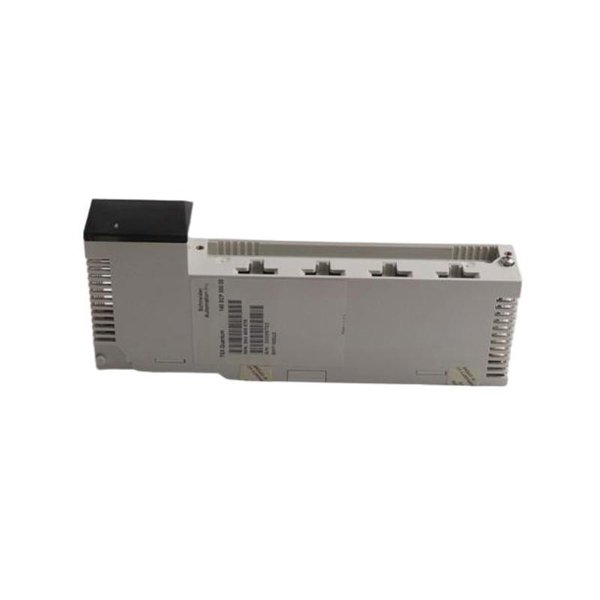

The Schneider Electric 140XCP50000 Discrete I/O Module is designed to expand the digital input and output capacity of Schneider’s Modicon Quantum Series PLCs, providing dependable, high-speed I/O handling for demanding industrial automation applications. This module offers robust digital connectivity for controlling and monitoring discrete devices, such as sensors, switches, actuators, and relays, enhancing system flexibility and control capabilities.

As part of the Quantum platform, the 140XCP50000 ensures seamless integration, high system reliability, and easy configuration via Unity Pro or EcoStruxure Control Expert software, making it an ideal choice for complex manufacturing, process, and infrastructure applications.

Key Features

• Digital I/O expansion module for Modicon Quantum Series PLCs

• Supports both discrete inputs and outputs for versatile control tasks

• High-speed signal processing for real-time machine operation

• Rugged industrial design for harsh operating environments

• Seamless integration with Unity Pro programming environment

• Supports standard 24 VDC digital signals (input/output dependent on configuration)

• Reliable isolation between channels and control circuitry

• Designed for easy installation and system expansion

• LED indicators for real-time status and diagnostics

• Enhances the scalability and flexibility of Quantum PLC systems

Technical Specifications

Product Advantages

• Flexible I/O Expansion: Adds essential digital input and output channels to Quantum PLC systems

• High-Speed Operation: Optimized for time-sensitive discrete control and machine operations

• System Integration: Fully compatible with Modicon Quantum architecture and Unity Pro software

• Industrial Durability: Engineered to withstand harsh conditions, temperature fluctuations, and electrical noise

• Enhanced Diagnostics: LED indicators provide immediate channel and module status for maintenance and troubleshooting

• Scalability: Supports growing system requirements, allowing incremental expansion of control capabilities

• Reliable Isolation: Electrical isolation protects system integrity and operator safety

• Global Compliance: Meets international standards for industrial control and automation applications

• Cost-Effective Solution: Increases system functionality without requiring major hardware changes

• Simplified Installation: Modular form factor enables easy mounting and quick configuration

Industry Applications

The Schneider 140XCP50000 Discrete I/O Module is used in industries requiring reliable digital I/O for monitoring and controlling machinery and processes, including:

• Manufacturing: Machine control, assembly lines, packaging, and robotics

• Oil and Gas: Remote I/O for drilling platforms, pipeline systems, and refineries

• Power Generation: Discrete control for turbines, generators, and plant auxiliaries

• Water and Wastewater Treatment: Monitoring pumps, valves, and plant automation systems

• Metals and Mining: Controlling heavy-duty equipment, conveyors, and safety interlocks

• Chemical and Pharmaceutical: Process control for batch production and material handling

• Infrastructure and Transportation: Automation systems for tunnels, traffic control, and public utilities

Frequently Asked Questions (FAQ)

Q1: What type of I/O does the 140XCP50000 support?

It supports digital (discrete) inputs and outputs, with configurations typically ranging from 16 to 32 channels.

Q2: Is this module compatible with Modicon Quantum PLCs?

Yes, it is designed specifically for use within the Quantum PLC family.

Q3: Can the module be integrated with Unity Pro software?

Absolutely, Unity Pro or EcoStruxure Control Expert are fully supported for programming and diagnostics.

Q4: Does the module provide electrical isolation?

Yes, channels are isolated from the control system up to 500 V RMS to ensure safety and system integrity.

Q5: Is this module suitable for harsh industrial environments?

Yes, it operates reliably in environments with high electrical noise, temperature variations, and humidity.

Q6: What is the input signal voltage?

The standard input voltage is 24 VDC for digital signals.

Q7: How is the I/O module mounted?

It installs directly onto the Quantum PLC backplane for easy system expansion.

Q8: Can the module handle high-speed control?

Yes, it is optimized for real-time machine operations and fast switching.

Q9: Are status indicators available?

Yes, each channel features LED indicators for easy status monitoring and diagnostics.

Q10: Is this module certified for global industrial use?

Yes, it complies with CE, UL, CSA, and RoHS standards, ensuring suitability for worldwide deployment.
