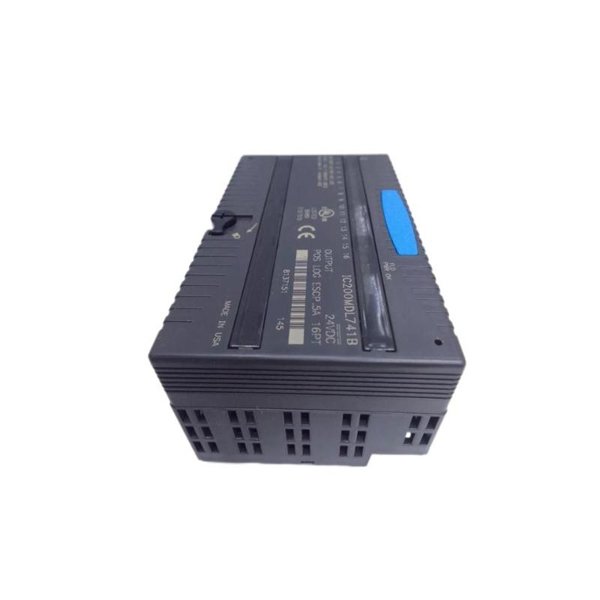

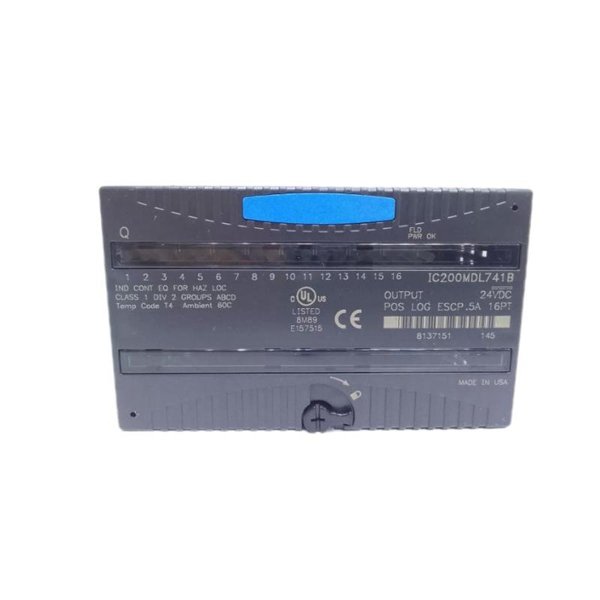

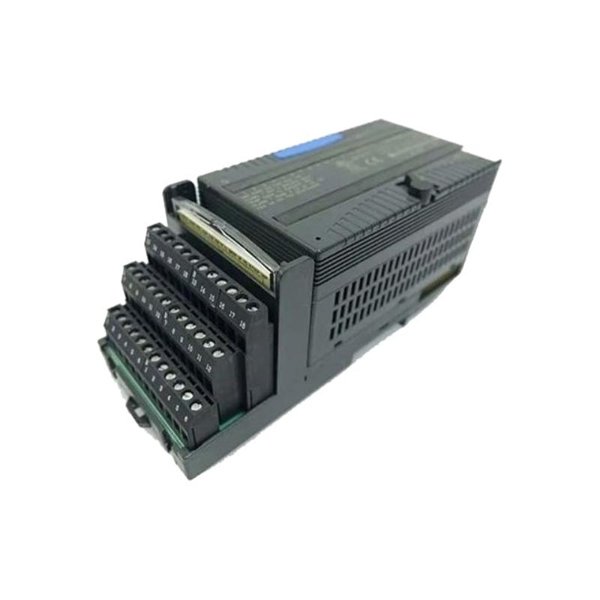

The GE IC200MDL741B VersaMax Discrete Output Module is an integral component designed for use in automated control systems. It is part of the VersaMax modular I/O family, known for its versatility and reliability in industrial automation applications. The module provides discrete outputs to control various devices such as motors, solenoids, and relays. The IC200MDL741B offers robust performance, designed to support high-efficiency systems in harsh environments.

This module offers exceptional flexibility and can easily integrate into GE’s VersaMax PLC systems, allowing for streamlined operations in various industrial environments. Its modular design allows users to easily add or remove components depending on system requirements, making it an ideal solution for scalable control applications.

Product Specifications

Below are the detailed specifications for the GE IC200MDL741B VersaMax Discrete Output Module:

Product Applications

The GE IC200MDL741B VersaMax Discrete Output Module is primarily used in automation systems where discrete control of devices is required. These systems are typically found in industries such as:

• Manufacturing: For controlling assembly line equipment, actuators, and valves.

• Process Control: To manage flow control devices, pumps, and other process machinery.

• Material Handling: For driving motors and other machinery used in conveying and sorting materials.

• Automated Systems: In robotics and packaging automation for controlling various mechanical operations.

• Power Generation: To manage relays and controls for system protection and switching operations.

Product Advantages

The GE IC200MDL741B module comes with several distinct advantages that make it a preferred choice for industrial automation:

1. Reliability: Built for demanding industrial environments with high endurance for temperatures ranging from -20°C to 60°C.

2. Modular Design: The ability to easily add or remove modules makes it highly adaptable for various system sizes and complexities.

3. Easy Integration: Seamlessly integrates with the VersaMax PLC series, providing a straightforward automation setup.

4. Compact Size: The small footprint of the module ensures that it can fit into tight spaces within control cabinets or machinery.

5. High Current Output: With 16 discrete outputs capable of 0.5 A each, this module can handle most industrial control tasks.

6. Durability: Designed for long-term reliability in harsh conditions, it ensures minimal downtime and high system availability.

7. Efficient Power Consumption: The module is optimized for low power consumption, making it energy-efficient for long-term use.

FAQ

1. What is the input voltage for the IC200MDL741B?

   • The IC200MDL741B operates on a 24 VDC input voltage.

2. How many outputs does the IC200MDL741B module have?

   • The module has 16 discrete output channels.

3. What is the maximum output current per channel?

   • The maximum output current per channel is 0.5 A.

4. Can the IC200MDL741B module be used in outdoor environments?

   • The module is designed for industrial environments, but it should be protected from direct exposure to the elements as it is not rated for full outdoor use.

5. What type of mounting is supported?

   • The IC200MDL741B supports DIN rail mounting for easy installation.

6. What is the temperature range for operating the module?

   • The operating temperature range is -20°C to 60°C.

7. Is there any isolation between outputs?

   • Yes, the module provides 1500 V AC isolation for the outputs.

8. What is the weight of the module?

   • The weight of the IC200MDL741B module is 0.1 kg.

9. What applications is this module suitable for?

   • The module is suitable for industrial automation, material handling, process control, and manufacturing systems.

10. How can the IC200MDL741B module be integrated with a VersaMax PLC system?

    • The module is designed for plug-and-play integration with the VersaMax PLC series, allowing for seamless communication and control.
