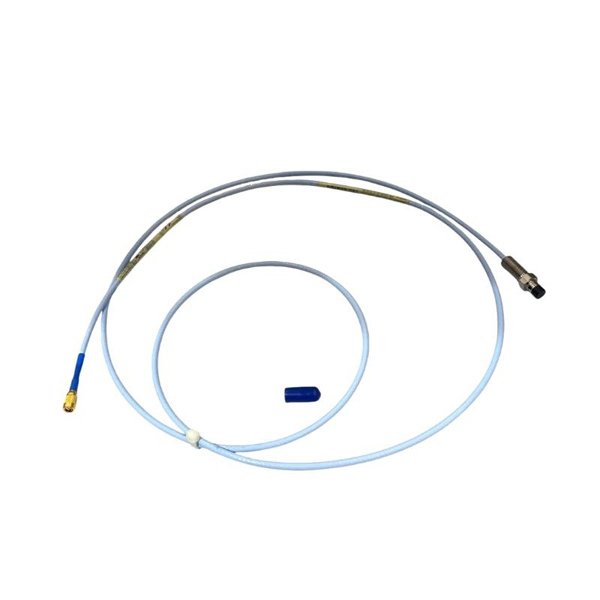

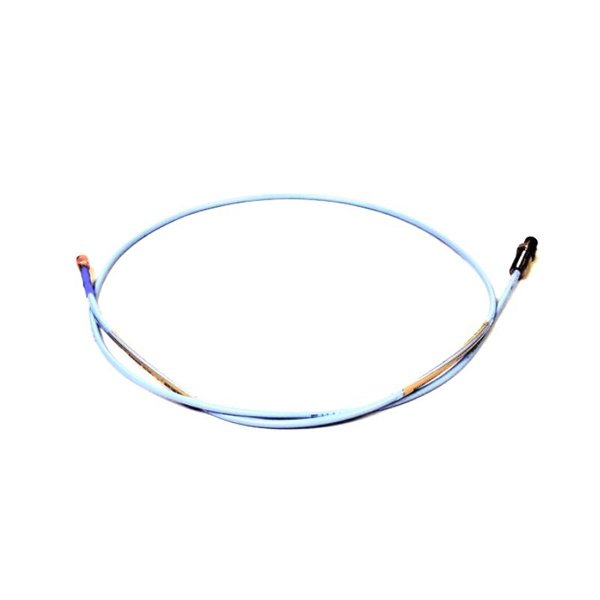

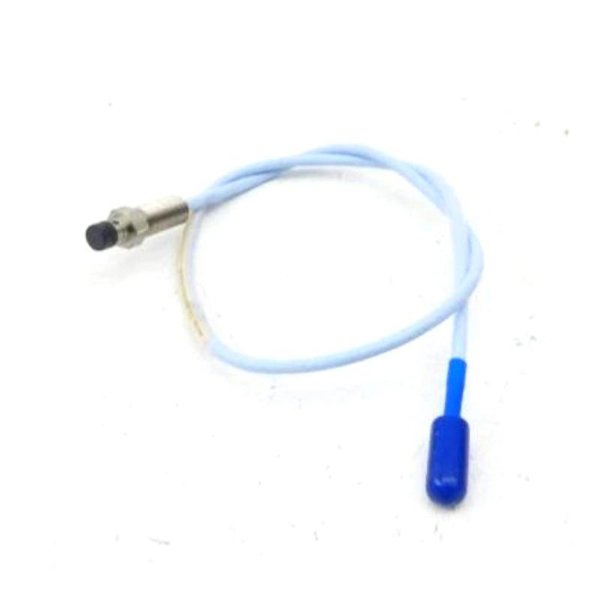

Bently Nevada 330105-02-12-90-02-00 3300 XL 8 mm Reverse Mount Probe
Manufacturer:Bently Nevada
Product Number:330105-02-12-90-02-00
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:1.5 meter
Weight:0.485 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105-02-12-90-02-00 is part of the 3300 XL 8 mm Reverse Mount Proximity Probe series. This probe is designed to detect the distance between the probe tip and a conductive target surface, delivering accurate dynamic (vibration) and static (position) measurements. It is reverse-mounted for applications requiring installation from the opposite side of the target surface.
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position detection
-
Speed measurement via Keyphasor
-
Overspeed protection (with specific configurations)
-
Suitable for high-temperature and harsh industrial environments
Advantages
-
Fully API 670 compliant
-
Interchangeable components (probe, cable, Proximitor sensor)
-
Gold-plated ClickLoc connectors — tool-free, vibration-resistant
-
TipLoc and CableLoc designs improve durability and mechanical integrity
-
Available with FluidLoc cable to prevent oil migration
-
Designed for extended temperature environments
-
Enhanced RFI/EMI immunity without need for metallic shielding
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330105-02-12-90-02-00 |
| Probe Type | 8 mm Reverse Mount |
| Thread | 3/8-24 UNF |
| Cable Type | Standard coaxial, ClickLoc |
| Cable Length (Total) | 1.5 meters |
| Total Weight | 0.485 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Operating Temperature Range | -52°C to +177°C |
| Pressure Seal | Viton® O-ring |
| Recommended Gap | 1.27 mm (50 mils), -9 VDC |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat) |
| Shaft Diameter (Min.) | 50.8 mm (2 in) |
| Min. Cable Bend Radius | 25.4 mm (1.0 in) |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330105-02-12-90-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery using eddy current technology.
Q2: Can this probe be used with any 3300 XL extension cable?
A2: Yes, as long as the combined probe and cable length matches the required Proximitor system length.
Q3: Is the probe compliant with API 670?
A3: Yes, it fully complies with API 670 standards for mechanical configuration, accuracy, and stability.
Q4: What type of connector is used?
A4: It uses a gold-plated ClickLoc miniature coaxial connector that locks with finger torque.
Q5: Does this probe support reverse mounting only?
A5: Yes, it is specifically designed for reverse mounting applications.
Q6: Is it suitable for use in hazardous areas?
A6: Yes, it meets ATEX, IECEx, and CSA standards for hazardous zones with proper installation.
Q7: Can it operate at high temperatures?
A7: Yes, up to 177°C standard, or up to 218°C with ETR versions.
Q8: What happens if probe and extension cable lengths mismatch the Proximitor?
A8: System accuracy and linearity will be compromised; exact length matching is required.
Q9: Does the FluidLoc cable option come with this part number?
A9: No, this model uses the standard cable. FluidLoc is optional and specified differently.
Q10: Is this probe interchangeable with non-XL components?
A10: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
