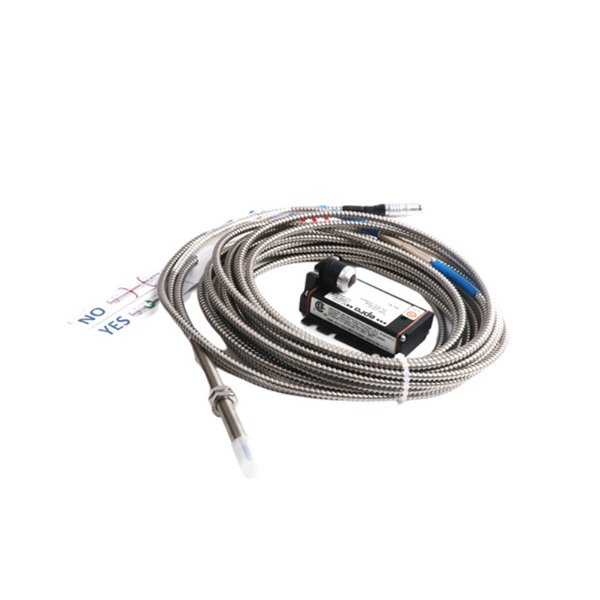

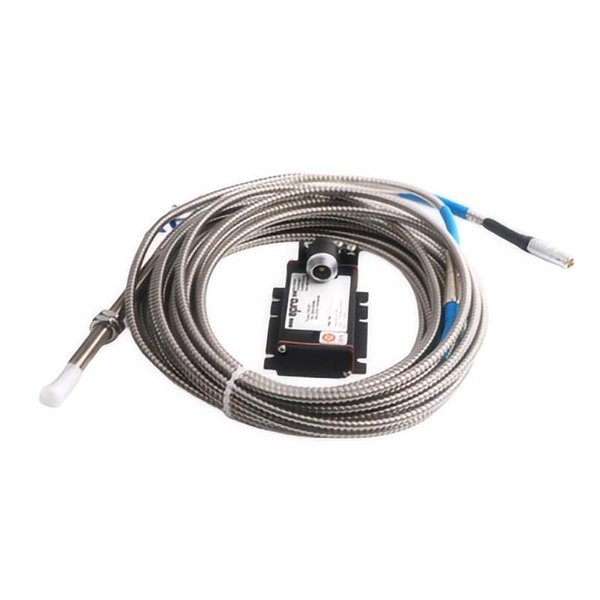

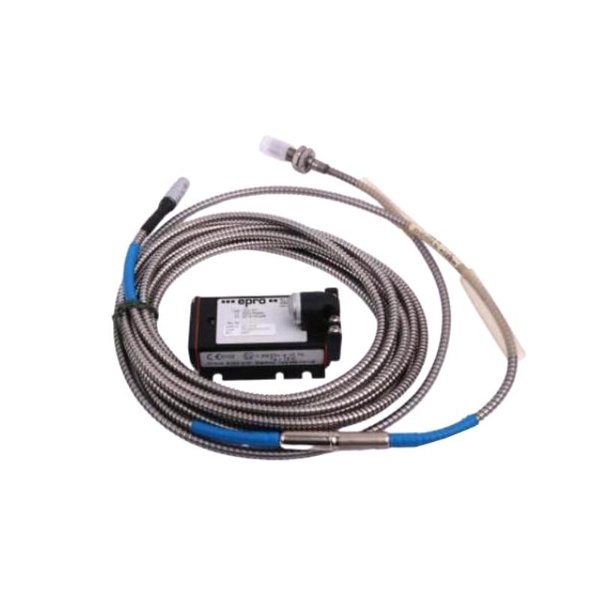

The Epro PR6424/115-100 16mm Eddy Current Sensor is a high-precision instrument designed for monitoring vibration, displacement, and shaft position in industrial rotating machinery. Utilizing eddy current technology, the sensor provides non-contact, high-resolution measurements suitable for applications in turbines, compressors, motors, and other high-speed equipment.

The 16 mm sensor head diameter ensures compatibility with compact mounting arrangements, while the robust construction guarantees reliable operation in demanding industrial environments. The PR6424/115-100 sensor contributes to predictive maintenance programs by delivering consistent, real-time measurements critical for early detection of equipment anomalies.

Product Specifications

Product Applications

The PR6424/115-100 sensor is widely used in industrial and process control environments, including:

• Power Generation – Monitors turbine rotor displacement and generator shaft alignment.

• Rotating Machinery – Measures vibration and position in compressors, pumps, and motors.

• Petrochemical & Refining – Provides shaft position monitoring for high-speed equipment.

• Process Automation – Supplies accurate displacement data to control systems and SCADA units.

• Predictive Maintenance – Enables early detection of abnormal vibration patterns to reduce downtime.

Product Advantages

• High Accuracy: Eddy current sensing provides precise, non-contact measurements.

• Durable Construction: Resistant to high temperature, vibration, and industrial contaminants.

• Compact Size: 16 mm diameter allows integration into tight machinery spaces.

• Broad Frequency Response: Captures both low-frequency displacement and high-frequency vibration.

• Flexible Output Options: Analog signals support different industrial monitoring standards.

• Supports Predictive Maintenance: Provides reliable data for early problem detection and continuous monitoring.

FAQ

1. What is the nominal diameter of the sensor head?

   The PR6424/115-100 has a 16 mm sensor head suitable for compact mounting applications.

2. Which parameters does this sensor measure?

   It measures shaft displacement, vibration, and rotational position using eddy current technology.

3. What is the sensor’s typical measurement range?

   The sensor typically measures ±2 mm, adjustable depending on the installation setup.

4. What types of output signals are supported?

   The sensor provides standard analog outputs including 0–10 V and 4–20 mA signals.

5. What power supply is required for operation?

   The sensor requires an excitation voltage of 8–12 VDC, provided through the corresponding interface module.

6. What is the frequency response of the sensor?

   The sensor accurately responds to signals from DC up to 10 kHz, covering both slow and fast dynamic events.

7. Can it be used in harsh industrial environments?

   Yes, it operates reliably from -40°C to +120°C and has protection ratings up to IP67.

8. How is the sensor mounted?

   It supports threaded or flange mounting, ensuring secure installation in industrial machinery.

9. Is this sensor suitable for predictive maintenance programs?

   Yes, it provides continuous high-resolution data to detect early signs of abnormal vibration or displacement.

10. Which industries typically use this sensor?

    Common industries include power generation, petrochemical processing, industrial motors, compressors, and automation systems.
