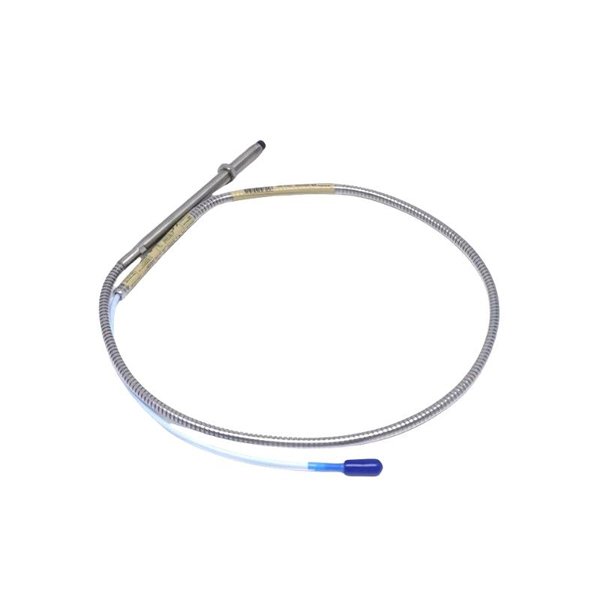

The Bently Nevada 330101-05-30-05-02-00 is a part of the renowned 3300 XL 8mm Proximity Transducer System designed by Bently Nevada, a global leader in machinery condition monitoring. This proximity probe system is engineered to deliver accurate, reliable measurements of shaft vibration and position in critical rotating machinery. Built to handle demanding industrial environments, the 3300 XL series is the standard for proximity sensing in turbines, compressors, pumps, and generators.

The 3300 XL 8mm probe ensures compliance with the American Petroleum Institute (API) 670 Standard for machinery protection systems. It offers robust performance across extreme temperatures, high vibration environments, and hazardous areas, making it a preferred choice for petrochemical, power generation, and heavy industrial sectors.

Product Specifications

Product Applications

The Bently Nevada 330101-05-30-05-02-00 probe is widely utilized in critical machinery monitoring and protection systems across various industries:

• Steam and Gas Turbines – For shaft vibration and axial position monitoring.

• Compressors – Detecting rotor dynamics to prevent failures.

• Pumps – Monitoring pump shafts for misalignment or imbalance.

• Generators – Ensuring precise vibration monitoring for reliable operation.

• Industrial Fans and Blowers – Detecting shaft runout and dynamic movement.

• Petrochemical Plants – Used in hazardous and high-temperature environments for continuous monitoring.

Product Advantages

• High Reliability: Built to withstand extreme environments and harsh operating conditions.

• API 670 Compliance: Ensures adherence to the highest standards for machinery protection.

• Excellent Signal Integrity: Designed to minimize noise and provide accurate readings.

• Extended Temperature Range: Operates efficiently in temperatures from -35°C to +177°C.

• Durable Construction: Stainless steel housing for corrosion resistance.

• Flexible Installation: Compatible with a variety of monitoring systems and configurations.

• Global Industry Standard: Widely recognized as a benchmark in vibration monitoring.

FAQ

1. What is the output sensitivity of the 330101-05-30-05-02-00 probe?

   The output sensitivity is 7.87 V/mm (200 mV/mil).

2. What is the recommended nominal gap for this probe?

   The nominal gap is 2.0 mm (80 mils).

3. What is the linear range of the 3300 XL 8mm probe?

   It has a linear range of 2.0 mm to 4.0 mm.

4. Can this probe operate in hazardous environments?

   Yes, it is suitable for hazardous and industrial environments, meeting API 670 standards.

5. What type of connector does this probe use?

   It uses a Microdot connector.

6. Is the probe compatible with the 3300 XL Proximitor Sensor?

   Yes, it is designed for full compatibility with 3300 XL Proximitor sensors.

7. What is the insulation resistance of the probe?

   The insulation resistance is greater than 100 MΩ at 500 VDC.

8. What is the maximum operating temperature of the probe?

   The maximum operating temperature is +177°C.

9. Does this probe meet API 670 requirements?

   Yes, the 3300 XL series complies with API 670 standards.

10. What is the frequency response range of the probe?

    The frequency response range is 0 to 10 kHz.
