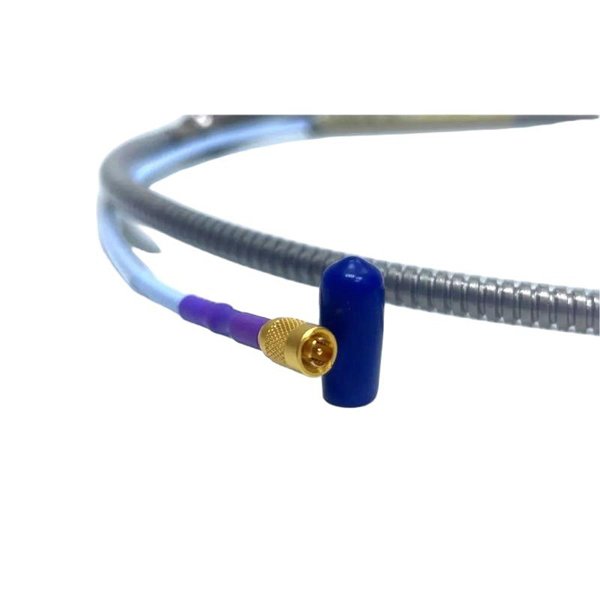

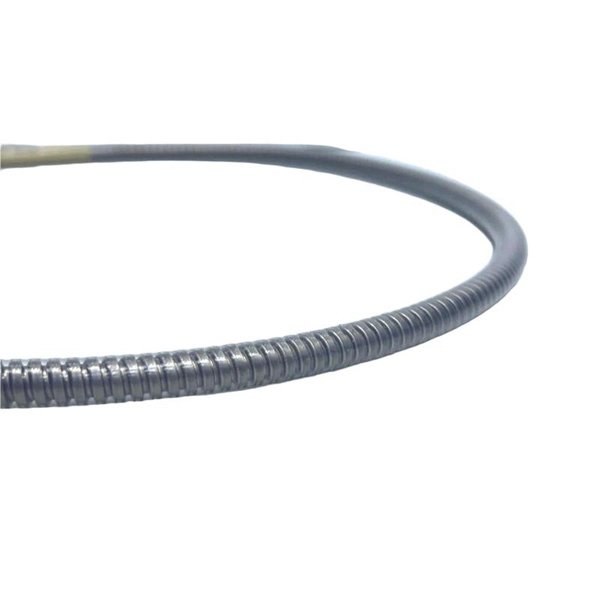

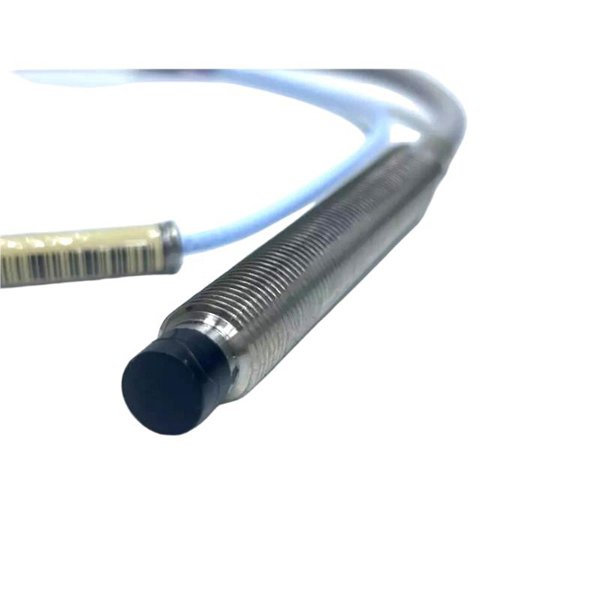

The Bently Nevada 330704-000-050-10-02 3300 XL 11 mm Proximity Probe is a high-precision vibration and displacement sensor, designed for continuous monitoring of rotating machinery in critical industrial applications. It is part of the 3300 XL series, known for its advanced capabilities in measuring the shaft displacement, vibration, and proximity of rotating components.

This proximity probe is typically used to measure the position or displacement of machine parts such as shafts, bearings, and other rotating elements, allowing operators to monitor machinery health with great accuracy. The 3300 XL 11 mm probe features a robust, non-contacting measurement method that ensures longevity and minimal wear, making it ideal for a range of applications in demanding environments.

Used across industries such as power generation, oil & gas, manufacturing, and petrochemical, this proximity probe offers real-time data, ensuring that even minor mechanical issues are detected before they escalate into major failures.

Product Specifications

Product Applications

The Bently Nevada 330704-000-050-10-02 3300 XL 11 mm Proximity Probe is used to measure the displacement of rotating components in industrial machinery, ensuring that the equipment operates within safe parameters. Its primary applications include:

1. Rotating Machinery Monitoring

   This proximity probe is used extensively in rotating equipment such as motors, turbines, pumps, and compressors to measure shaft vibration and displacement.

2. Power Generation

   In power plants, the probe monitors critical machinery such as turbines, generators, and steam turbines, helping to detect mechanical issues early and minimize downtime.

3. Oil & Gas

   In oil rigs, refineries, and chemical processing plants, this probe helps ensure the health of machinery, detecting any early signs of wear or failure.

4. Manufacturing & Industrial Plants

   The probe is used in large-scale manufacturing plants to monitor equipment such as mills, presses, and conveyors, ensuring their smooth operation and preventing costly downtime.

5. HVAC Systems

   In HVAC systems, the probe is used to monitor compressors and fan shafts, ensuring they operate efficiently and reliably.

6. Aerospace & Defense

   In aerospace applications, the probe ensures that the precision machinery in turbines, engines, and other rotating systems remain in optimal condition.

Product Advantages

• High Precision: The 3300 XL 11 mm proximity probe delivers highly accurate displacement and vibration measurements, which ensures the early detection of any potential mechanical issues, allowing for timely maintenance or adjustments.

• Non-Contact Measurement: Using a non-contacting method to measure displacement, the probe reduces wear and tear, ensuring longevity and reliability in demanding environments.

• Wide Temperature Range: The probe operates effectively in environments with temperatures ranging from -40°C to +85°C, making it versatile for a wide range of industrial applications.

• Rugged Construction: The probe is built using high-quality materials such as stainless steel and Inconel, offering excellent durability and resistance to harsh conditions, including high temperatures and corrosive environments.

• Real-Time Data: The 4-20 mA linear output ensures real-time data transmission, enabling operators to monitor machinery health continuously and make informed decisions based on the data received.

• Environmental Protection: Rated with an IP67 protection, the sensor is shielded against dust, moisture, and other environmental hazards, ensuring reliable performance even in harsh industrial environments.

FAQs

1. What is the measurement range of the Bently Nevada 330704-000-050-10-02 proximity probe?

   The measurement range of the probe is 0 to 11 mm.

2. What type of output signal does the Bently Nevada 330704-000-050-10-02 provide?

   The probe provides a 4-20 mA linear output signal.

3. What is the power supply requirement for the proximity probe?

   The probe requires a 24 V DC power supply.

4. What is the operating temperature range of the probe?

   The operating temperature range of the probe is from -40°C to +85°C.

5. How is the Bently Nevada 330704-000-050-10-02 proximity probe mounted?

   The probe is mounted using a threaded M10x1 connection.

6. What materials are used in the construction of the 3300 XL probe?

   The probe is made of stainless steel and Inconel for maximum durability and resistance to harsh environments.

7. What industries can benefit from the use of this proximity probe?

   The proximity probe is ideal for industries like power generation, oil & gas, manufacturing, HVAC, and aerospace.

8. What is the weight of the Bently Nevada 330704-000-050-10-02 probe?

   The probe weighs 0.17 kg.

9. What environmental protection rating does the probe have?

   The probe has an IP67 rating, which provides protection against dust and water ingress.

10. What is the total length of the Bently Nevada 330704-000-050-10-02 proximity probe?

    The total length of the probe are 1 meter.
