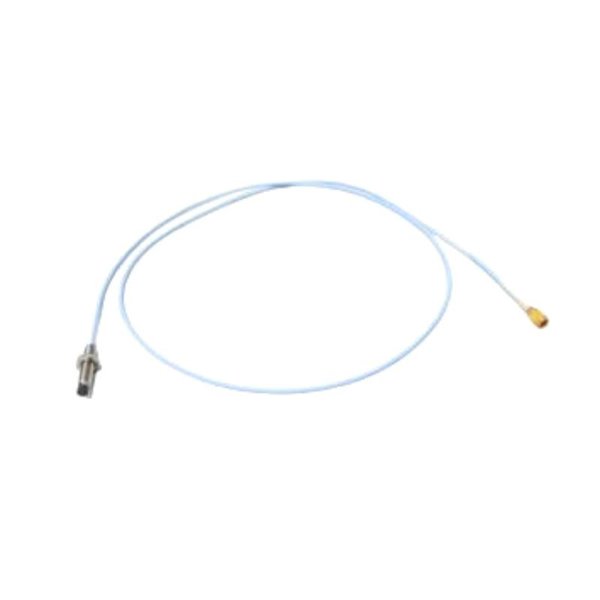

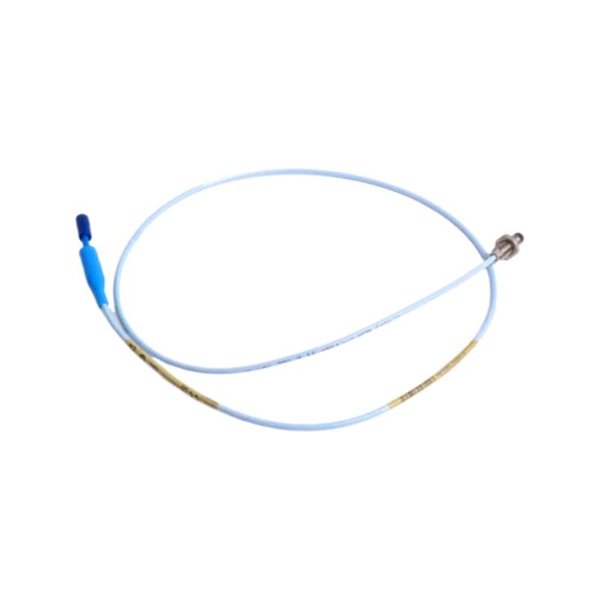

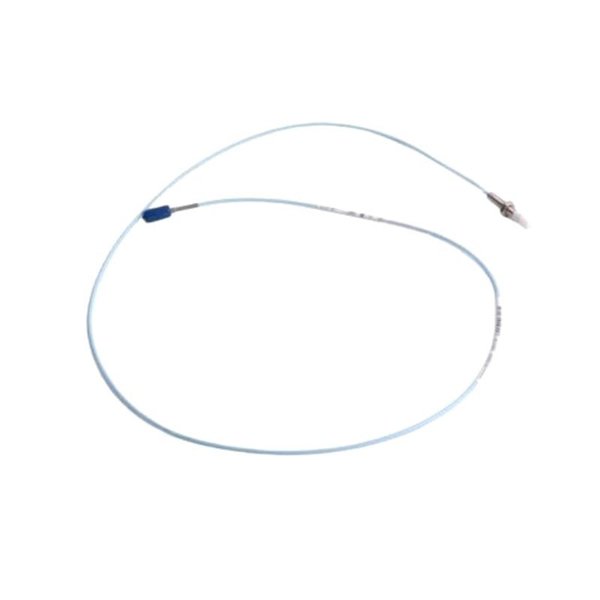

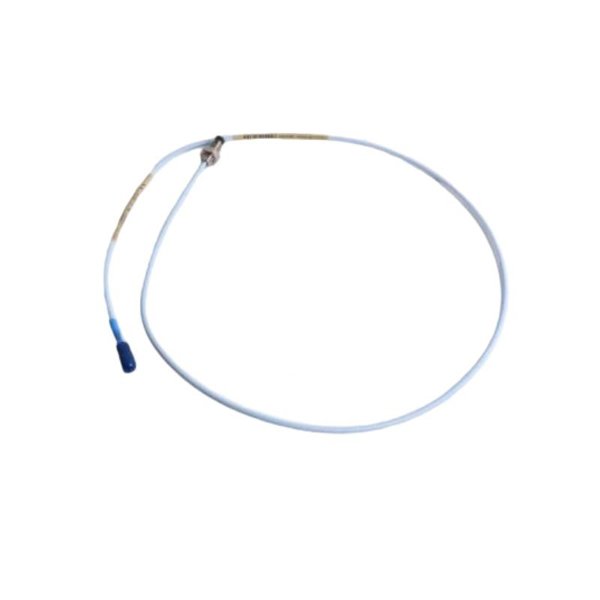

Bently Nevada 330901-00-90-10-02-RU 3300 NSv Proximity Probe

The Bently Nevada 330901-00-90-10-02-RU 3300 NSv Proximity Probe is a high-performance vibration and displacement sensor designed for applications where space is limited and precise shaft measurements are required. This model is part of the 3300 NSv (Narrow Side-view) probe series, which has been specifically developed to provide reliable monitoring of rotating machinery in industrial environments.

It offers exceptional accuracy in detecting shaft vibration and position, ensuring the safe and efficient operation of turbines, compressors, pumps, and other critical rotating equipment. Its rugged design makes it suitable for continuous operation in harsh environments where stability and durability are vital.

Product Parameters

Product Applications

• Steam and gas turbines

• Compressors and blowers

• Industrial pumps

• Gearboxes and motors

• High-speed rotating equipment

• Machinery protection and predictive maintenance systems

Product Advantages

• High Accuracy: Provides precise shaft vibration and position measurements for reliable monitoring.

• Compact Size: Slim probe design enables installation in space-limited applications.

• Rugged Build: Resistant to harsh operating environments including high temperatures and vibration.

• Compatibility: Fully compatible with Bently Nevada 3300 NSv systems and API 670 standards.

• Long-term Stability: Ensures consistent performance over extended operational periods.

• Versatile Applications: Suitable for various machinery types and critical process industries.

FAQ

Q1: What is the sensitivity rating of this probe?

A1: The probe has a sensitivity of 7.87 mV/µm (200 mV/mil), which provides accurate displacement measurements.

Q2: Can this probe be used with all Bently Nevada monitoring systems?

A2: It is specifically designed for 3300 NSv systems but is also compatible with certain other Bently Nevada monitoring platforms that support NSv probes.

Q3: How does the probe handle high-temperature environments?

A3: The probe is rated for continuous operation up to +180 °C, making it suitable for high-temperature machinery monitoring.

Q4: What type of thread is provided for mounting?

A4: The probe uses an M8 x 1.0 mounting thread for secure installation.

Q5: Does the probe comply with API 670 standards?

A5: Yes, it fully complies with API 670 requirements for machinery protection.

Q6: What is the typical output signal of the probe?

A6: The output is a voltage proportional to shaft displacement, with 200 mV per mil of displacement.

Q7: How does the probe ensure accuracy in narrow installations?

A7: The slim body and side-view design enable accurate measurement even in restricted spaces without compromising performance.

Q8: What is the typical cable length for this model?

A8: This probe comes with a 10-meter integral cable, but other lengths are available depending on the configuration.

Q9: Can the probe be used in corrosive environments?

A9: Yes, its stainless steel body provides resistance to corrosion, enhancing durability in harsh conditions.

Q10: How is the probe connected to the system?

A10: It connects via a mini-coaxial connector that mates with Bently Nevada extension cables and proximitor modules.
