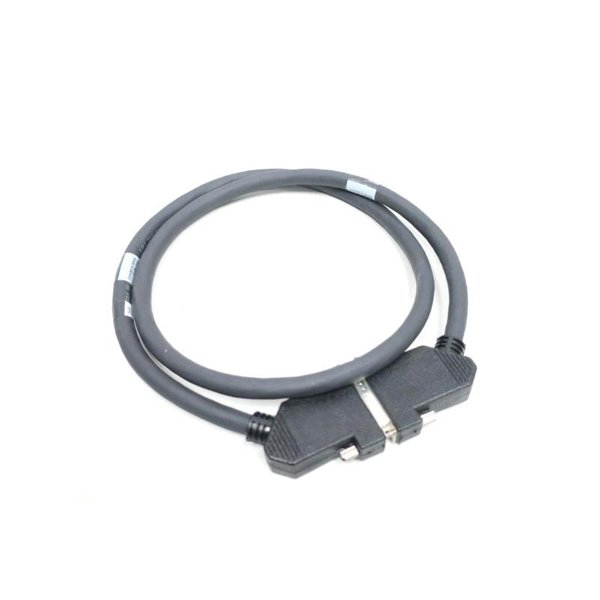

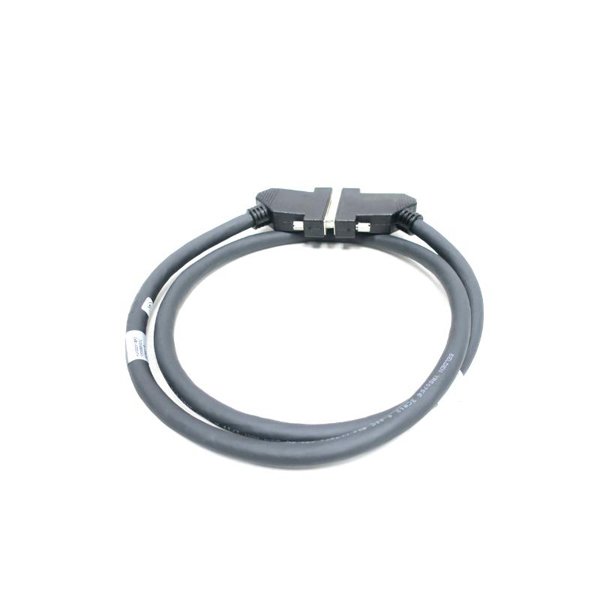

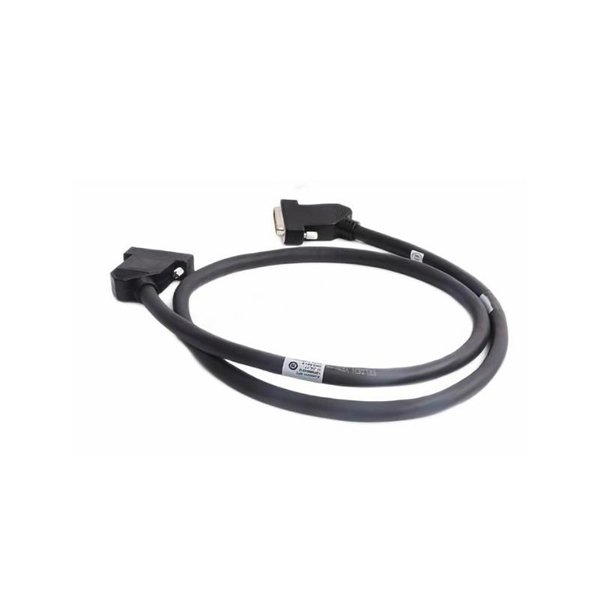

The Emerson KJ4002X1-BF2 Bottom Bus Extender Assembly is an essential component designed to expand and connect DeltaV™ M-series I/O carriers within Emerson’s distributed control system (DCS) architecture. This assembly enables the extension of the LocalBus communication system across multiple I/O carriers installed in a cabinet. It provides mechanical and electrical continuity between adjacent I/O banks, facilitating a seamless and compact expansion of I/O capabilities in vertical installations.

This unit is particularly suitable for applications that require I/O density while maintaining clear cable management and system integration. It serves as a bridge that transmits signal and power through the base of the I/O carriers, ensuring system integrity and performance under demanding industrial conditions.

Technical Specifications

Applications

The KJ4002X1-BF2 Bottom Bus Extender Assembly is widely adopted in mission-critical industrial applications where system scalability, reliability, and robust integration are mandatory. The following are some key use cases:

• Oil & Gas Refineries: For scalable expansion of I/O modules in DCS cabinets controlling pipelines and compressors.

• Chemical and Petrochemical Plants: To connect I/O racks controlling high-temperature and high-pressure processes.

• Power Generation: In gas, coal, or nuclear plants, where redundant and modular DCS configurations are essential.

• Pharmaceutical Manufacturing: Where precise batch control and system flexibility are required for GMP compliance.

• Water and Wastewater Treatment: For centralized monitoring and control of distributed field I/O.

• Food and Beverage Processing: To maintain clean and organized I/O connections under hygienic conditions.

Advantages

• Flexible System Design: Supports customized cabinet layouts by connecting I/O carriers over longer vertical distances.

• Ease of Integration: Simple, plug-in assembly minimizes installation time and reduces engineering complexity.

• Industrial Durability: Built with materials and shielding that withstand harsh industrial environments.

• Minimal Downtime: Enables hot-swapping of I/O modules in some applications without shutting down the system.

• Consistent Communication: Maintains uninterrupted LocalBus communication and power supply integrity.

• Optimized Cabinet Space: Facilitates vertical stacking of I/O banks, maximizing control panel real estate.

Frequently Asked Questions (FAQ)

1. What exactly does the KJ4002X1-BF2 connect?

   It links the LocalBus between vertical I/O carriers in a DeltaV cabinet, enabling them to function as a unified module.

2. Is this extender hot-swappable?

   In certain configurations and under specific safety protocols, hot-swapping is supported.

3. Can it be used in hazardous locations?

   Yes, it complies with ATEX Zone 2 requirements and is certified for such applications.

4. How do I install this assembly?

   It is mounted at the bottom of I/O carriers using snap-in mechanisms and standard hardware.

5. Is there a limit to how many extenders can be used in one system?

   This depends on the I/O bank design and power limitations; Emerson provides design tools for optimal configuration.

6. Does this come with shielding for electrical interference?

   Yes, the cable and connectors are shielded against EMI.

7. Can it be reused if a system is relocated?

   Yes, provided it remains undamaged and within the lifecycle as per Emerson’s guidance.

8. What is the expected service life of the unit?

   Typically, it exceeds 10 years under standard operational conditions.

9. What happens if the assembly fails?

   A failure would disrupt communication between I/O banks; Emerson recommends having spare parts in critical systems.

10. Does it require routine maintenance?

    No routine maintenance is needed, but periodic inspection during cabinet servicing is advisable.
