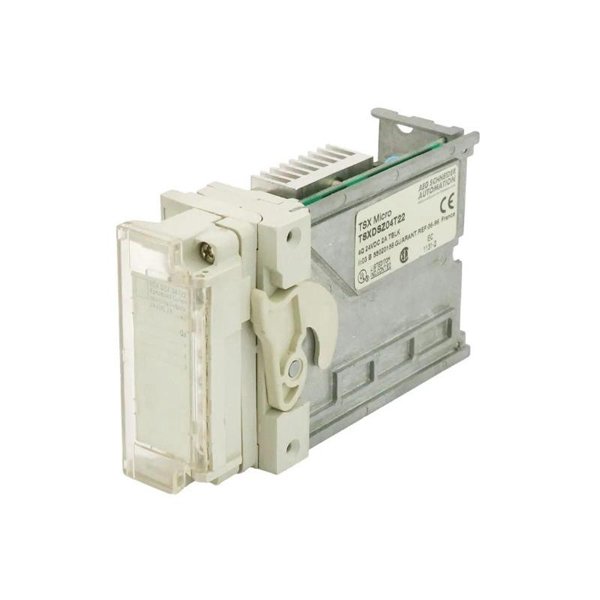

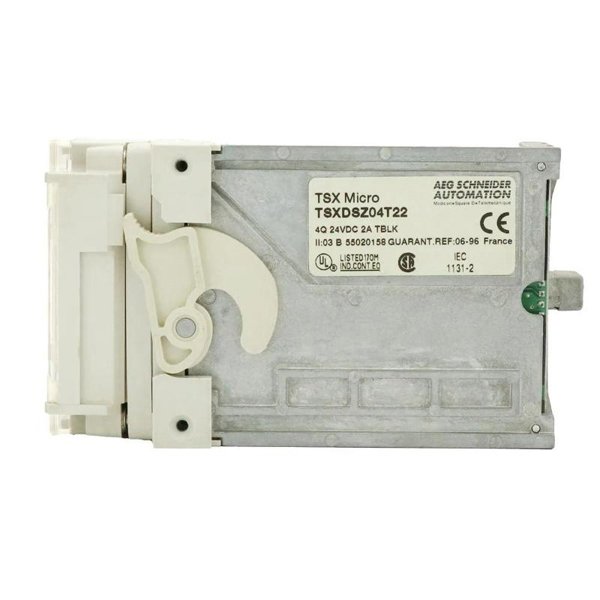

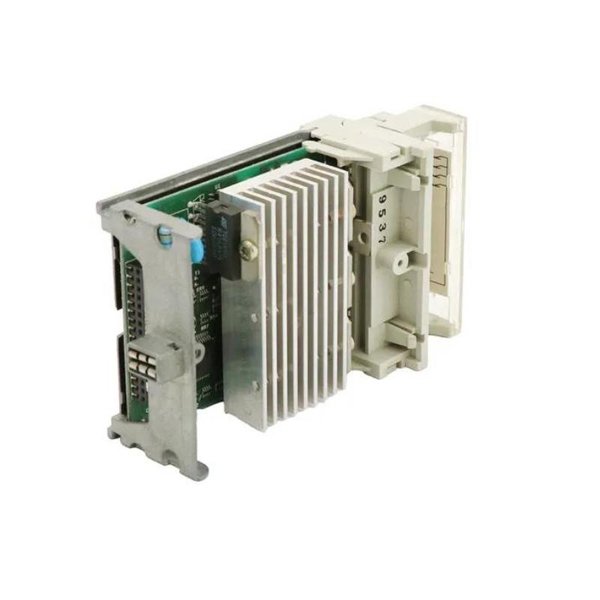

The Schneider TSXDSZ04T22 is a high-performance digital output module designed for industrial automation and control systems. It is part of Schneider Electric’s extensive range of modular I/O solutions, offering reliability, flexibility, and ease of integration with PLC systems. This module is widely used in applications requiring precise digital signal control, such as manufacturing, energy management, and process automation.

Product Parameters

Product Applications

The TSXDSZ04T22 is ideal for a wide range of industrial and commercial applications, including:

• Factory Automation: Controlling actuators, solenoids, and relays in assembly lines.

• Energy Management: Switching loads in power distribution systems.

• Process Control: Managing digital signals in chemical and food processing plants.

• Machinery: Integration into CNC machines, packaging equipment, and robotic systems.

• Building Automation: Lighting and HVAC control in smart buildings.

Product Advantages

1. High Reliability: Robust design ensures long-term operation in harsh environments.

2. Fast Response Time: <1ms switching speed for high-speed applications.

3. Compact Size: Space-saving design for easy integration into control cabinets.

4. Wide Compatibility: Works seamlessly with Schneider Modicon PLCs.

5. Easy Installation: Tool-less mounting and plug-and-play connectivity.

6. Overload Protection: Built-in safeguards to prevent damage from short circuits.

7. Certified Safety: Meets international standards (CE, UL, IEC).

Frequently Asked Questions (FAQ)

1. What PLCs are compatible with the TSXDSZ04T22?

   It is compatible with Schneider Modicon M340 and M580 PLC series.

2. What is the maximum load current per output?

   Each output supports up to 0.5A, with a total module limit of 2A.

3. Can this module be used in high-voltage environments?

   Yes, it has an isolation voltage of 500V AC for added safety.

4. What is the operating temperature range?

   -20°C to +60°C, making it suitable for most industrial settings.

5. Does it support both sinking and sourcing configurations?

   Yes, the outputs can be configured for either mode.

6. Is the TSXDSZ04T22 hot-swappable?

   No, it requires power cycling for installation or replacement.

7. What certifications does this module have?

   It is CE, UL, and IEC 61131-2 certified.

8. What is the response time of the outputs?

   Less than 1 millisecond for high-speed applications.

9. Can I use this module in outdoor applications?

   Only if installed in a protected enclosure (not rated for direct outdoor use).

10. Where can I find the wiring diagram for this module?

    Refer to the Schneider Electric official documentation or user manual.
