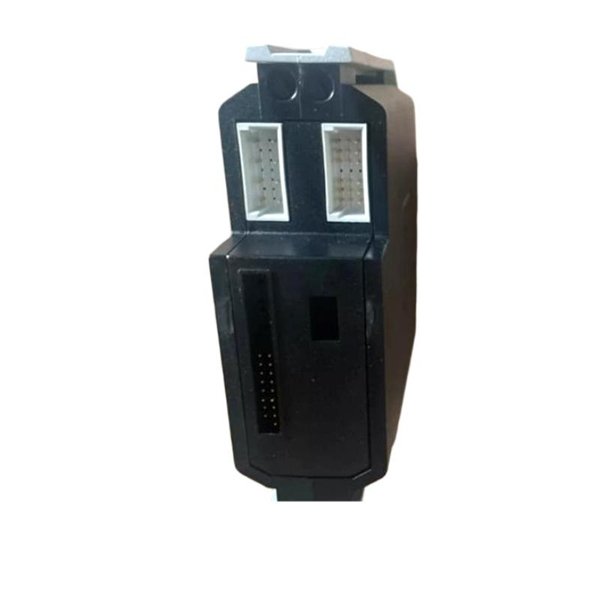

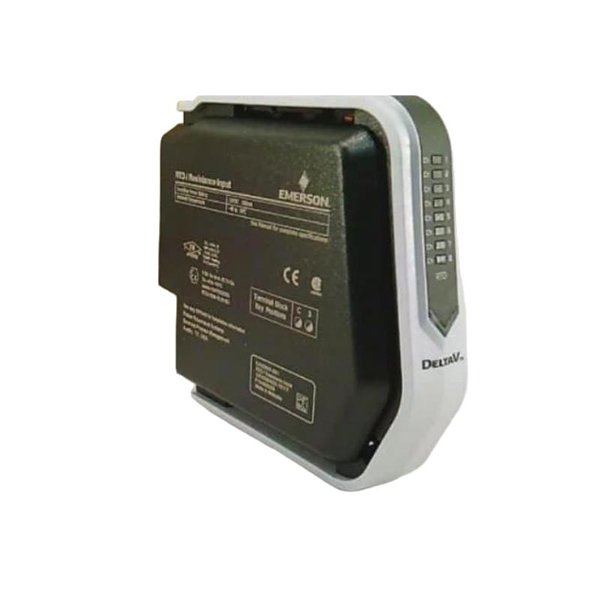

The Emerson SE4003S6B1 KJ3225X1-BK1 S Series Analog RTD/Resistive Input Module is designed to provide precise and reliable temperature measurements in industrial environments. This module supports both RTD and resistive inputs, making it versatile for various temperature monitoring applications across multiple industries.

Engineered for use in demanding industrial systems, the SE4003S6B1 offers high accuracy, low noise, and rapid signal processing, ensuring seamless integration into control systems for efficient process monitoring. Whether used in process control, power generation, or manufacturing, this module offers enhanced reliability and performance.

Technical Specifications

Product Applications

The Emerson SE4003S6B1 KJ3225X1-BK1 S Series module is suitable for a wide range of applications where accurate temperature measurement and reliable performance are essential:

• Process Control: Provides precise temperature data for controlling processes in chemical, pharmaceutical, and food industries.

• Power Generation: Ensures stable temperature control in power plants, turbines, and reactors.

• Oil & Gas: Used in pipeline monitoring, storage tanks, and offshore platforms to maintain safe operational temperatures.

• Manufacturing: Suitable for temperature measurement in furnaces, kilns, and various production processes.

Its versatility in supporting RTD and resistive input types makes it ideal for industries with varying temperature monitoring needs.

Product Advantages

• Broad Temperature Range: The SE4003S6B1 can measure temperatures from -200°C to 850°C, making it suitable for various temperature control applications.

• Accurate and Low-noise Signal Processing: The module ensures minimal interference and high-accuracy readings, even in complex industrial environments.

• Multiple Input Types: It supports RTD inputs (such as PT100, PT1000) and resistive inputs, offering flexibility for different sensor types.

• Flexible Communication: Equipped with MODBUS RTU and EtherCAT protocols, it integrates smoothly into most industrial control systems.

• Compact and Space-saving: With a compact design, it is ideal for installations where space is limited.

• Reliable Performance: Built for robustness in harsh environments, the module can withstand a wide range of temperatures and humidity levels, ensuring long-term reliability.

FAQ

1. What types of sensors does the SE4003S6B1 support?

The SE4003S6B1 supports RTD sensors (such as PT100, PT1000) and resistive inputs, providing versatility for various temperature monitoring needs.

2. What is the temperature range of the SE4003S6B1?

The module can measure temperatures from -200°C to 850°C, making it suitable for a wide range of industrial temperature applications.

3. What communication protocols are supported by the SE4003S6B1?

The module supports MODBUS RTU and EtherCAT communication protocols, enabling seamless integration into industrial systems.

4. What power requirements does the SE4003S6B1 have?

The SE4003S6B1 operates with a 24 VDC power supply and requires an input current of 0.2 A.

5. Is the SE4003S6B1 suitable for use in extreme environments?

Yes, it is designed to function reliably in environments with temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%, non-condensing.

6. How does the SE4003S6B1 handle signal processing?

The SE4003S6B1 uses an ARM Cortex A9 processor for high-speed signal processing, ensuring low noise and accurate temperature readings.

7. Can the SE4003S6B1 be used for both RTD and resistive inputs?

Yes, the SE4003S6B1 is compatible with both RTD sensors (e.g., PT100, PT1000) and resistive inputs, providing flexibility for different applications.

8. How does the SE4003S6B1 integrate into existing automation systems?

The module integrates easily into existing systems using its support for MODBUS RTU and EtherCAT communication protocols, commonly used in industrial automation.

9. What is the weight and size of the SE4003S6B1 module?

The SE4003S6B1 has dimensions of 162 x 41.8 x 199.3 mm and weighs 0.29 kg, making it compact and easy to integrate into control systems.

10. Can the SE4003S6B1 be used for temperature measurement in high-precision applications?

Yes, the SE4003S6B1 provides highly accurate temperature readings, ensuring reliable performance in precision temperature monitoring applications.
