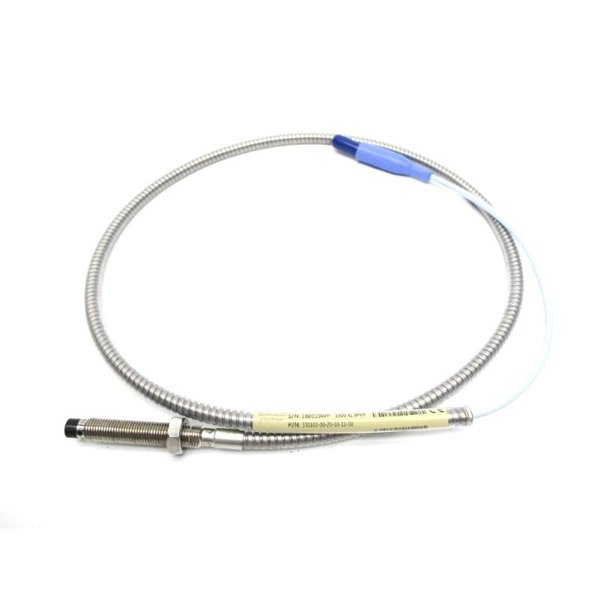

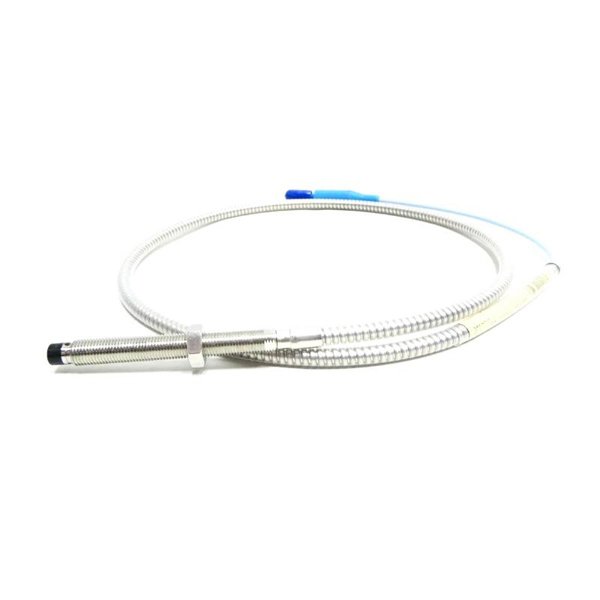

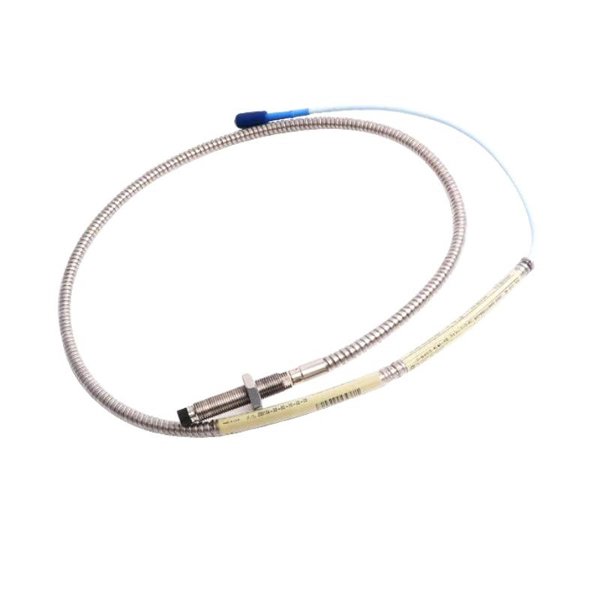

Bently Nevada 330102-10-40-05-01-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-10-40-05-01-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-10-40-05-01-00 is a rugged, armored proximity probe from the 3300 XL 8 mm series. It delivers precise vibration and position measurements for fluid-film bearing machinery. Designed with an advanced eddy-current transducer system, it ensures API 670 compliance, high interchangeability, and superior environmental resistance. The probe integrates robust mechanical construction with gold-plated connectors for reliable operation even in harsh conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330102-10-40-05-01-00 |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 0.5 meter |
| Weight | 0.162 kg |
| Operating Temperature Range | -52°C to +177°C |
| Maximum Pressure | Sealed with Viton O-ring |
| Cable Type | Armored with standard insulation |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Certification | CSA, ATEX, IECEx compliant |
Applications
-
Vibration and position monitoring in turbines, compressors, pumps
-
Keyphasor and overspeed protection measurements
-
Suitable for use in hazardous industrial environments
-
Monitoring shaft radial and axial movement
Product Advantages
-
Fully compliant with API 670 standard
-
Excellent linearity and temperature stability
-
High interchangeability without recalibration
-
Enhanced RFI/EMI immunity for demanding environments
-
Armored cable for superior mechanical protection
-
Finger-tight ClickLoc connectors for secure and easy installation
FAQ
Q1: What is the primary use of this probe?
A1: It is designed for measuring vibration and shaft position in rotating machinery.
Q2: Is the probe compliant with API standards?
A2: Yes, it fully complies with API 670 specifications.
Q3: What is the recommended shaft size?
A3: A shaft diameter of at least 76.2 mm (3 inches) is recommended.
Q4: Can this probe be used in high-temperature areas?
A4: Yes, it operates up to +177°C; extended versions are available for higher temperatures.
Q5: Does the probe require calibration before use?
A5: No, it is interchangeable and does not need recalibration if components are matched.
Q6: Is the cable armored?
A6: Yes, this version includes an armored cable for added protection.
Q7: What is the linear measurement range?
A7: The linear range is 2 mm (80 mils).
Q8: Does it include hazardous area certification?
A8: Yes, it is certified for CSA, ATEX, and IECEx hazardous areas.
Q9: How is it connected to the system?
A9: Using ClickLoc gold-plated connectors which require no special tools.
Q10: What is the typical frequency response?
A10: It provides a flat response from 0 to 10 kHz within ±3 dB.
