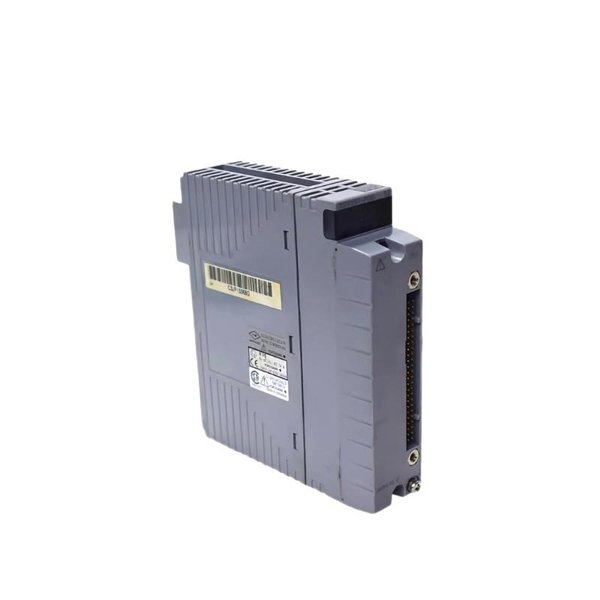

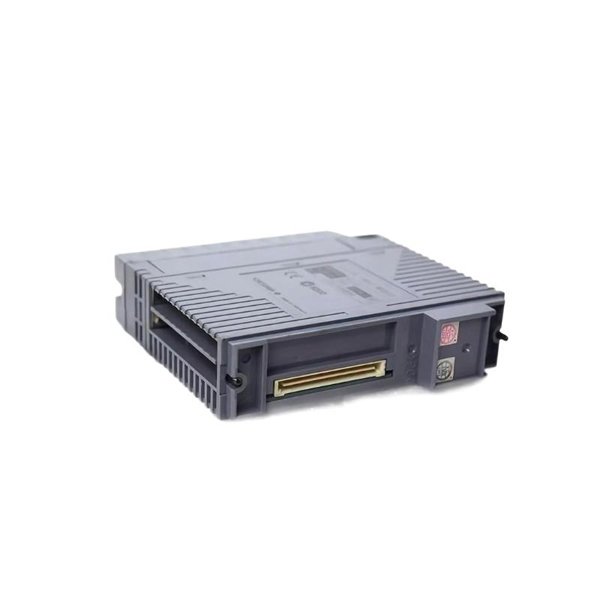

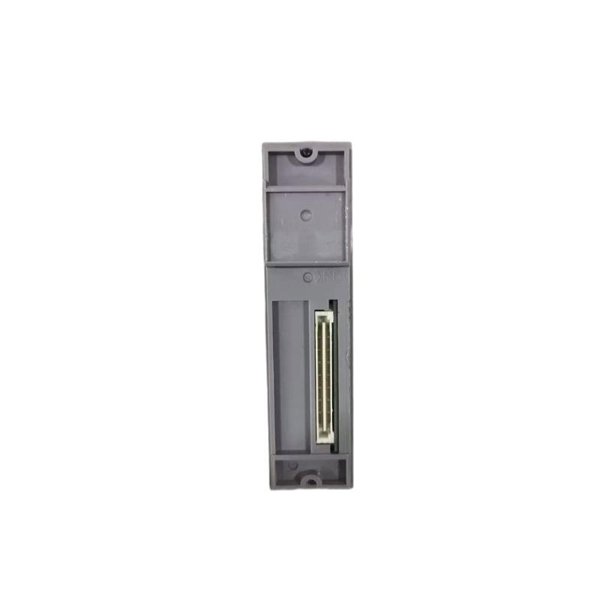

The Yokogawa ADV151-P00 is a high-performance Digital Input Module engineered for use with Yokogawa’s CENTUM VP and ProSafe-RS control systems. Specifically designed to handle high-reliability and safety-critical industrial applications, this module plays a crucial role in acquiring binary signals from field instruments and transferring them securely to the control system. The ADV151-P00 offers 16 isolated digital input channels and is capable of detecting discrete ON/OFF states, such as those from push buttons, limit switches, or proximity sensors.

This module complies with rigorous industrial standards and has a robust design suited for both general process automation and safety instrumented system (SIS) environments. It provides galvanic isolation, precise signal detection, and long-term operational reliability—essential for continuous process control and critical infrastructure.

Product Specifications

Product Applications

• Petrochemical Plants: Monitoring pump statuses, emergency stop pushbuttons, valve position signals.

• Power Generation: Input signals from generator protective relays and turbine status monitoring.

• Oil & Gas Refineries: Critical field input detection in explosion-prone environments.

• Pharmaceutical Manufacturing: Monitoring of cleanroom interlocks, door status, and equipment controls.

• Water & Wastewater Management: Monitoring limit switches on gates, pumps, and motor starters.

• Discrete Manufacturing: Capturing feedback from limit switches, sensor triggers, and interlock mechanisms.

Product Advantages

• High Channel Density: Offers 16 channels in a compact form factor, saving valuable panel space.

• Fail-safe Monitoring: Built-in diagnostics allow for immediate detection of input failures or wiring issues.

• Industrial-grade Reliability: Suitable for use in harsh environments with robust isolation and EMI protection.

• Wide Voltage Tolerance: Compatible with various field devices operating at different nominal voltages.

• System Integration: Seamless integration with Yokogawa’s CENTUM VP and ProSafe-RS control platforms.

• Long Lifecycle Support: Yokogawa’s commitment to long-term product support ensures lifecycle cost reduction.

• Easy Maintenance: Hot-swappable module allows replacement without shutting down the entire system.

FAQ

1. Q: What is the main function of the ADV151-P00?

   A: It is a digital input module designed to receive and process 16 individual ON/OFF signals from field devices.

2. Q: Is the ADV151-P00 compatible with safety systems like ProSafe-RS?

   A: Yes, it is compatible with both process control and safety control systems in Yokogawa architectures.

3. Q: Can I use this module in hazardous environments?

   A: Yes, when installed as part of a certified system, it complies with ATEX, FM, and other safety certifications.

4. Q: Does it support dry and wet contact inputs?

   A: Yes, it supports both types of digital signals.

5. Q: What kind of isolation is provided?

   A: Optical isolation between field circuits and internal circuitry for enhanced safety.

6. Q: What is the input delay for signal detection?

   A: Approximately 5 milliseconds per channel.

7. Q: How do I mount the module?

   A: It is installed on a base unit within a Yokogawa system rack or N-IO node.

8. Q: Can I replace the module during operation?

   A: Yes, the module supports hot-swapping, allowing for live replacement.

9. Q: How is channel failure detected?

   A: The module includes self-diagnostics and can flag channel malfunction or wiring issues.

10. Q: What is the typical lifespan or durability of the ADV151-P00?

    A: With proper environmental conditions and standard usage, it can last over 10 years with high MTBF.
