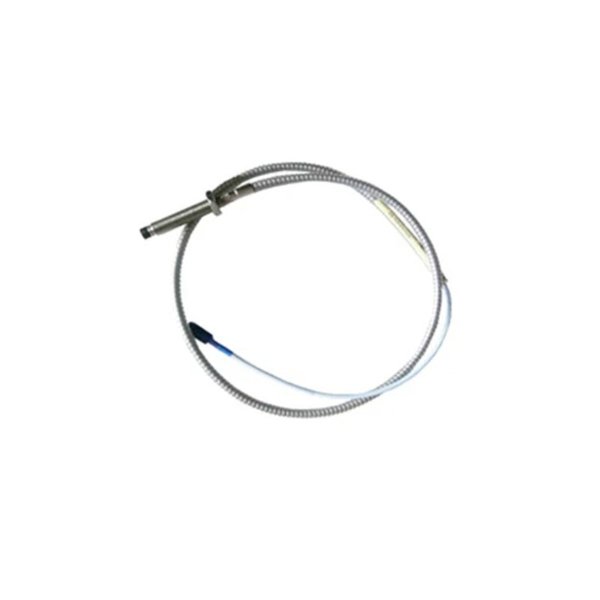

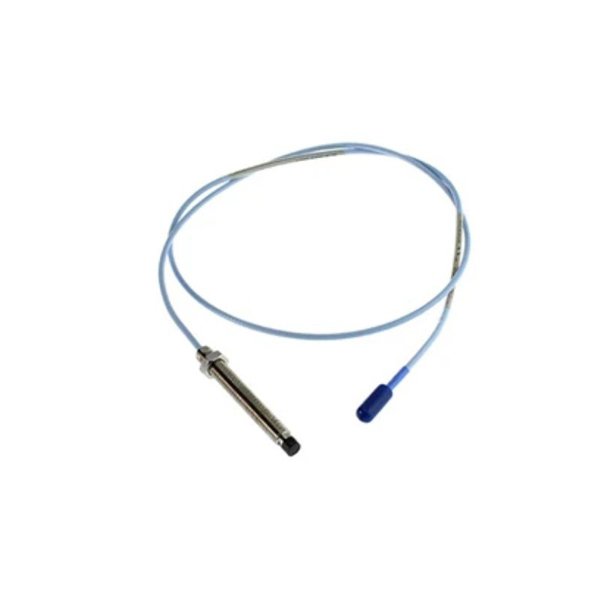

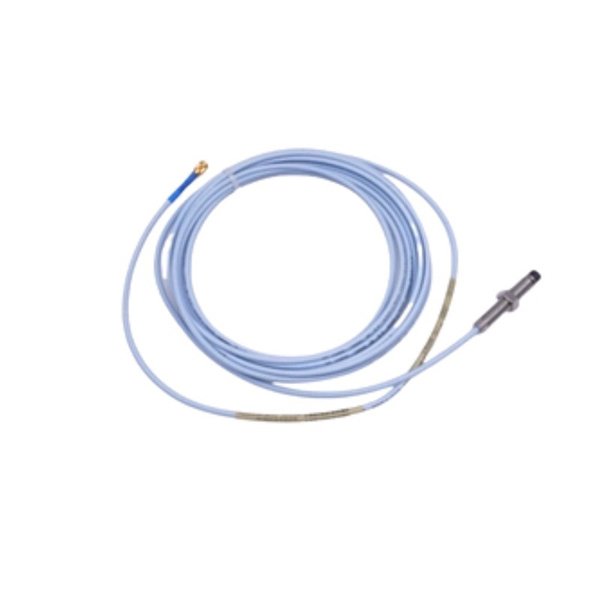

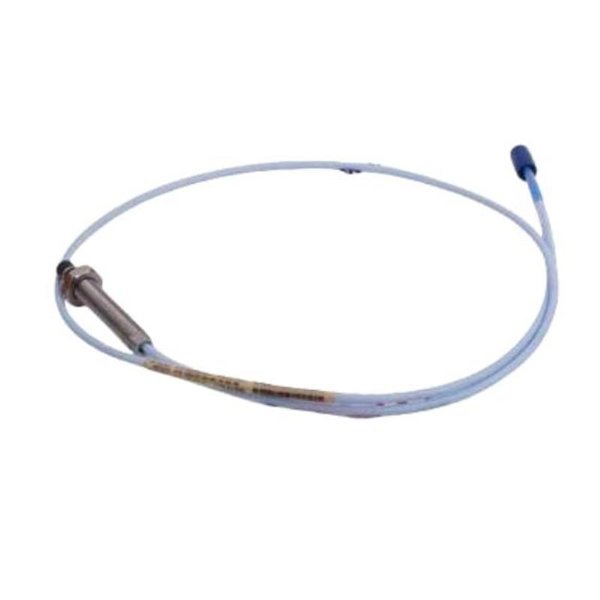

Bently Nevada 330102-24-72-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-24-72-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for monitoring the position of rotating machinery components, such as shafts and rotors. It is part of the 3300 XL Series, known for its robust construction, accurate performance, and long-lasting reliability in industrial environments. The probe works by detecting small shifts or vibrations in the machinery, offering real-time data for maintenance and early fault detection.

Technical Specifications

Applications

• Vibration Monitoring: Detects rotor displacements or eccentricity in rotating machinery.

• Condition Monitoring: Assists in monitoring the health of machinery, such as motors, turbines, and compressors.

• Preventive Maintenance: Helps in predictive maintenance by identifying signs of wear, misalignment, or imbalance early.

• Automation Systems: Works seamlessly with various control systems to integrate machinery diagnostics.

Advantages

1. High Accuracy: Provides precise and real-time measurements of machinery components, improving the overall efficiency of monitoring systems.

2. Durability: Built with high-quality stainless steel to withstand harsh industrial conditions and provide long-lasting performance.

3. Wide Operating Range: With a temperature range from -40°C to +120°C, it is suitable for a wide variety of industrial environments.

4. Ease of Integration: The probe is compatible with a variety of monitoring and control systems, allowing for smooth integration into existing setups.

5. Low Maintenance: The robust design and low wear rate reduce the frequency of maintenance interventions.

6. Reliable Signal Output: Consistent 4-20 mA or 0-10 V output signals ensure dependable and stable readings for accurate diagnostics.

FAQ

Q1: What type of signal does the 3300 XL 8 mm Proximity Probe provide?

A1: The probe outputs either a 4-20 mA or 0-10 V signal depending on the configuration, which can be used for both real-time monitoring and diagnostic purposes.

Q2: What is the recommended mounting procedure for this proximity probe?

A2: The probe should be mounted securely on a fixed part of the machine using the supplied mounting hardware, ensuring that it aligns correctly with the rotating component it is monitoring.

Q3: Can the 3300 XL 8 mm Proximity Probe be used in hazardous environments?

A3: Yes, the 3300 XL probe is designed for industrial environments, but it is important to verify the specific environment and check for compatibility with the required safety standards before installation.

Q4: What is the maximum distance at which the probe can detect a displacement?

A4: The probe is designed for short-range displacement detection, typically within a few millimeters of the machine component, depending on the specific setup.

Q5: Can the 3300 XL Proximity Probe be used with other Bently Nevada systems?

A5: Yes, the 3300 XL series is compatible with other Bently Nevada monitoring systems, offering flexibility for integration and use in a wide range of monitoring applications.

Q6: Is this probe sensitive to electromagnetic interference?

A6: The 3300 XL 8 mm Proximity Probe is engineered to resist electromagnetic interference, ensuring reliable performance even in electrically noisy environments.

Q7: How do I calibrate the 3300 XL proximity probe?

A7: Calibration is generally done through the Bently Nevada system that the probe is integrated with. Calibration ensures accurate displacement readings and should be done periodically.

Q8: Can this proximity probe be used in both horizontal and vertical machinery setups?

A8: Yes, the probe can be used in both horizontal and vertical setups, making it versatile for various types of machinery.

Q9: What is the recommended installation procedure for the probe?

A9: Ensure that the probe is securely attached to a stable and fixed point on the machinery, with the correct alignment to the rotating part. The probe should be installed according to the manufacturer’s instructions for optimal performance.

Q10: What kind of maintenance is required for the 3300 XL Proximity Probe?

A10: The probe requires minimal maintenance. However, periodic checks for proper alignment, signal integrity, and cleaning of the probe’s surface are recommended for continued optimal performance.
