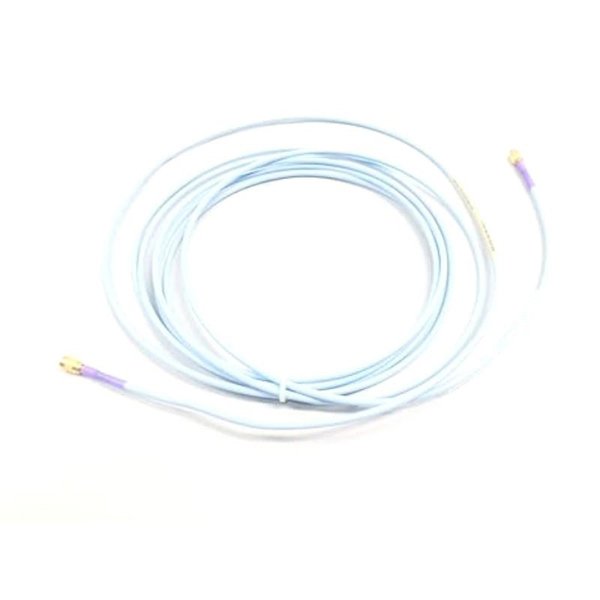

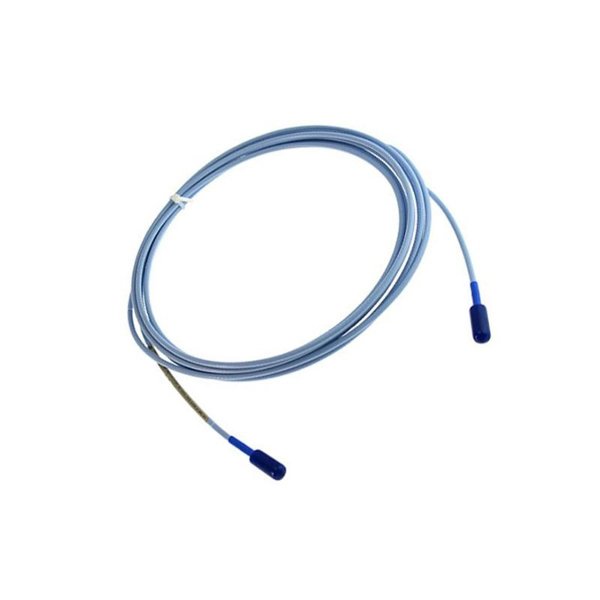

Bently Nevada 330730-040-02-00 3300 XL 11 mm Extension Cable

The Bently Nevada 330730-040-02-00 is a 3300 XL 11 mm Extension Cable designed for use with the Bently Nevada 3300 XL series of proximity transducer systems. This specific model features a total length of 4.0 meters, and plays a crucial role in connecting the proximity probe to the Proximitor® sensor, ensuring signal integrity, mechanical robustness, and system reliability over long distances.

Constructed with high-quality materials and built to endure the challenges of industrial environments, this extension cable guarantees a secure electrical pathway while offering exceptional resistance to mechanical stress, temperature fluctuations, and chemical exposure. Its MIL-style connectors and double-shielded design reduce electrical noise and signal loss, which is vital in high-precision vibration monitoring applications.

Engineered to complement 11 mm proximity probes, the 330730-040-02-00 extension cable ensures full compatibility with Bently Nevada’s machinery protection and condition monitoring systems. It is widely used in industries like power generation, petrochemical, oil & gas, and manufacturing where machine health monitoring is mission-critical.

Product Parameters

Product Applications

The 330730-040-02-00 Extension Cable is vital for environments where the proximity probe cannot be placed near the signal conditioning electronics. It supports a wide range of industrial monitoring systems:

• Gas & Steam Turbines: Used to connect large 11 mm proximity probes on rotating shafts to Proximitor® sensors mounted in cooler, accessible locations.

• Compressors & Pumps: Ensures accurate data transmission in environments where sensors must be remotely mounted due to temperature or vibration.

• Power Generation Plants: Integral for long-distance vibration monitoring of generators and turbine shafts in both fossil and renewable power plants.

• Refineries & Chemical Plants: Supports remote monitoring of high-risk, explosion-prone areas while keeping electronics safe.

• Heavy Manufacturing Equipment: Ideal for connecting probes in harsh machinery environments where vibration and heat are common.

• Offshore and Marine Applications: Suitable for use in corrosion-prone or space-restricted installations such as FPSOs, platforms, and engine rooms.

Product Advantages

• Reliable Signal Transmission: Maintains signal integrity over 4 meters, minimizing interference and voltage drop through double shielding.

• Industrial-Grade Durability: Withstands mechanical abrasion, oil exposure, and temperature extremes from -51°C to +177°C, ensuring performance longevity.

• Electromagnetic Interference (EMI) Protection: The dual-layer shielding provides superior resistance to noise in electrically noisy environments like motor control rooms.

• Flexible Routing: The cable is pliable enough for tight routing within cabinets or cable trays, while maintaining its mechanical integrity.

• High Compatibility: Specifically designed for 11 mm proximity probe systems, ensuring plug-and-play compatibility with Bently Nevada 3300 XL Proximitor® systems.

• Reduced Downtime: Easy to install and replace, minimizing machine unavailability during maintenance or upgrade cycles.

• Certified for Safety and Quality: Fully compliant with CE and RoHS, manufactured under ISO 9001 quality standards.

• Compact and Lightweight: With a weight of just 0.18 kg, it’s easy to manage during installation even in elevated or hard-to-reach areas.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the 330730-040-02-00 cable?

A1: It extends the connection between a Bently Nevada 11 mm proximity probe and a Proximitor® sensor, ensuring accurate vibration and position signal transmission.

Q2: How long is the cable?

A2: The total length of this extension cable is 4.0 meters.

Q3: What type of connector is used on this cable?

A3: It features MIL-C-5015 style 3-pin male and female connectors.

Q4: Is this cable compatible with all Bently Nevada proximity probes?

A4: It is specifically designed for use with 3300 XL 11 mm proximity probe systems and associated Proximitor® sensors.

Q5: What is the operating temperature range of the cable?

A5: The cable can operate reliably from -51°C to +177°C.

Q6: Does this cable have EMI shielding?

A6: Yes, it has double shielding (foil and braided shield) to protect against electromagnetic interference.

Q7: What material is used for the cable jacket?

A7: The outer jacket is made from Teflon (FEP), which is resistant to abrasion, chemicals, and oils.

Q8: Can this cable be used in marine or offshore environments?

A8: Yes, the cable is corrosion-resistant and suitable for harsh environments like offshore platforms and marine engines.

Q9: What is the cable’s weight?

A9: The 4-meter cable weighs 0.18 kg, making it easy to handle and install.

Q10: What certifications does this extension cable have?

A10: It is CE, RoHS, and ISO 9001 certified, meeting global standards for safety and quality.
