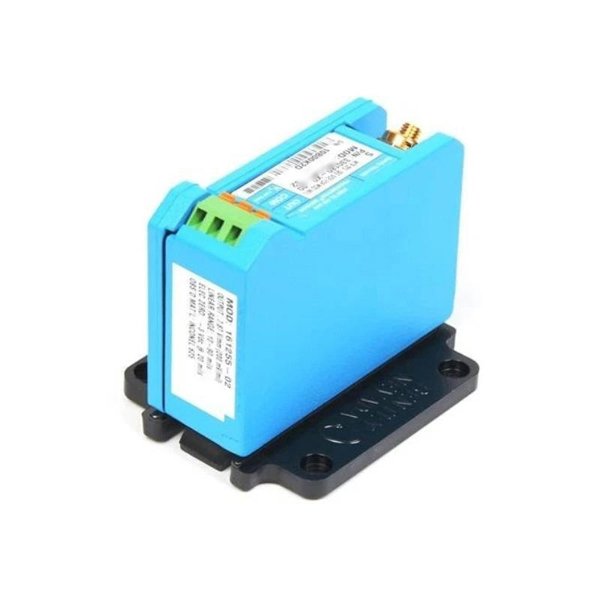

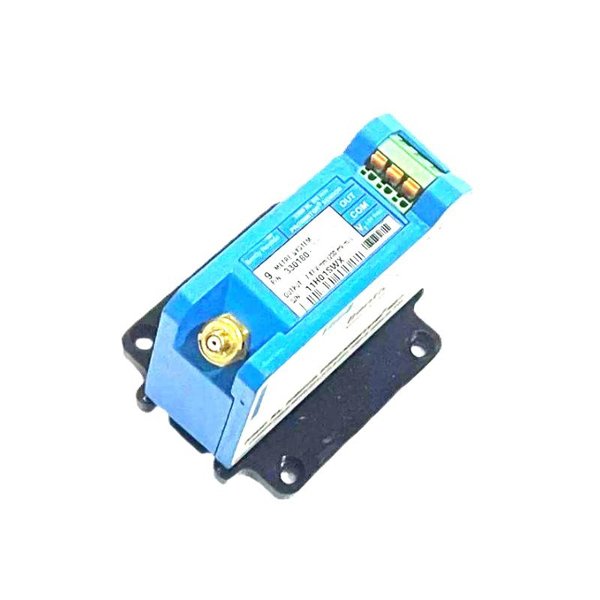

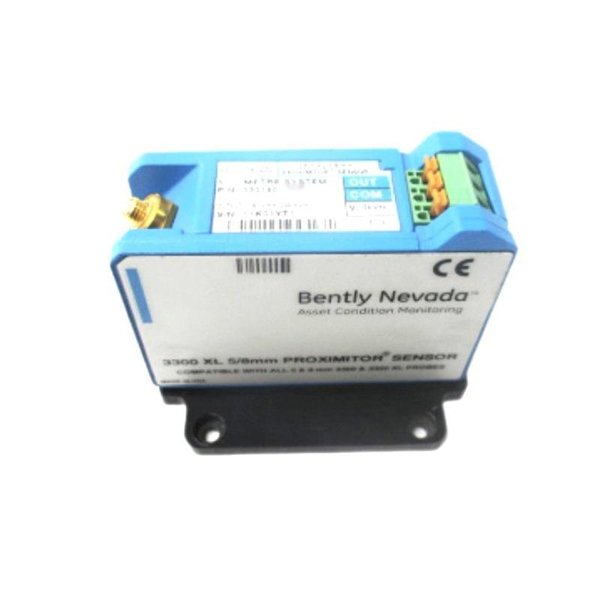

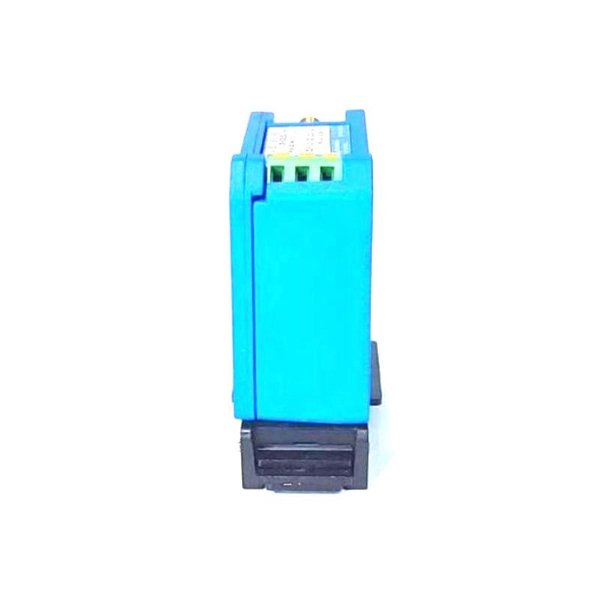

Bently Nevada 330180-X1-CN 145004-67 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-X1-CN 145004-67
Product Type:3300 XL Proximitor Sensor
Origin:USA
Dimensions:81.3 x 35.1 x 63.5 mm
Weight:0.246 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-X1-CN 145004-67 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, engineered for precise vibration and position measurement on fluid-film bearing machines. It delivers a voltage output proportional to the distance from the probe tip to the conductive target surface and is fully compliant with API 670 standards.
Its modular design ensures interchangeability with other 3300-series 5 mm and 8 mm systems, reducing downtime and simplifying maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max consumption |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Minimum Target Size | 15.2 mm diameter |
| Material (Housing) | A308 aluminum |
| Mounting Options | Panel mount, DIN-rail mount, or no hardware |
Applications
Vibration Monitoring for turbines, compressors, and pumps
Shaft Position Measurement in fluid-film bearing machinery
Keyphasor Reference for phase and speed measurements
Overspeed Protection when used per application guidelines
Integration into API 670 compliant monitoring systems
Advantages
High Interchangeability – Works with both XL and non-XL 3300-series components
Enhanced RFI/EMI Immunity – Suitable for use without metallic housings
Tool-Free SpringLoc Terminal Strips – Fast, reliable wiring connections
ClickLoc Gold-Plated Connectors – Corrosion resistance and secure fitting
Extended Temperature Range Options – Withstands up to +260°C with ETR cables
Compact Mounting – DIN-rail and panel mount compatibility for space efficiency
FAQ
Q1: What is the primary function of the 330180-X1-CN Proximitor Sensor?
A1: It measures vibration and shaft position by detecting changes in the gap between a probe and a conductive surface.
Q2: Does it comply with API 670 standards?
A2: Yes, it fully meets API 670 requirements for linear range, accuracy, and temperature stability.
Q3: Can it be used with both 5 mm and 8 mm probes?
A3: Yes, it is compatible with 3300-series 5 mm and 8 mm probes and extension cables.
Q4: What is the recommended operating gap?
A4: The recommended gap is approximately 1.27 mm (50 mils).
Q5: Is it suitable for hazardous area installations?
A5: Yes, it has multiple hazardous area approvals including CSA, ATEX, and IECEx certifications.
Q6: How is wiring connected?
A6: Through SpringLoc terminal strips, allowing tool-free installation.
Q7: What frequency range does it support?
A7: 0 to 10 kHz with minimal signal degradation.
Q8: Can it be installed without metallic housings?
A8: Yes, thanks to its improved RFI/EMI immunity, it can be installed in fiberglass housings.
Q9: What is the housing material?
A9: A308 aluminum for durability and corrosion resistance.
Q10: Is calibration available for materials other than AISI 4140 steel?
A10: Yes, calibration for other target materials is available on request.
