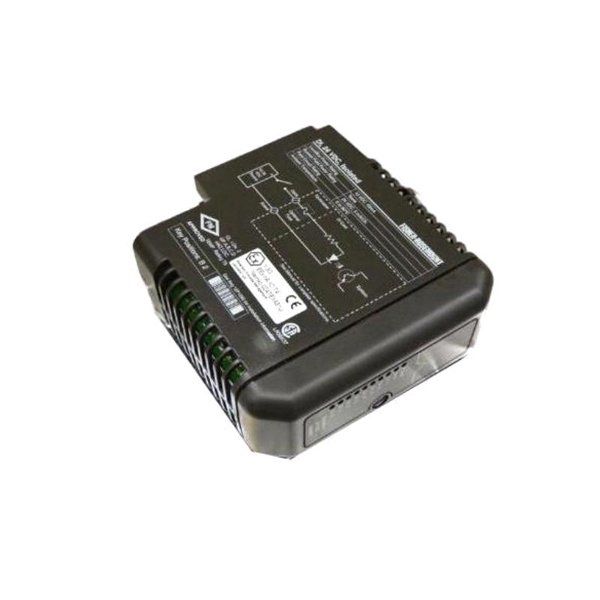

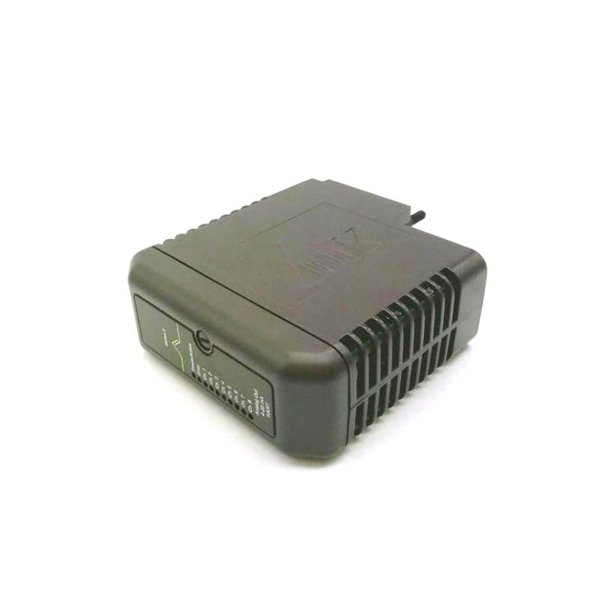

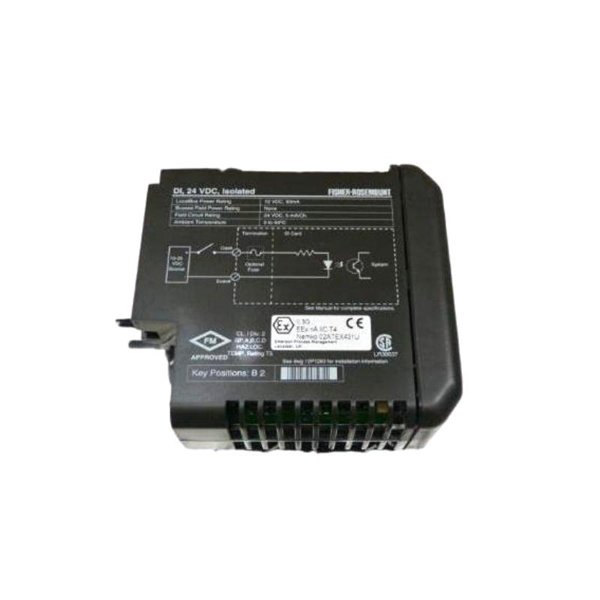

Emerson KJ3001X1-BA1 12P0549X112 Isolated Discrete Input Module

The Emerson KJ3001X1-BA1 12P0549X112 Isolated Discrete Input Module is an advanced industrial control component designed to provide reliable and precise input data to the Emerson DeltaV system. This module offers galvanic isolation for each input channel, enhancing the protection against noise and power surges that could affect the control system. With 16 input channels, the module is capable of monitoring a variety of field devices and sensors, allowing for accurate and timely process control.

This module is designed to function in demanding environments and integrates seamlessly with Emerson’s DeltaV distributed control systems (DCS) to ensure stable and high-performance operations in industries like chemical processing, oil and gas, pharmaceuticals, and power generation.

Key Features

• 16 isolated discrete input channels for various field devices.
• Galvanic isolation for each input to minimize interference.
• Compatible with Emerson DeltaV DCS for system integration.
• Universal input types, including 24V DC dry contact inputs, widely used in industrial applications.
• Compact design for easy integration into control panels.

Product Specifications

Applications

The Emerson KJ3001X1-BA1 12P0549X112 Isolated Discrete Input Module is widely used across industries that require robust and reliable input signals from field devices to ensure proper operation of control systems. Its applications include:

• Chemical processing: Monitoring the status of valves, switches, and sensors.
• Oil and gas: Ensuring operational integrity by monitoring emergency shut-down devices and critical equipment.
• Power generation: Collecting data from control devices to manage complex systems effectively.
• Pharmaceuticals: Ensuring precise control of automated processes and devices.

Advantages

1. Isolation for Safety and Reliability: The isolated input channels provide better protection from electrical surges, reducing the risk of system malfunction.
2. Broad Compatibility: Works seamlessly with Emerson DeltaV systems, offering enhanced integration with existing automation setups.
3. Compact and Space-Saving Design: Its small size makes it ideal for use in cramped control panels and spaces.
4. Wide Input Voltage Range: It can accept a broad range of input signals (0-30V), allowing it to interface with a variety of field devices.
5. Durability: Built to withstand tough industrial environments, this module has an extended operational temperature range and is highly resistant to environmental factors.
