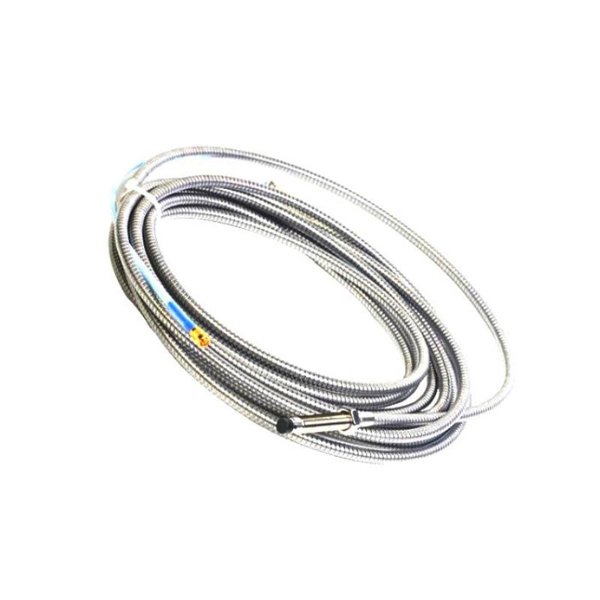

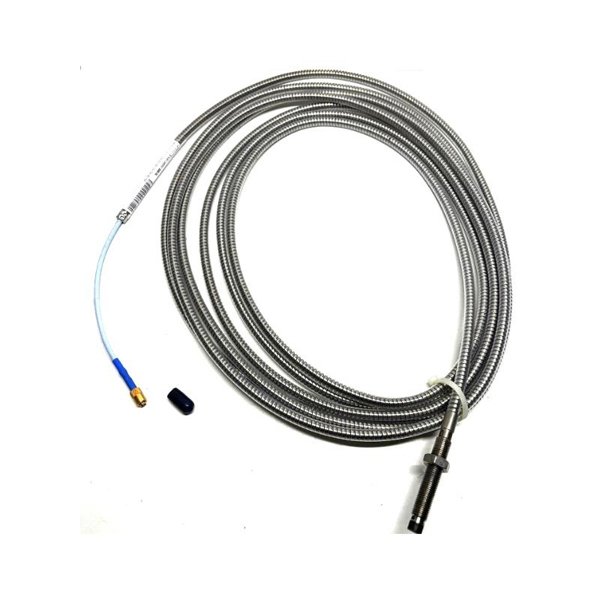

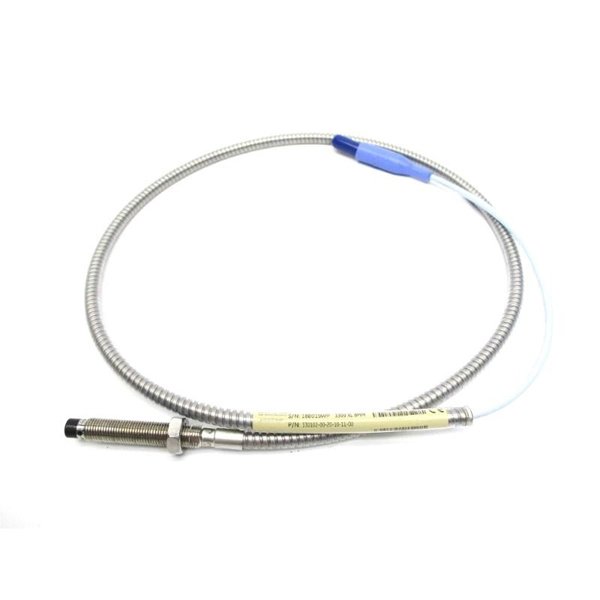

Bently Nevada 330102-05-20-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-05-20-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-05-20-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for high-accuracy vibration and position measurements in fluid-film bearing machines. Featuring armored construction for harsh environments, it offers advanced linearity, robustness, and full compliance with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330102-05-20-10-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe (armored) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | -52°C to +177°C (-62°F to +350°F) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position and radial vibration measurements
-
Keyphasor reference and speed measurements
-
Suitable for hazardous environments
Advantages
-
API 670 compliance ensures reliability
-
Armored construction for mechanical protection
-
Interchangeable with 3300 and XL series components
-
High immunity to RFI/EMI, suitable for harsh industrial conditions
-
SpringLoc connectors for fast, secure installation
FAQ
Q1: What is the typical application of this probe?
A1: It’s mainly used for vibration and position monitoring in rotating machinery with fluid-film bearings.
Q2: Is the probe compliant with API 670?
A2: Yes, the probe and the system comply fully with API 670 mechanical and performance standards.
Q3: Can it be used in hazardous environments?
A3: Yes, it is approved for use in hazardous areas with proper barriers and installation.
Q4: Is it backward compatible with older Bently Nevada systems?
A4: Yes, it is compatible with non-XL 3300 8 mm and 5 mm components.
Q5: Does it require calibration in the field?
A5: No, components are factory calibrated and interchangeable without field calibration.
Q6: What is the recommended minimum shaft diameter?
A6: The minimum recommended shaft diameter is 76.2 mm (3 in) for radial measurements.
Q7: What’s the maximum operating temperature?
A7: The standard probe operates up to 177°C (350°F).
Q8: What is the significance of the armored cable?
A8: The armor protects the cable from mechanical damage and improves durability.
Q9: How is the connection secured?
A9: The probe uses ClickLoc connectors that click into place and do not require tools.
Q10: What is the linear measurement range?
A10: The linear range is approximately 2 mm (80 mils) from 0.25 to 2.3 mm gap.
