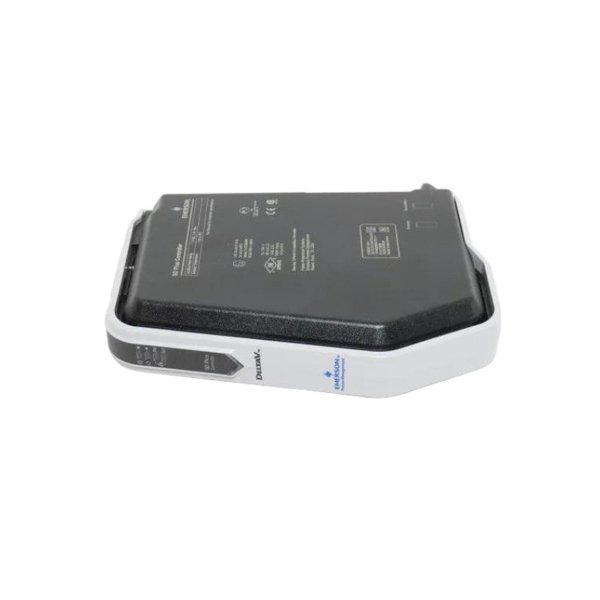

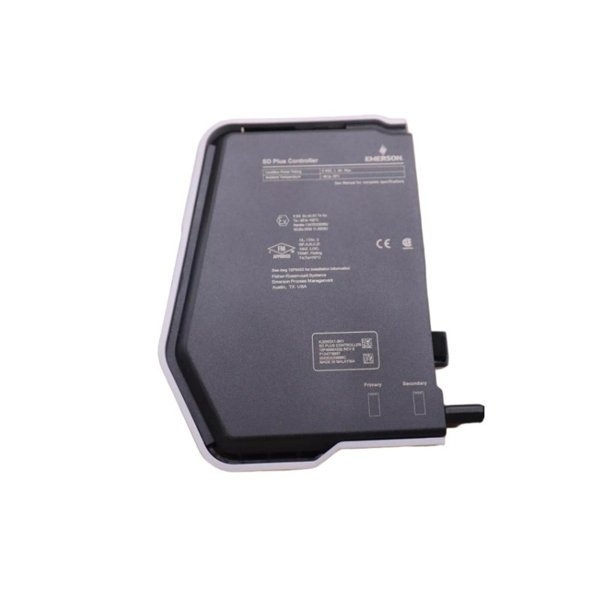

Emerson SE3006 KJ2003X1-BK1 SD PLUS Controller

The Emerson SE3006 KJ2003X1-BK1 SD PLUS Controller is part of Emerson’s SD PLUS series, providing a high-performance, modular control solution designed to meet the demanding needs of modern industrial automation. The SD PLUS controller is built to offer enhanced functionality and scalability for process control, ensuring reliability and flexibility in various applications.

The controller is engineered with advanced features to optimize operational efficiency and increase uptime across complex systems. The Emerson SE3006 series integrates seamlessly with other Emerson systems, offering powerful monitoring, control, and diagnostics features in one compact solution.

Product Specifications

Applications

The Emerson SE3006 KJ2003X1-BK1 SD PLUS Controller is widely applicable in industries requiring precise, reliable control systems. Key applications include:

• Oil and Gas: Used for monitoring and controlling drilling rigs, pipelines, and production facilities.

• Power Generation: Essential for power plants, managing turbines, and optimizing grid synchronization.

• Chemical Processing: Enables accurate control over chemical reactions, mixing, and temperature regulation.

• Manufacturing Automation: Provides control for assembly lines, packaging, and other production processes.

• Water and Wastewater Treatment: Controls pumps, valves, and sensors to ensure efficient water treatment and distribution.

Advantages

• Scalability: The SD PLUS controller’s modular design allows for easy expansion, adapting to growing systems with minimal changes to existing setups.

• High Performance: With enhanced processing power, it ensures quick response times and accurate control for industrial automation.

• Versatile Communication Options: Supporting both Modbus RTU and Ethernet (optional), the SD PLUS controller is compatible with various devices and systems for comprehensive data exchange.

• Seamless Integration: Easily integrates with other Emerson devices, enabling a unified control and monitoring system for large-scale automation networks.

• Compact Design: Despite its high-performance features, the SE3006 is compact and ideal for space-constrained environments, ensuring efficient use of available space.

• Reliability and Robustness: Built for industrial environments, it offers high durability, ensuring stable operations even in harsh conditions.

• Real-time Diagnostics: Continuous monitoring and diagnostic capabilities allow operators to address issues before they affect system performance, reducing downtime.

FAQ

1. What is the maximum I/O capability of the SE3006 SD PLUS Controller?

The Emerson SE3006 KJ2003X1-BK1 SD PLUS Controller supports 16 input and 16 output points, making it suitable for moderate to large-scale automation systems.

2. Which communication protocols does the SE3006 support?

The SE3006 supports Modbus RTU and optional Ethernet communication protocols, ensuring compatibility with a wide range of industrial devices.

3. Can the SE3006 be used in harsh outdoor environments?

No, the SE3006 has an IP20 rating, which means it is designed for indoor use only. It is protected against dust and moisture but not suitable for exposure to direct environmental elements.

4. How does the SE3006 perform in terms of real-time diagnostics?

The SE3006 SD PLUS provides real-time diagnostics and status monitoring via LED indicators, enabling operators to detect issues promptly and optimize system performance.

5. What are the power requirements for the SE3006?

The SE3006 operates on a 24V DC power supply, a standard voltage for many industrial automation controllers.

6. Can the SE3006 be integrated with other Emerson systems?

Yes, the SE3006 is fully compatible with other Emerson automation products, making it an ideal choice for creating a unified control system across different components and devices.

7. What industries commonly use the SE3006 SD PLUS Controller?

The SE3006 is widely used in industries such as oil & gas, chemical processing, manufacturing, water treatment, and power generation, providing critical control and monitoring functions.

8. Is the SE3006 SD PLUS suitable for small-scale systems?

Yes, despite its ability to handle complex systems, the SE3006 is also scalable, making it suitable for smaller systems that require a compact, reliable controller.

9. What temperature range can the SE3006 operate in?

The SE3006 operates in temperatures ranging from -10°C to +60°C, making it suitable for most industrial environments.

10. How is the SE3006 mounted?

The SE3006 SD PLUS Controller is designed for DIN rail mounting, providing a quick and efficient installation process in industrial settings.
